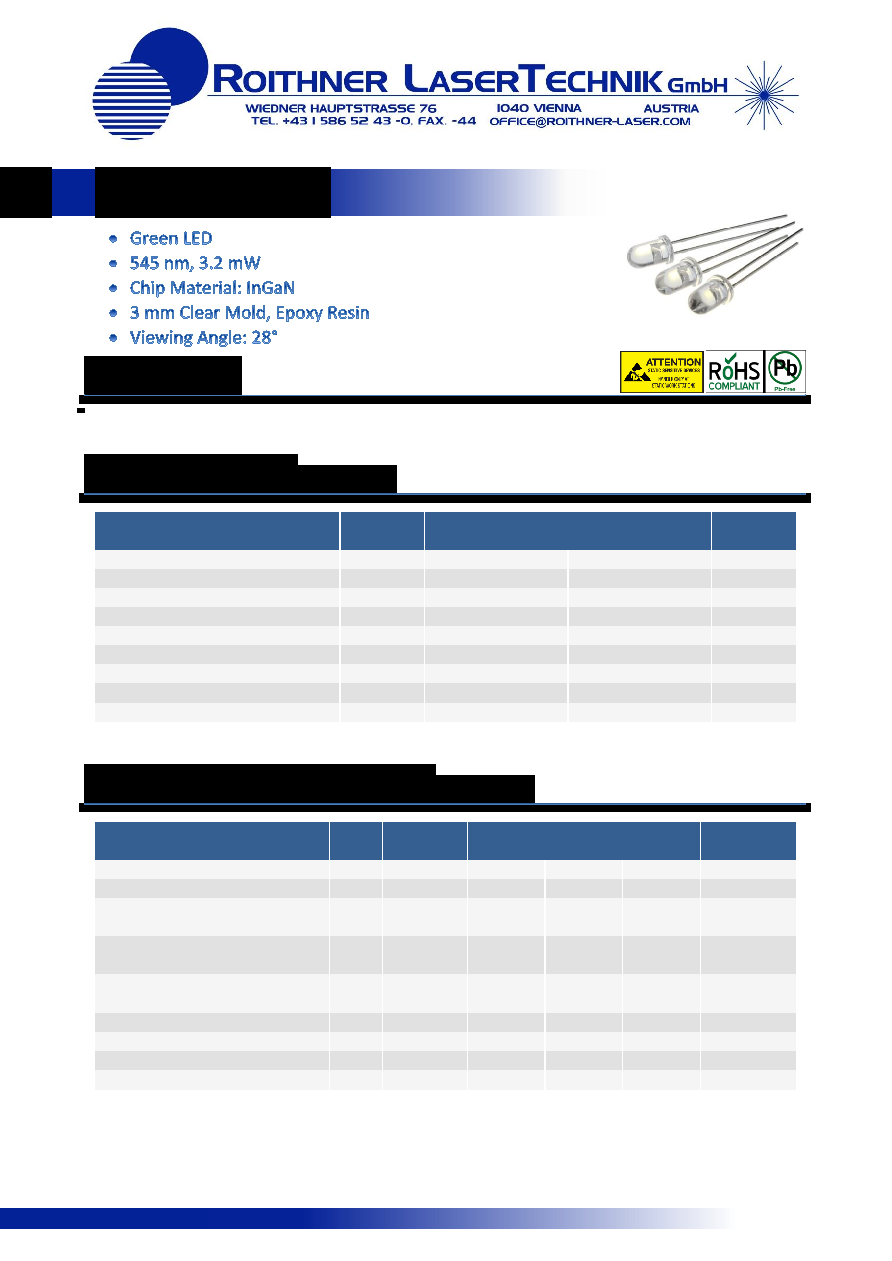

1 / 4 page

www.roithner-laser.com

1

LED545-33

v 1.1 30.08.2017

Description

LED545-33 contains a InGaN LED mounted on a lead frame hermetically sealed with a clear epoxy lens.

On forward bias, it emits a power radiation of typical 3.2 mW at a peak wavelength at 545 nm.

Maximum Ratings (T

CASE

=25°C)

Parameter

Symbol

Values

Min.

Max.

Unit

Power Dissipation

PD

190

mW

Forward Current

IF

50

mA

Pulse Forward Current *1

IFP

100

mA

Reverse Voltage

VF

5

V

Thermal Resistance

RTHJA

300

K/W

Junction Temperature

TJ

120

°C

Operating Temperature

TCASE

- 40

+ 100

°C

Storage Temperature

TSTG

- 40

+ 100

°C

Lead Solder Temperature *2

TSLD

+ 265

°C

*1 duty=1%, pulse width = 10 µs

*2 must be completed within 3 seconds

Electro-Optical Characteristics (T

CASE

=25°C)

*1 measured by S3584,08

*2 measured by CIE127-2007 Condition B

Parameter

Symbol Conditions

Values

Min.

Typ.

Max.

Unit

Peak Wavelength

λP

IF=20mA

535

555

nm

Half Width

∆λ

IF=20mA

39

nm

Forward Voltage

VF

IF=20mA

3.4

3.8

V

VFP

IFP=100mA

4.3

Radiated Power *1

PO

IF=20mA

3.2

mW

IFP=100mA

11

Radiant Intensity *2

IE

IF=20mA

21

mW/sr

IFP=100mA

76

Luminous Flux

ΦV

IF=20mA

2200

mlm

Viewing Angle

φ

IF=20mA

28

deg.

Rise Time

tR

IF=20mA

15

ns

Fall Time

tF

IF=20mA

30

ns
