A

H

B

G

3

2

4

1

SCALE

2:1 WEIGHT

-

SHEET

1/1

SIZE

A3

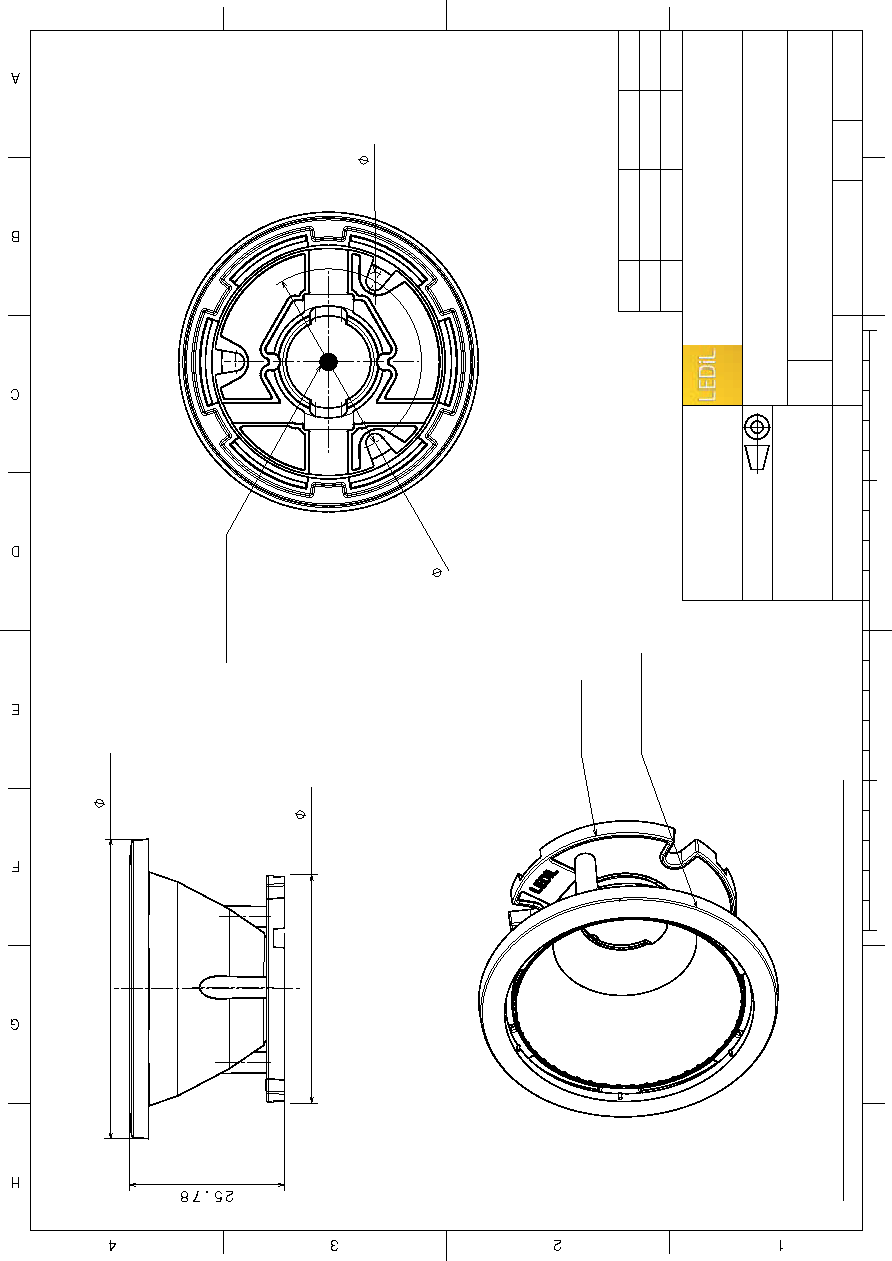

DRAWING TITLE

DATA SHEET MIRELLA-PF-SOCKET-VERO10

PART NUMBER

-

Ledil Oy

Salorankatu 10

FIN 24240 SALO

Finland

THIRD ANGLE PROJECTION:

This drawing is the property

of LEDiL Oy. It may not be

reproduced, copied or

communicated without a written

agreement with LEDiL Oy.

INDEX PART NO MATERIAL COLOUR

1

Socket

PC

White

2

Reflector

PC

Metal

31

LED position

3

3 8

49 . 9

Socket

Reflector

NOTE: It is recommended to use glue like DELO-PUR 9895 for pin fastening.

http://www.delo.de/fileadmin/datasheet/DELO-PUR_9895_(TIDB-GB).pdf

Tolerances if not otherwise shown

According to DIN ISO 2768-1

Linear measures:

up to 30mm class M, otherwise class C

According to DIN ISO 2768-2

Form and position: class L
