Part No. : LTL-R42M12NH51

BNS-OD-FC002/A4

Through Hole Lamp

LTL-R42M12NH51

1. Description

CBI (Circuit Board Indicator) is a black plastic right angle Holder (Housing) which mates with Lite-On LED lamps. Lite-On CBI is

available in a wide variety of packages, including top-view (Spacer) or right angle and horizontal or vertical arrays which is

stackable and easy to assembly.

1. 1. Features



Designed for ease in circuit board assembly.



Black case enhance contrast ratio.



Low power consumption & High efficiency.



Lead free product & RoHS Compliant.



T-1 lamp: emitted colors are red/green, yellow green

and InGaN blue color.

1.2. Applications



Computer



Communication



Consumer



Industrial

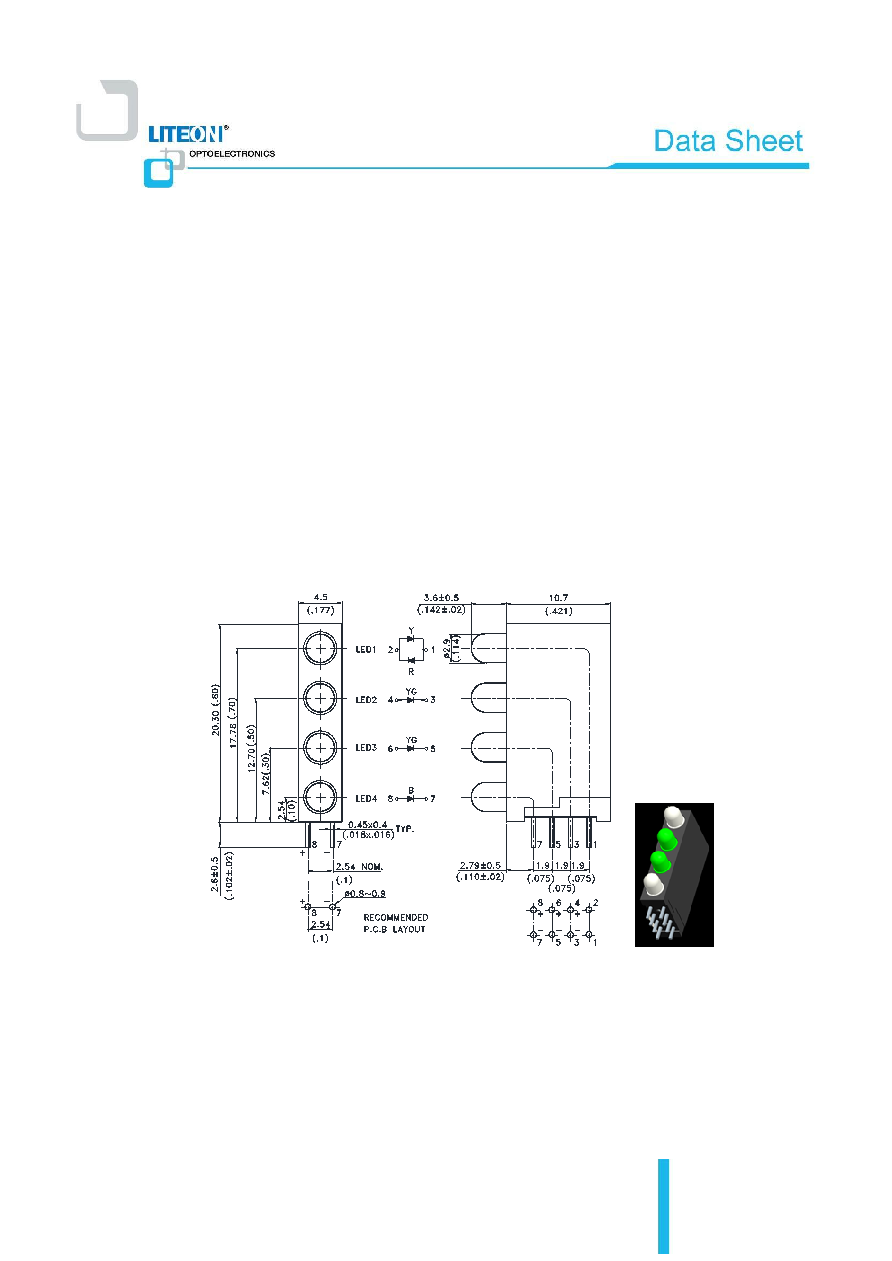

2. Outline Dimensions

Notes :

1. All dimensions are in millimeters (inches).

2. Tolerance is ±0.25mm (.010") unless otherwise noted.

3. The Holder (Housing) material is plastic black.

4. LED1 is red/yellow bi-color with white diffused Lens; LED2,3 are yellow green color with green diffused Lens;

LED4 is blue color with white diffused Lens.

Specifications are subject to change without notice.
