2SB1308-R Datasheet(PDF) 1 Page - Micro Commercial Components |
|
|
|||||||||||||||||||||||||||||
2SB1308-R Datasheet(HTML) 1 Page - Micro Commercial Components |
|
|

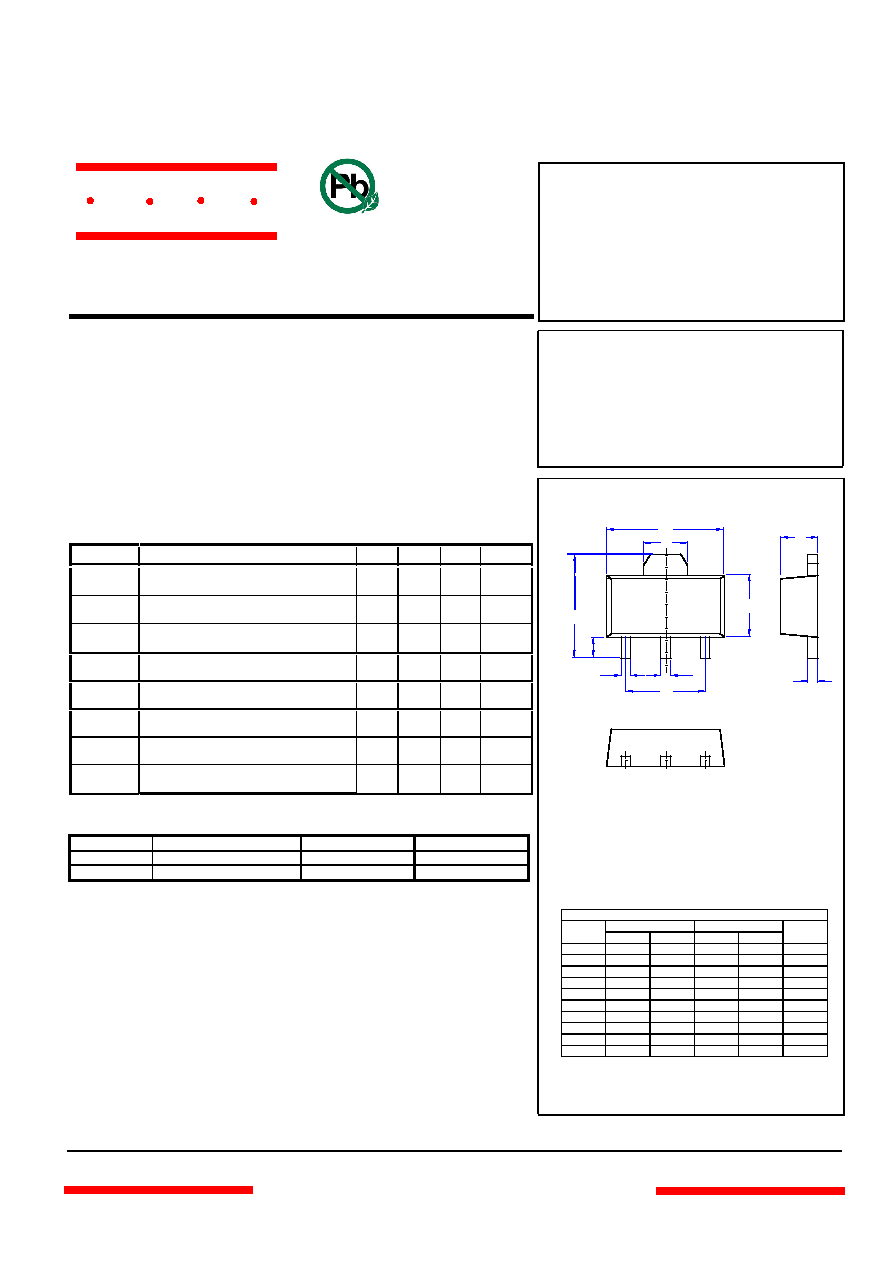

1 / 2 page  2SB1308-P PNP Plastic-Encapsulate Transistors 25 SOT-89 omponents 20736 Marilla Street Chatsworth !"# $% !"# MCC www.mccsemi.com 1 of 2 CLASSIFICATION OF hFE Rank P Q R Range 82-180 120-270 180-390 Marking BFP BFQ BFR 1.BASE 2.COLLECTOR 3.EMITTER • Power dissipation: PCM = 0.5W(Tamb=25 ) • Collector current: ICM = -3A • Collector-base voltage: V(BR)CBO = -30V • Operating and storage junction temperature range TJ, Tstg: -55 to + 150 Electrical Characteristics @ 25 Unless Otherwise Specified Symbol Parameter Min Typ Max Unit VCEO Collector-Emitter Voltage (IC=-50 A, IE=0) -20 --- --- V VCBO Collector-Base Voltage (IC=-1mA, IB=0) -30 --- --- V VEBO Emitter-Base Voltage (IE=-50 A, IC=0) -6.0 --- --- V ICBO Collector cut-off Current (VCB=-20V, IE=0) --- --- -0.5 A IEBO Emitter cut-off Current (VEB=-5V, IC=0) --- --- -0.5 A hFE DC current gain (VCE=-2V, IC=-0.5A) 82 --- 390 --- VCE(sat) Collector-Emitter Saturation Voltage (IC=-1.5A, IB=-0.15A) fT Transition Frequency (VCE=-6.0Vdc, IC=-50mAdc,f=30MHz) --- --- -0.45 50 --- --- MHz V Features B A E D G H F K J C 1 2 3 2SB1308-Q 2SB1308-R • Lead Free Finish/RoHS Compliant ("P" Suffix designates RoHS Compliant. See ordering information) • Epoxy meets UL 94 V-0 flammability rating • Moisure Sensitivity Level 1 TM Micro Commercial Components Revision: C 2014/11/17 Halogen free available upon request by adding suffix "-HF" • |
