Manufacturer of Passive Components

800-684-5322 Inside US

949-453-1811 Outside US

Copyright © 2015 by CT Magnetics, DBA Central Technologies. All rights reserved.

CT Magnetics reserves the right to make improvements or change specifications without notice

REV 10.01.15

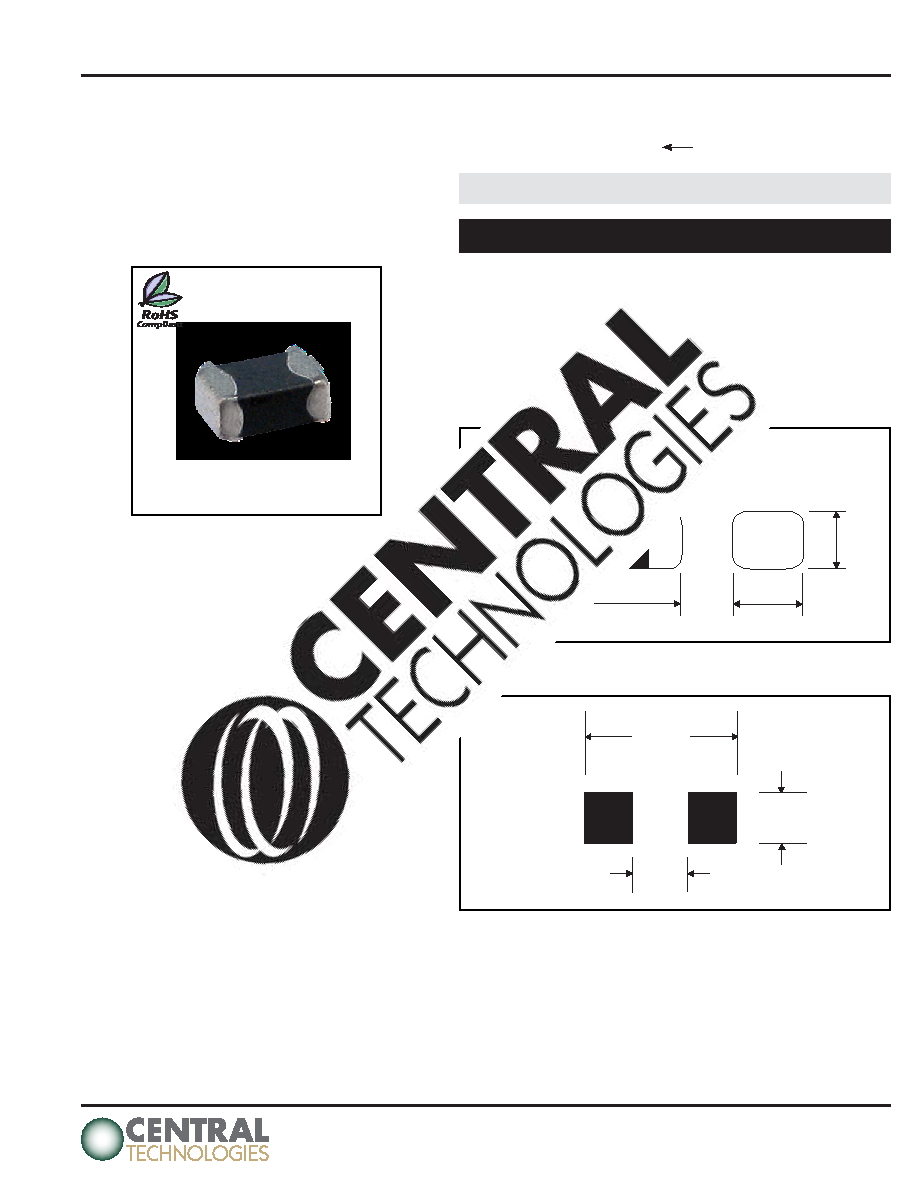

CTMLP060302F

Series

From 0.47µH to 2.2µH

SPECIFICATIONS

DCR

Isat

Irms

Part

Inductance

Test

±25%

Max.

Max.

Number

(µH)

Frequency

(

W)

(mA)

(mA)

CTMLP060302F-R47_

0.47

3.0MHz, 200mV

0.15

420

1200

CTMLP060302F-1R0_

1.0

3.0MHz, 200mV

0.20

180

1200

CTMLP060302F-1R5_

1.5

3.0MHz, 200mV

0.22

130

1000

CTMLP060302F-2R2_

2.2

3.0MHz, 200mV

0.24

100

1000

Not Shown at Actual Size

CHARACTERISTICS

PHYSICAL DIMENSIONS

PAD LAYOUT

Description: SMD Multi-layer Power Chip Inductor. Magnetically

shielded.

Applications: Cellular phones, Power modules, DC/DC

converters, Digital cameras, DVD, Portalble devices, etc.

Operating Temperature: -55°C to 125°C (including self - temp.

rise).

Isat: Inductance drop 30% from its value with current.

Irms: 40°C temperature rise from 25°C ambient with current.

Inductance Tolerance: ±20% (M), ±30% (N)

Packaging: Tape & Reel.

Additional Information: Additional electrical & physical

information available upon request.

Samples available. See website for ordering information.

A

B

D

C

Ferrite

D

Terminal

Electrode

1.8~2.0

0.6~0.8

0.7~0.8

A

B

C

D

1.6 ± 0.15

0.8 ± 0.15

0.5 ± 0.05

0.3 ± 0.2

0.063 ± 0.006

0.031 ± 0.006

0.020 ± 0.002

0.012 ± 0.008

Size

mm

inches

Unit: mm

Please specify tolerance code when ordering.

CTMLP060302F-R47_

M = ±20%, N = ±30%
