MP3331-2A SYNCHRONOUS BOOST FLASH LED DRIVER WITH I
2C INTERFACE
MP3331 Rev. 1.02
www.MonolithicPower.com
9
5/3/2016
MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited.
© 2016 MPS. All Rights Reserved.

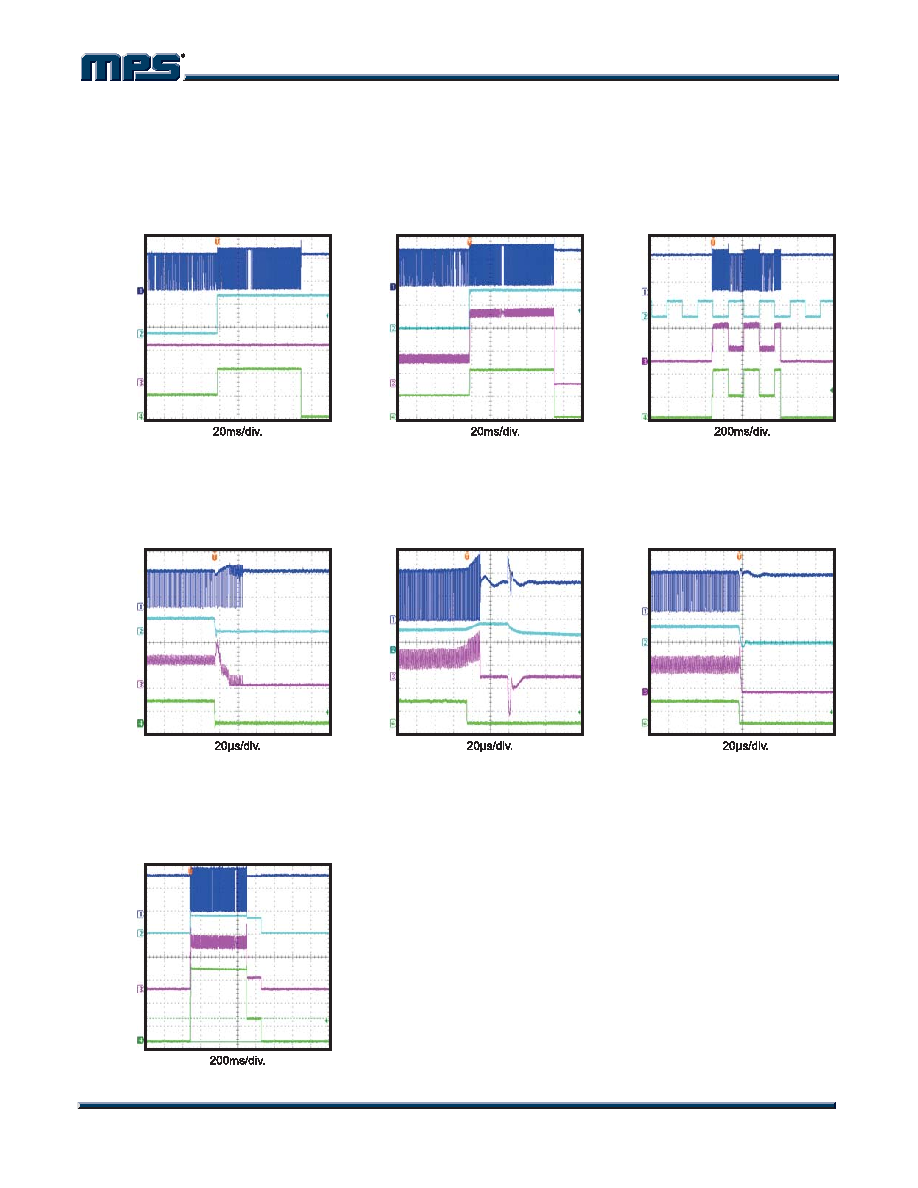

TYPICAL PERFORMANCE CHARACTERISTICS
(continued)
VIN = 3.3V, 1LED, FL_TIM = 100ms, L = 1µH, TA = 25°C, unless otherwise noted.
Torch to Flash Mode
ITOR=500mA, IFL=1A
Assist to Flash Mode
ITOR=500mA, IFL=1A
Flash Mode
TX Pin with 3Hz PWM Input
LED-GND
Short Protection
VSW
2V/div.
VLED
5V/div.
IL
500mA/div.
ILED
200mA/div.
VSW
2V/div.
VOUT
5V/div.
IL
1A/div.
ILED
500mA/div.
VSW
2V/div.
VOUT
5V/div.
IL
500mA/div.
ILED
500mA/div.
VSW
2V/div.
VOUT
5V/div.
IL
1A/div.
ILED
500mA/div.
VSW
2V/div.
TOR
2V/div.
STR
2V/div.
VSW
2V/div.
STR
2V/div.
ILED
500mA/div.
IL
500mA/div.
ILED
500mA/div.
VSW
2V/div.
TOR
5V/div.
IL
1A/div.
ILED
500mA/div.
LED Open Protection
VOUT-GND Pin
Short Protection
Junction Over-Temperature
Protection
In Flash Mode, TJ>130C
