FP2207R1-R230-R Datasheet(PDF) 6 Page - Vicor Corporation

Part # FP2207R1-R230-R
Description  30 ??60VIN Cool-Power ZVS Buck Regulator
PDF  41 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Manufacturer  VICOR [Vicor Corporation]
Direct Link  http://www.vicorpower.com
Logo VICOR - Vicor Corporation

FP2207R1-R230-R Datasheet(HTML) 6 Page - Vicor Corporation

Back Button FP2207R1-R230-R Datasheet HTML 2Page - Vicor Corporation FP2207R1-R230-R Datasheet HTML 3Page - Vicor Corporation FP2207R1-R230-R Datasheet HTML 4Page - Vicor Corporation FP2207R1-R230-R Datasheet HTML 5Page - Vicor Corporation FP2207R1-R230-R Datasheet HTML 6Page - Vicor Corporation FP2207R1-R230-R Datasheet HTML 7Page - Vicor Corporation FP2207R1-R230-R Datasheet HTML 8Page - Vicor Corporation FP2207R1-R230-R Datasheet HTML 9Page - Vicor Corporation FP2207R1-R230-R Datasheet HTML 10Page - Vicor Corporation Next Button
Zoom Inzoom in Zoom Outzoom out
 6 / 41 page
background image
Cool-Power® ZVS Switching Regulators
Rev 1.5
Page 6 of 41
03/2018
PI352x-00
VIN
VIN
VIN
VIN
VIN
VIN
VIN
VIN
VIN
VIN
VIN
VIN
VIN
VIN
VIN
VIN
VIN
VIN
VIN
VIN
VIN
VIN
VIN
VIN
VIN
VIN
VIN
VIN
VIN
VIN
PGND
PGND
PGND
PGND
PGND
PGND
PGND
PGND
PGND
PGND
VS1
VS1
VS1
VS1
VS1
VS1
VS1
VS1
VS1
VS1
PGND
PGND
PGND
PGND
PGND
SYNC0
TEST5
EN
SGND
PGND
PGND
PGND
PGND
SYNC1
PGND
PGND
PGND
PGND
PGND
PGND
PGND
PGND
PGND
PGND
PGND
PGND
PGND
PGND
PGND
PGND
PGND
PGND
PGND
PGND
PGND
PGND
VOUT
TEST2
SGND
SGND
SGND
SGND
SGND
SGND
SGND
VOUT
VDR
TEST1
TEST3
TEST4
PWRG0
SGND
SGND
EA0
EAIN
VDIFF
VSN
VSP
TRK
COMP
1
2
3
4
5
6
7
8
9
10
11
12
13
14

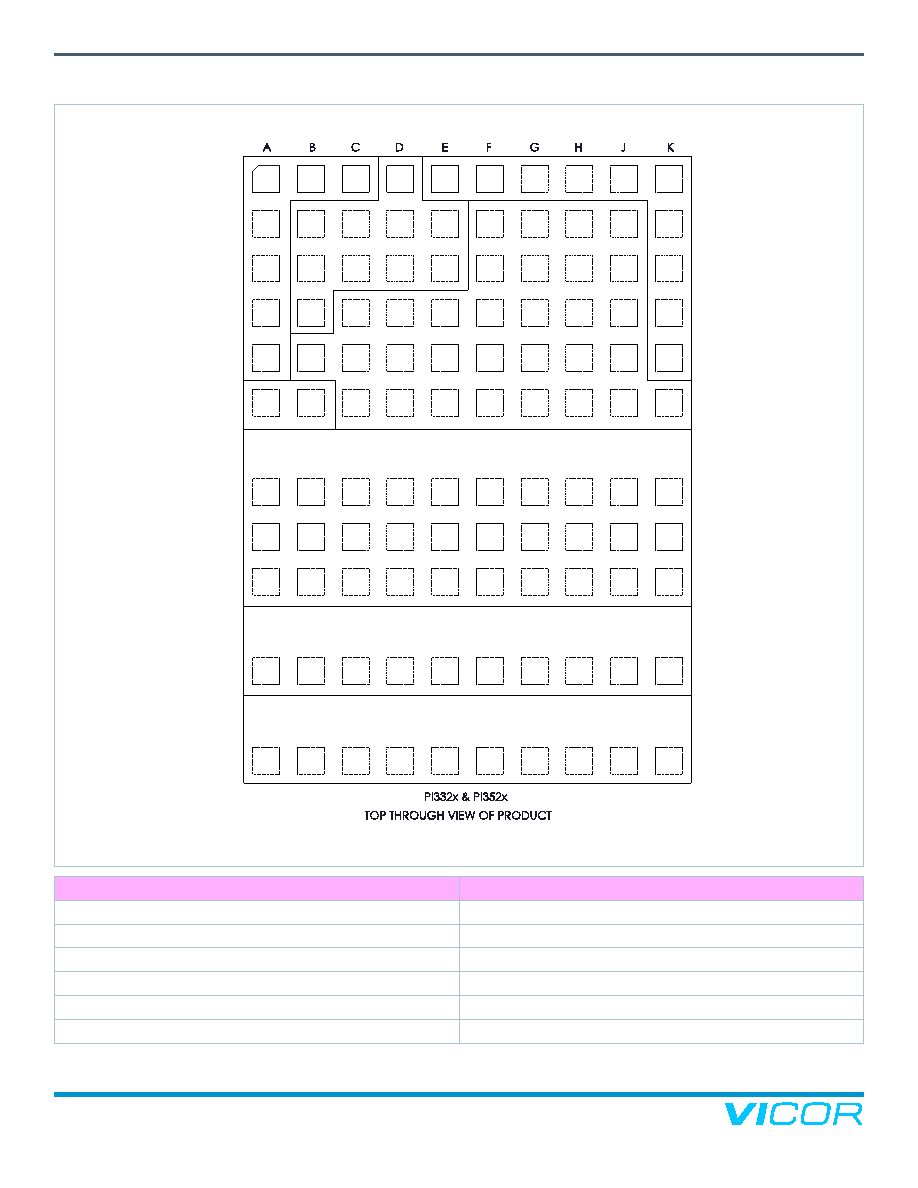

Package Pinout
Pin Block Name
Group of pins
VIN
A8-10, B8-10, C8-10, D8-10, E8-10, F8-10, G8-10, H8-10, J8-10, K8-10
VS1
A14, B14, C14, D14, E14, F14, G14, H14, J14, K14
PGND
A12, B12, C12, D12, E12, F12, G12, H12, J12, K12
PGND
B5, C4-6, D4-6, E4-6, F2-6, G2-6, H2-6, J2-6, K6
VOUT
A6, B6
SGND
B2-4, C2-3, D1-3, E2-3
