Data Sheet

ADA4304-2

Rev. A | Page 7 of 10

–8

–7

–6

–5

–4

–3

–2

–1

100

1000

4000

TA = –40°C

FREQUENCY (MHz)

TA = +85°C

TA = +25°C

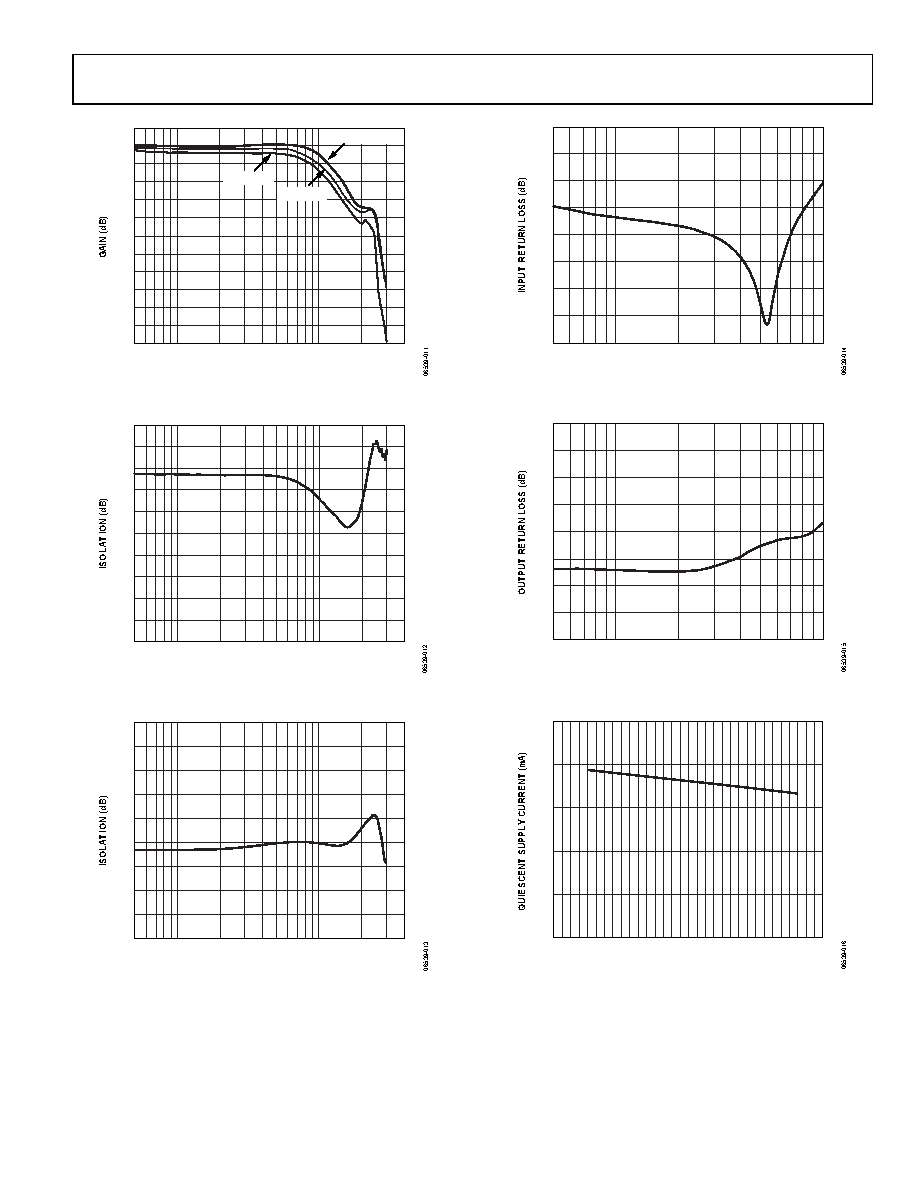

Figure 11. Gain (S21, S31) vs. Frequency

–40

–39

–38

–37

–36

–35

–34

–33

–32

–31

–30

100

1000

4000

FREQUENCY (MHz)

Figure 12. Output-to-Input Isolation (S12, S13) vs. Frequency

–45

–40

–35

–30

–25

–20

–15

–10

–5

100

1000

4000

FREQUENCY (MHz)

`Figure 13. Output-to-Output Isolation (S23, S32) vs. Frequency

–40

–35

–30

–25

–20

–15

–10

–5

100

1000

FREQUENCY (MHz)

Figure 14. Input Return Loss (S11) vs. Frequency

–40

–35

–30

–25

–20

–15

–10

–5

100

1000

FREQUENCY (MHz)

Figure 15. Output Return Loss (S22, S33) vs. Frequency

–60 –50 –40 –30 –20 –10 0 10 20 30 40 50 60 70 80 90 100

TEMPERATURE (°C)

Figure 16. Quiescent Supply Current vs. Temperature
