Data Sheet
ADA4304-2
Rev. A | Page 5 of 10

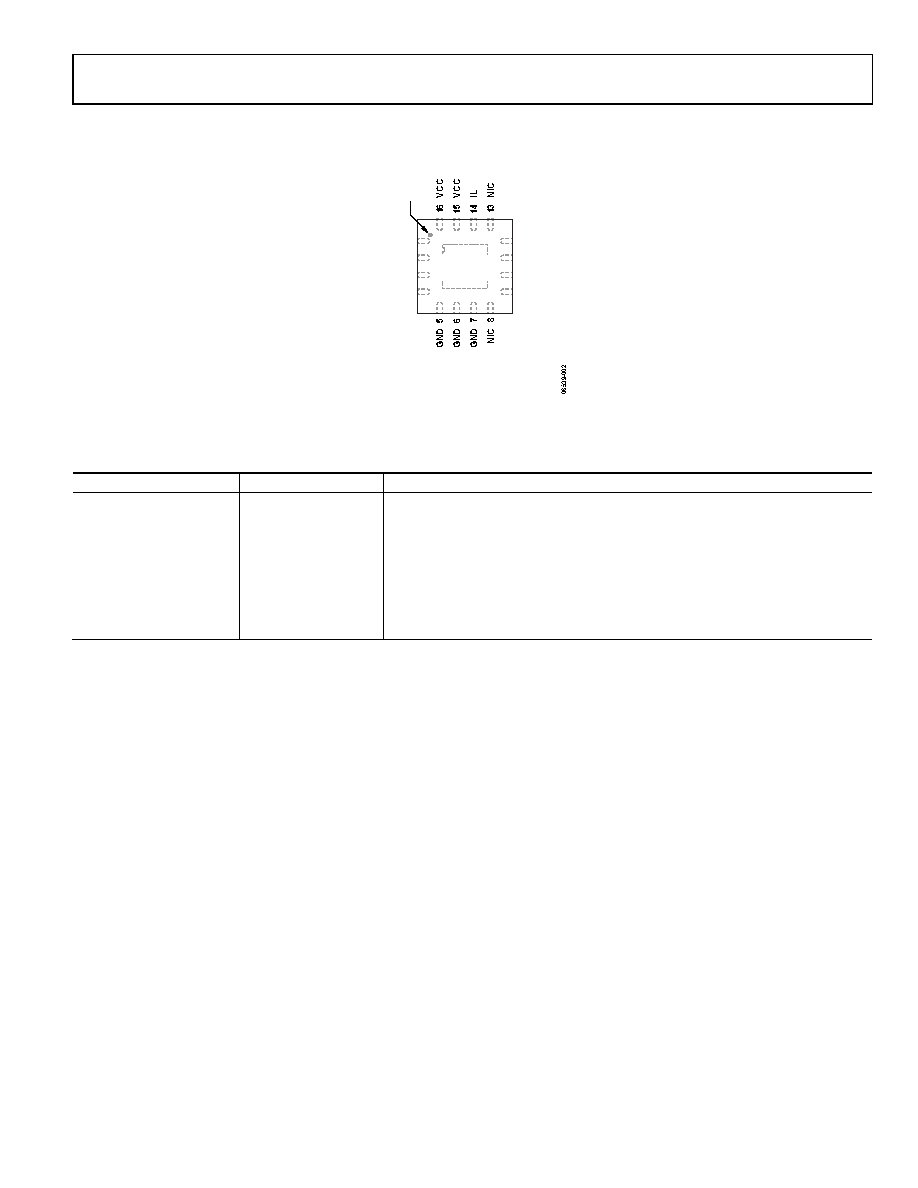

PIN CONFIGURATION AND FUNCTION DESCRIPTIONS
VCC
VCC
GND
VIN
GND
VOUT1
VOUT2
GND
PIN 1
INDICATOR
12
11
10
1
3
4
9
2
ADA4304-2
TOP VIEW
NOTES
1. NIC = NO INTERNAL CONNECTION.
2. THE EXPOSED PAD MUST BE
CONNECTED TO GND.
Figure 4. Pin Configuration
Table 4. Pin Function Descriptions
Pin No.
Mnemonic
Description
1, 2, 15, 16
VCC
Supply Pin.
3, 5 to 7, 9, 11
GND
Ground.
4
VIN
Input.
8, 13
NIC
No Internal Connection.
10
VOUT2
Output 2.
12
VOUT1
Output 1.
14
IL
Bias Pin.
EPAD
Exposed Pad. The exposed pad must be connected to GND.
