UNI SONI C TECHNOLOGI ES CO., LTD

79DXXA

LINEAR INTEGRATED CIRCUIT

www.unisonic.com.tw

1 of 9

Copyright © 2017 Unisonic Technologies Co., Ltd

QW-R101.039.F

3 T ERM I N AL 1 A N EGAT I V E

V OLT AGE REGU LAT OR



DESCRI PT I ON

The UTC 79DXXA series of three-terminal negative regulators

is available several fixed output voltage, making them useful in a

wide range of application. Each type employs internal current

limiting, thermal shut-down, making it essentially indestructible.



FEAT U RES

* Output current up to 1A

* -5V, -6V, -7V, -8V, -9V,-12V, -15V, -18V, -24V output voltage

available

* Thermal overload protection



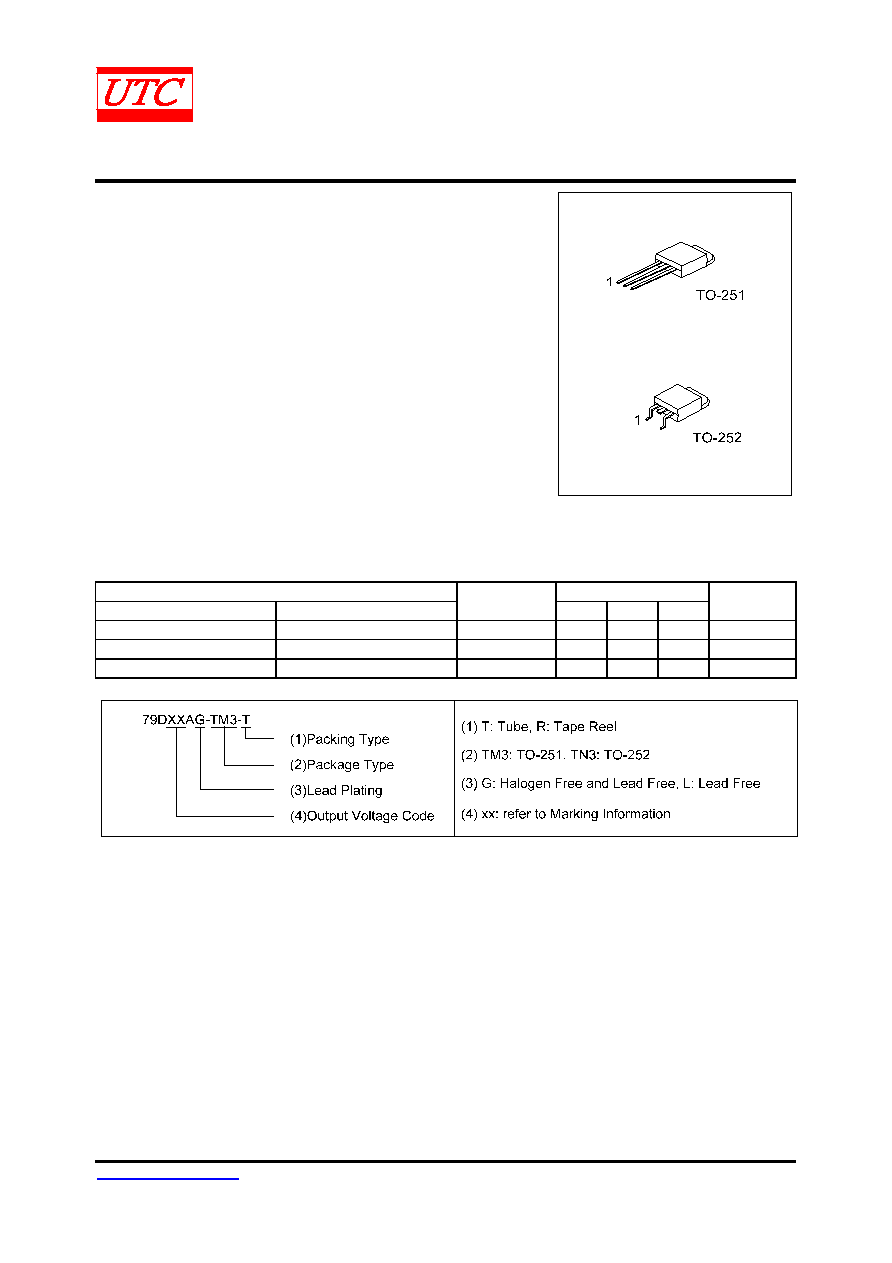

N ORDERI N G I N FORM AT I O

Ordering Number

Pin Assignment

Lead Free

Halogen Free

Package

1

2

3

Packing

79DXXAL-TM3-T

79DXXAG-TM3-T

TO-251

G

I

O

Tube

79DXXAL-TN3-T

79DXXAG-TN3-T

TO-252

G

I

O

Tube

79DXXAL-TN3-R

79DXXAG-TN3-R

TO-252

G

I

O

Tape Reel

Note: Pin Assignment: G: GND

I: Input

O: Output
