RIF-0-RSC-12DC datasheet(1/6 Pages) PHOENIX

Part #	RIF-0-RSC-12DC

Description	Pre-assembled relay module with screw connection, consisting of: relay base with ejector and multi-layer gold contact relay. Contact type: 1 N/O contact. Input voltage: 12 V DC

PDF	6 Pages

Scroll/Zoom	100%

Manufacturer	PHOENIX [PHOENIX CONTACT]

Direct Link	http://www.phoenixcontact.com

Logo

1 / 6 page

https://www.phoenixcontact.com/pi/products/2903365

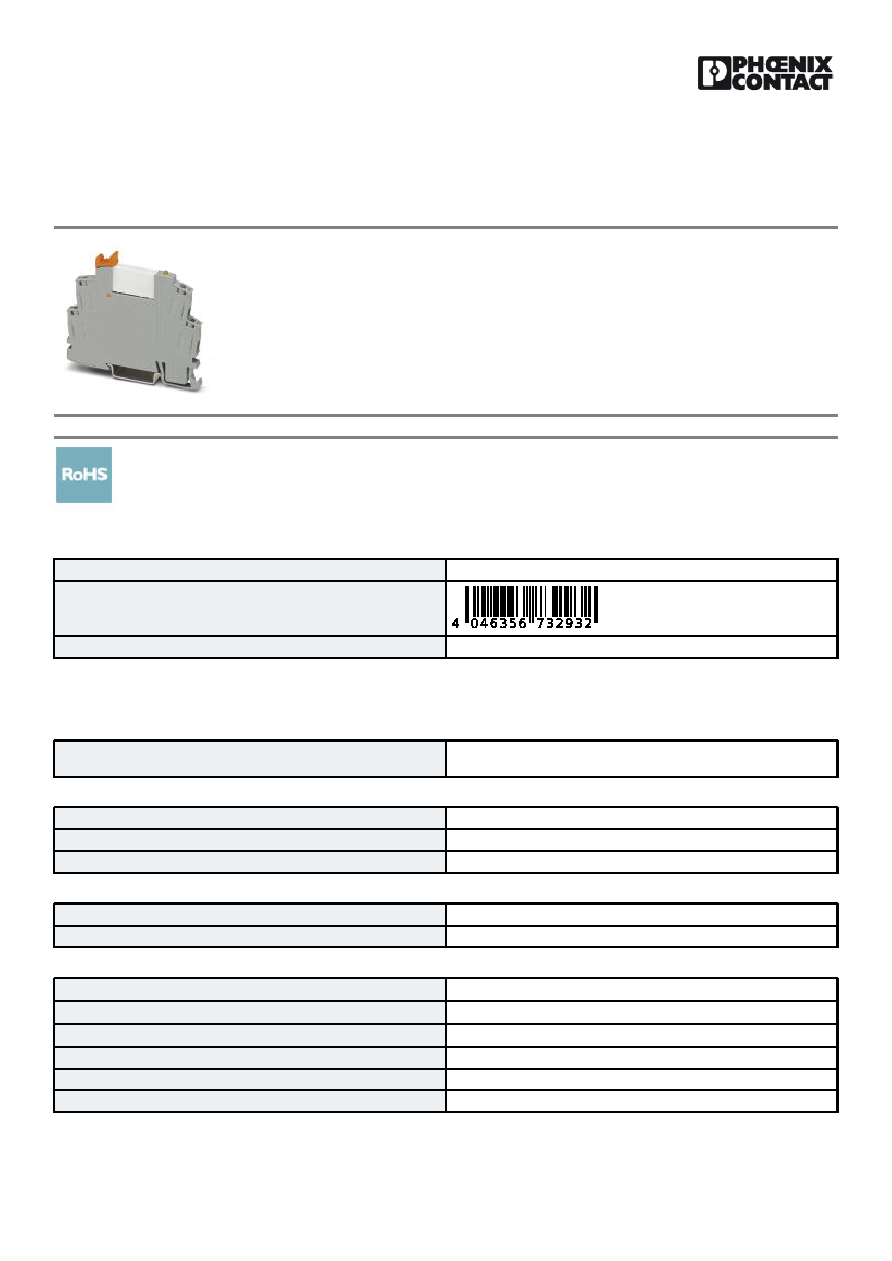

07/23/2018 Page 1 / 6

Relay Module - RIF-0-RSC-12DC/ 1AU - 2903365

Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's

documentation. Our General Terms of Use for Downloads are valid

(http://phoenixcontact.com/download)

Pre-assembled relay module with screw connection, consisting of: relay base with ejector and multi-layer gold

contact relay. Contact type: 1 N/O contact. Input voltage: 12 V DC

Key Commercial Data

Packing unit

10 STK

GTIN

4046356732932

Technical data

Note

Utilization restriction

EMC: class A product, see manufacturer's declaration in the download

area

Dimensions

Width

6.2 mm

Height

84 mm

Depth

68 mm

Ambient conditions

Ambient temperature (operation)

-40 °C ... 60 °C

Ambient temperature (storage/transport)

-40 °C ... 85 °C

Coil side

Nominal input voltage UN

12 V DC

Input voltage range in reference to UN

see diagram

Typical input current at UN

16 mA

Typical response time

5 ms

Typical release time

8 ms

Coil voltage

12 V DC

Similar Part No. - RIF-0-RSC-12DC

Manufacturer	Part #	Datasheet	Description
PHOENIX CONTACT	RIF-0-RSC-24DC	166Kb / 6P	Pre-assembled relay module with screw connection, consisting of: relay base with ejector and multi-layer gold contact relay. Contact type: 1 N/O contact. Input voltage: 24 V DC

More results

Similar Description - RIF-0-RSC-12DC

Manufacturer	Part #	Datasheet	Description
PHOENIX CONTACT	RIF-0-RPT-12DC	97Kb / 5P	Pre-assembled relay module with push-in connection, consisting of: relay base with ejector and multi-layer gold contact relay. Contact type: 1 N/O contact. Input voltage: 12 V DC
	RIF-0-RPT-24DC	97Kb / 5P	Pre-assembled relay module with push-in connection, consisting of: relay base with ejector and multi-layer gold contact relay. Contact type: 1 N/O contact. Input voltage: 24 V DC
	RIF-0-RSC-24DC	166Kb / 6P	Pre-assembled relay module with screw connection, consisting of: relay base with ejector and multi-layer gold contact relay. Contact type: 1 N/O contact. Input voltage: 24 V DC
	RIF-1-RSC-LV-24AC	126Kb / 6P	Pre-assembled relay module with screw connection, consisting of: relay base, multi-layer contact relay, plugin display/interference suppression module, and retaining bracket.
	RIF-1-RSC-LV-120AC	126Kb / 6P	Pre-assembled relay module with screw connection, consisting of: relay base, multi-layer contact relay, plugin display/interference suppression module, and retaining bracket.
	RIF-2-RSC-LDP-24DC	126Kb / 6P	Pre-assembled relay module with screw connection, consisting of: relay base, power contact relay, and retaining bracket. Contact type: 4 changeover contacts. Input voltage: 24 V DC
	RIF-2-RSC-LDP-125DC	122Kb / 6P	Pre-assembled relay module with screw connection, consisting of: relay base, power contact relay, and retaining bracket. Contact type: 4 changeover contacts. Input voltage: 125 V DC
	RIF-3-RSC-LDP-24DC	124Kb / 6P	Pre-assembled relay module with screw connection, consisting of: relay base, power contact relay, and retaining bracket.
	RIF-4-RSC-LDP-24DC	126Kb / 6P	Pre-assembled relay module with screw connection, consisting of: relay base, power contact relay, and retaining bracket.
	RIF-1-RSC-LDP-12DC	131Kb / 6P	Pre-assembled relay module with screw connection, consisting of: relay base, power contact relay, plug-in display/interference suppression module, and retaining bracket. Contact type: 1 changeover contact. Input voltage: 12 V DC

More results
