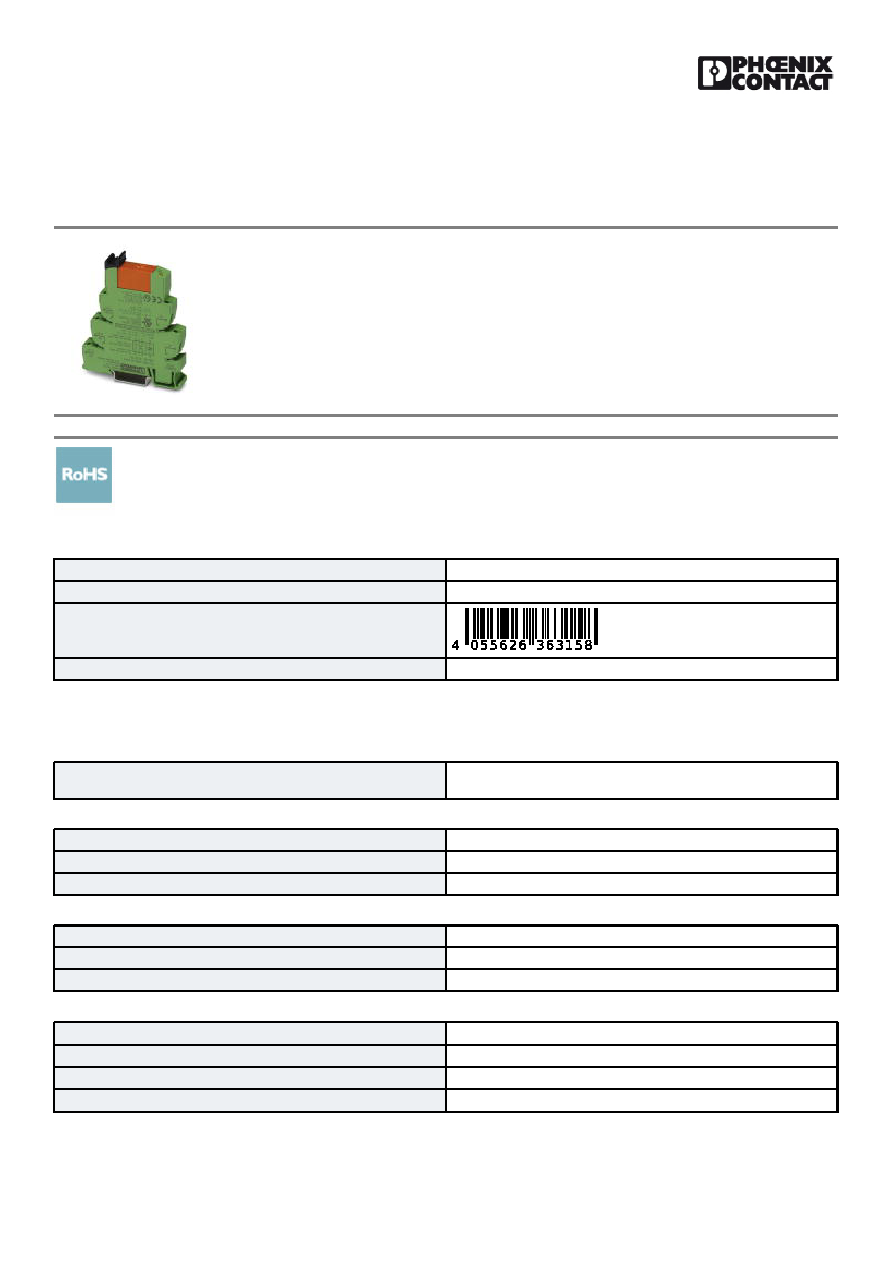

Relay Module - PLC-RSC-230UC/21-21/EX - 2909512

Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's

documentation. Our General Terms of Use for Downloads are valid

(http://phoenixcontact.com/download)

PLC-INTERFACE, consisting of DIN-rail-mountable basic terminal block in 14 mm with screw connection

and plug-in relay with power contact, 2 changeover contacts, 230 V AC/220 V DC input voltage. Approved

according to ATEX/IECEx (Zone 2) and Ex Zone Class I, Div. 2.

Key Commercial Data

Packing unit

10 STK

Minimum order quantity

10 STK

GTIN

4055626363158

Technical data

Note

Utilization restriction

EMC: class A product, see manufacturer's declaration in the download

area

Dimensions

Width

14 mm

Height

80 mm

Depth

94 mm

Ambient conditions

Ambient temperature (operation)

-20 °C ... 60 °C (UL)

-40 °C ... 55 °C (ATEX / IECEx)

Ambient temperature (storage/transport)

-40 °C ... 85 °C

Coil side

Nominal input voltage UN

230 V AC

220 V DC

Typical input current at UN

4.5 mA (UN = 230 V AC)

4.3 mA (UN = 220 V DC)
