TIME (1ms/DIV)

RF INPUT

RF OUTPUT

DETO1

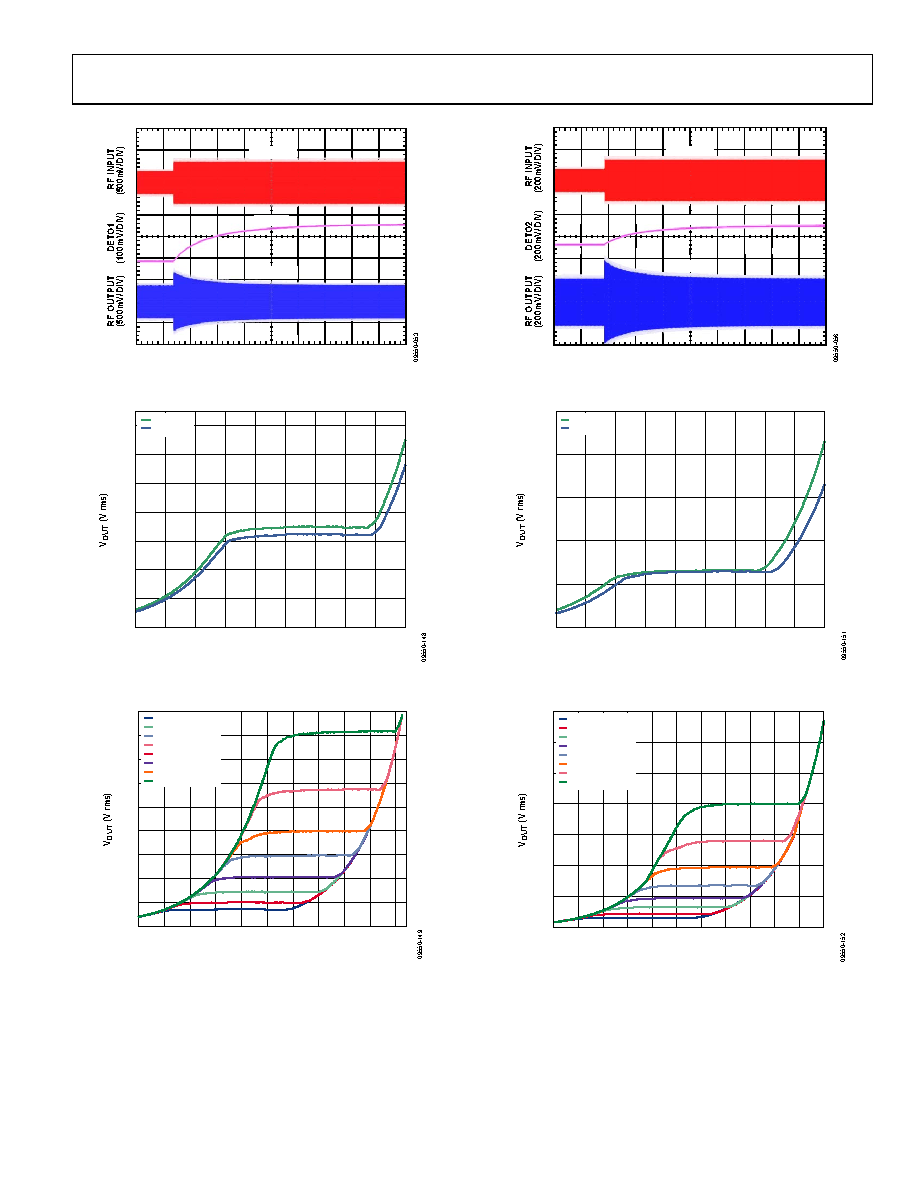

Figure 47. RSSI Step Response (AGC Mode) for VGA1

0.02

0.04

0.06

0.08

0.10

0.12

0.14

–50

–45

–40

–35

–30

–25

–20

–15

–10

–5

PIN (dBm)

140 MHz

350 MHz

Figure 48. VOUT vs. Input Power (PIN) over Frequency (AGC Mode) for VGA1

0.1

0.2

0.3

0.4

0.5

0.6

0.7

0.8

0.9

–40

–35

–30

–25

–20

–15

–10

–5

PIN (dBm)

SETPOINT 000

SETPOINT 010

SETPOINT 100

SETPOINT 110

SETPOINT 001

SETPOINT 011

SETPOINT 101

SETPOINT 111

Figure 49. VOUT vs. Input Power (PIN) over Setpoint (AGC Mode) for VGA1

TIME (1ms/DIV)

RF INPUT

RF OUTPUT

DETO2

Figure 50. RSSI Step Response (AGC Mode) for VGA2

0.05

0.10

0.15

0.20

0.25

–50

–45

–40

–35

–30

–25

–20

–15

–10

–5

PIN (dBm)

140MHz

350MHz

Figure 51. VOUT vs. Input Power (PIN) over Frequency (AGC Mode) for VGA2

0.2

0.4

0.6

0.8

1.0

1.2

1.4

–45 –40 –35 –30 –25 –20 –15 –10

–5

PIN (dBm)

SETPOINT 000

SETPOINT 010

SETPOINT 100

SETPOINT 110

SETPOINT 001

SETPOINT 011

SETPOINT 101

SETPOINT 111

Figure 52. VOUT vs. Input Power (PIN) over Setpoint (AGC Mode) for VGA2
