LR6401BG-AG6-R Datasheet(PDF) 2 Page - Unisonic Technologies

Part # LR6401BG-AG6-R
Description  DUAL CHANNEL LDO REGULATORS WITH ENABLE FUNCTION
PDF  8 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Manufacturer  UTC [Unisonic Technologies]
Direct Link  http://www.utc-ic.com
Logo UTC - Unisonic Technologies

LR6401BG-AG6-R Datasheet(HTML) 2 Page - Unisonic Technologies

  LR6401BG-AG6-R Datasheet HTML 1Page - Unisonic Technologies LR6401BG-AG6-R Datasheet HTML 2Page - Unisonic Technologies LR6401BG-AG6-R Datasheet HTML 3Page - Unisonic Technologies LR6401BG-AG6-R Datasheet HTML 4Page - Unisonic Technologies LR6401BG-AG6-R Datasheet HTML 5Page - Unisonic Technologies LR6401BG-AG6-R Datasheet HTML 6Page - Unisonic Technologies LR6401BG-AG6-R Datasheet HTML 7Page - Unisonic Technologies LR6401BG-AG6-R Datasheet HTML 8Page - Unisonic Technologies
Zoom Inzoom in Zoom Outzoom out
 2 / 8 page
background image

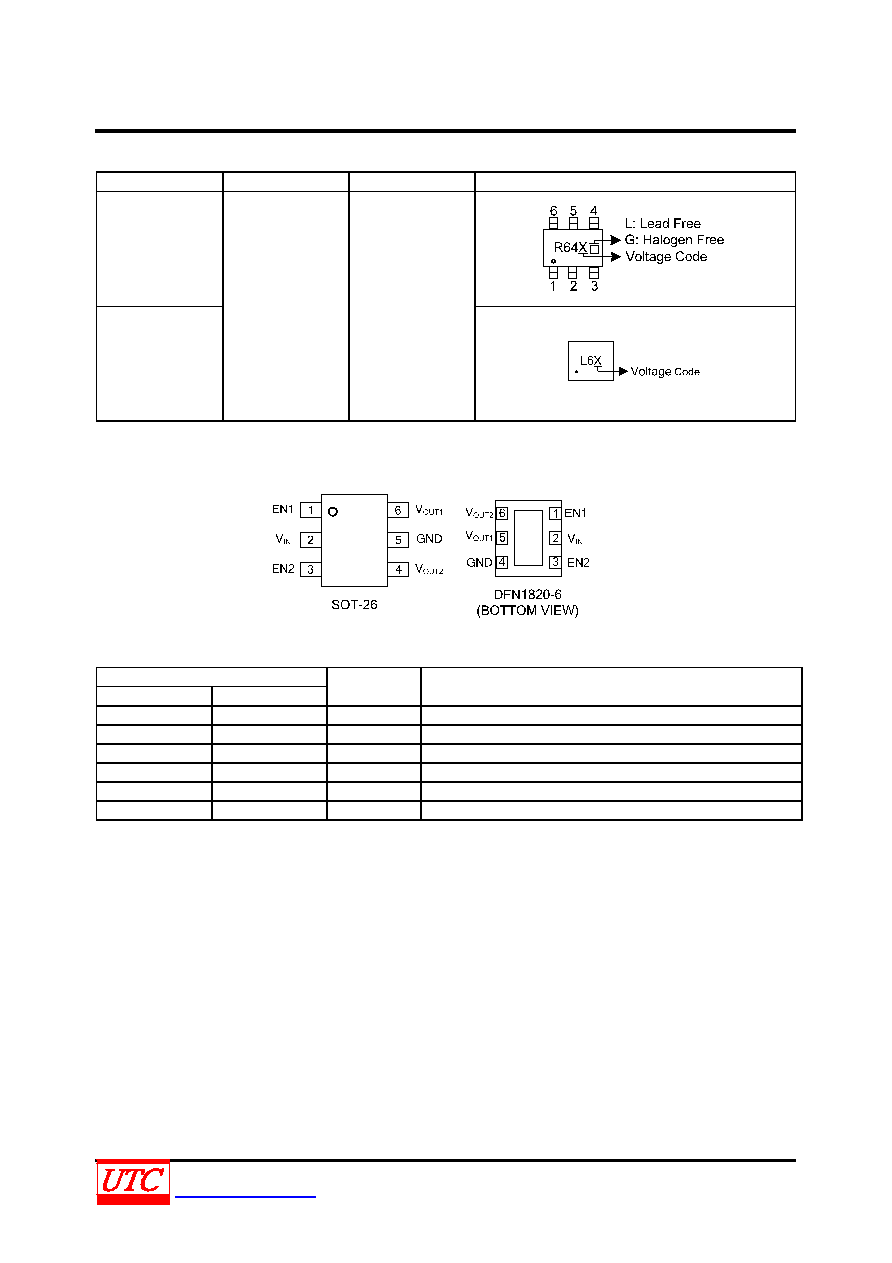

LR6401
CMOS IC
UNISONICTECHNOLOGIESCO.,LTD
2 of 8
www.unisonic.com.tw
QW-R502-332.P
MARKING INFORMATION
PACKAGE
VOLTAGE
VOLTAGE CODE
MARKING
SOT-26
DFN1820-6
1.8V + 3.3V
1.8V + 2.8V
2.5V + 3.3V
2.8V + 3.3V
2.8V + 1.8V
3.3V + 2.8V
2.85V + 2.85V
1.2V + 2.8V
1.5V + 2.8V
1.2V + 1.8V
A
B
C
D
E
F
H
M
N
P
PIN CONFIGURATION
PIN DESCRIPTION
PIN NO.
SOT-26
DFN1820-6
PIN NAME
DESCRIPTION
1
1
EN1
Channel 1’s output enable control Pin
2
2
VIN
Voltage Input pin
3
3
EN2
Channel 2’s output enable control Pin
4
6
VOUT2
Channel 2’s voltage output
5
4
GND
Ground
6
5
VOUT1
Channel 1’s voltage output
