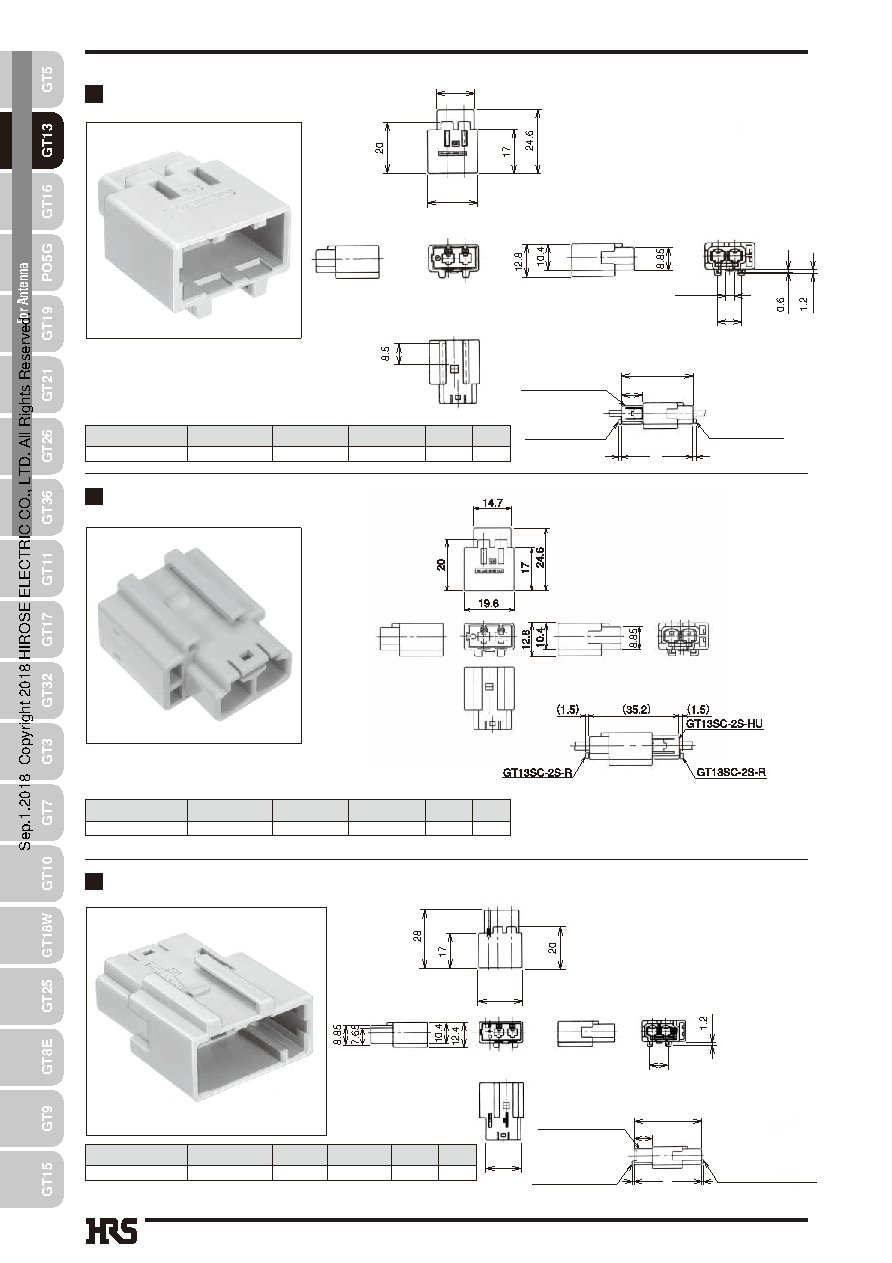

GT13 Series ● For Antenna
19.6
9.2
14.7
3
（35.2）
（10.6）
GT13SC-2S-HU
GT13SC-2S-R
GT13SC-2S-R
（1.5） （1.5）
21.65
17.175
9.2
BMated condition
BMated condition
（38.6）
（10.6）
GT13SC-2/1S-HU
GT13SC-2/1PP-R
（1.5）
GT13SC-2/1S-R
（1.5）
BMated condition
Part No.
HRS No.
Material
Color
Packaging
RoHS
GT13SCN-2PP-HU
763-0046-1 00
PBT
Light Gray
1
YES
Part No.
HRS No.
Material
Color
Packaging
RoHS
GT13SCH-2PP-HU
763-0072-1 00
PBT
Light Gray
1
YES
Part No.
HRS No.
Material
Color
Packaging
RoHS
GT13SCN-2/1PP-HU 763-0038-3 00
PBT
Light Gray
1
YES
Note : GT10SC-2022PCF or GT10A-2022PCF is used for power supply terminals.
