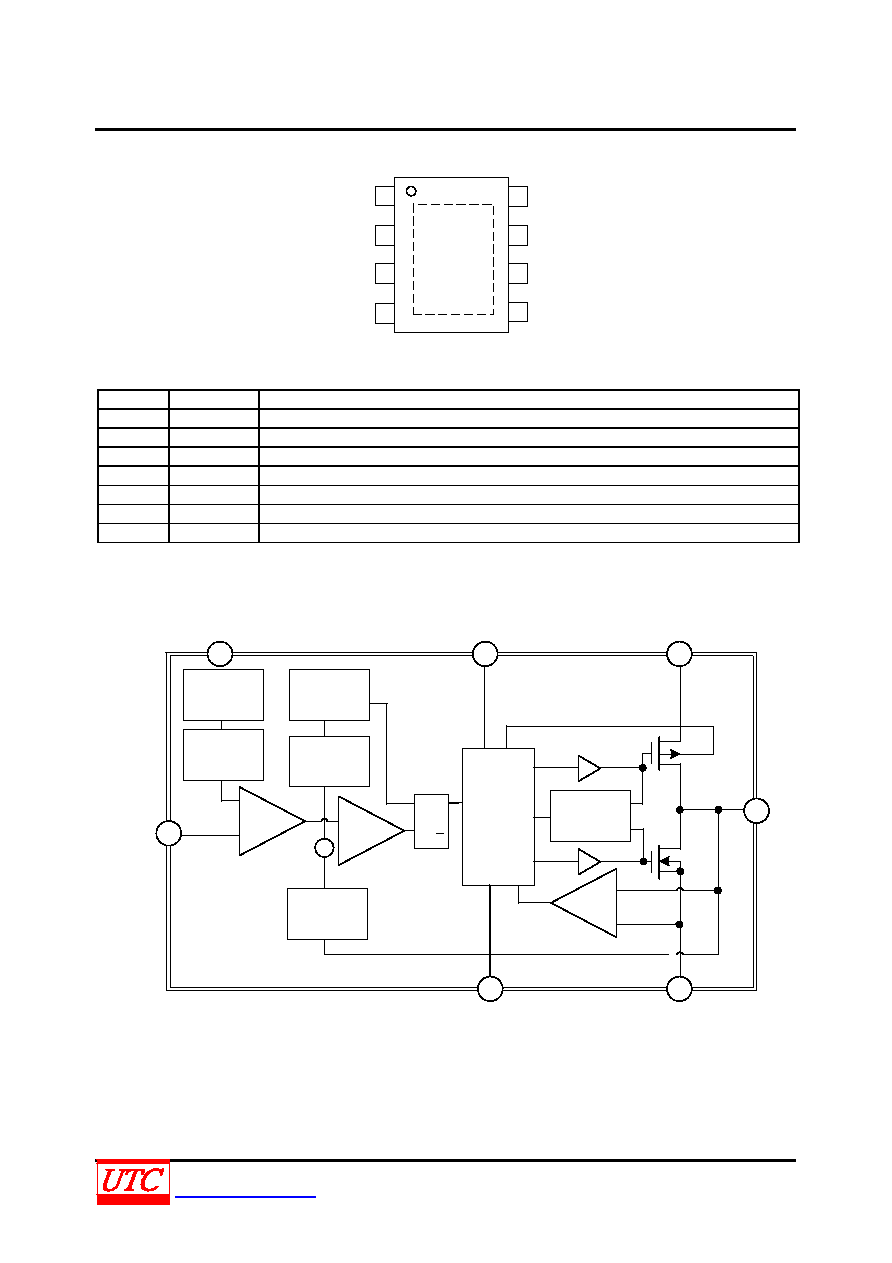

2 / 4 page  UD05206 Advance LINEAR INTEGRATED CIRCUIT UNISONIC TECHNOLOGIES CO., LTD 2 of 4 www.unisonic.com.tw QW-R115-018.b PI N CON FI GU RAT I ON 1 EN 2 VCC 3 AVCC 8 GND 7 GND 6 SW 5 AGND FB/VOUT 4 GND PI N DESCRI PT I ON PIN NO. PIN NAME DESCRIPTION 1 EN Enable / UVLO 2 VCC Supply Voltage 3 AVCC Analog Supply Voltage 4 FB/VOUT Feedback 5 AGND Analog Ground 6 SW Switch 7, 8 GND Ground BLOCK DI AGRAM SW 1 EN 3 AVCC 2 VCC 4 FB/VOUT 5 AGND GND 6 + - Error Amp. + - Current Comp. OSC Slope Comp Enable/ UVLO 0.6V/ VREF S R Q Q SR Latch + Switching Control Logic Anti Shoot- Thru + - Current Sensing Reverse Current Detector 7/8 |
|
|
