TH7108
868/915MHz
FSK/FM/ASK Transmitter
3901007108
Page 11 of 14
Data Sheet
Rev. 008
May/03

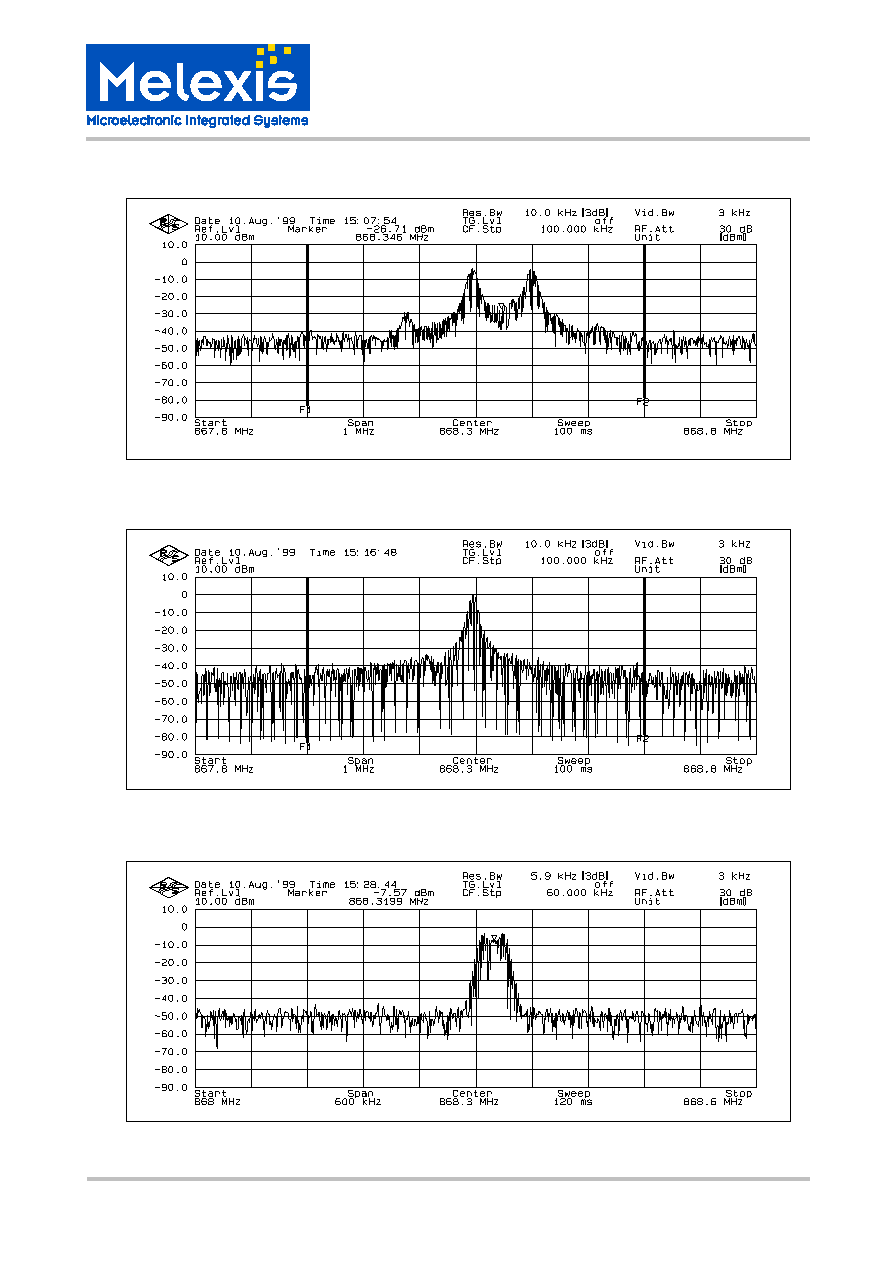

Fig.5:
FSK modulation with RFSK = 6.6 kbit/s NRZ
Fig. 6: ASK modulation with RASK = 4 kbit/s NRZ
Fig. 7: FM with fmod = 2 kHz, FM input signal with 1 Vpp around 1.5 VDC, DATA = HIGH
