Electrical Characteristics

Inductance

[Within]

(μH) ※1

Temperature

Rise Current

(A) ※3

Saturation Current

at 20℃(A) ※2

D.C.R. at 20℃

[Within] (mΩ)

Part Number

50.00

CDB78D60NP-R19MC

0.19 ± 20%

0.28 ± 10%

44.00

※1 Measuring frequency Inductance at 1MHz.

※2 Saturation current: The actual value of D.C. current when inductance is above 80% of its initial value(at=20℃).

※3 Temperature rise current: The actual value of D.C. current when temperature of coil increased △T=40℃(Ta=20℃).

CDB78D60

SMD Power Inductor

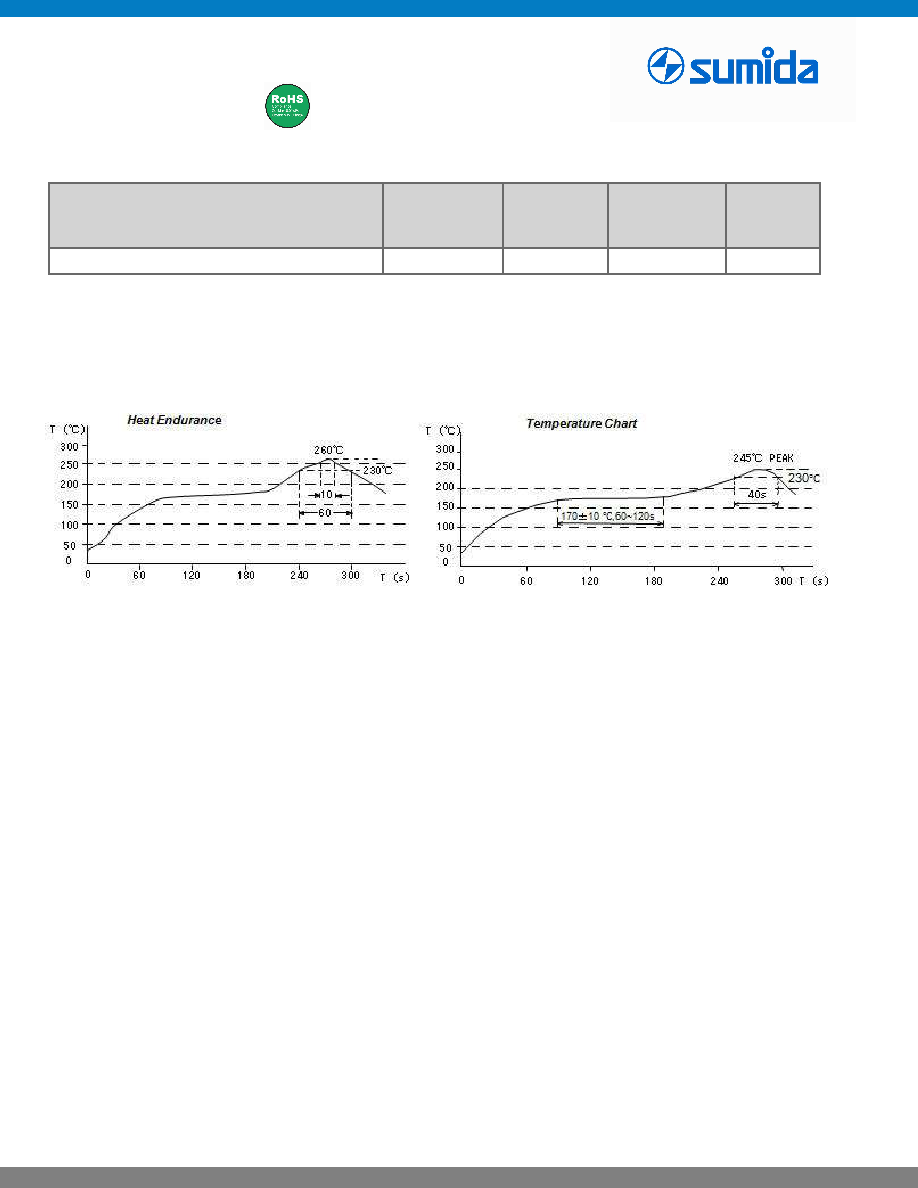

Solder Reflow Condition
