UNISONIC TECHNOLOGIES CO., LTD

L3080

Preliminary

CMOS IC

30V/800mA INTEGRATED

POWER LED DRIVER

DESCRIPTION

The UTC L3080 is a continuous conduction mode inductive

step-down converter, designed for driving single or multiple series

connected LEDs. Using a few external components.

The UTC L3080 has a build-in power switch, based on different

input voltage, The UTC L3080 can drive several 1W or 3W LEDs.

The device has the function of thermal shutdown protection and

LED short-circuit/open-circuit protection.

FEATURES

* Up to 800mA output current

* High efficiency (up to 97%)

* Wide input voltage range: 5V~30V

* Typical ±5% output current accuracy

* Single DIM pin on/off and brightness control using DC voltage or

PWM signal

* LED open-circuit protection

* LED short-circuit protection

* Internal thermal shutdown protection.

* Adjustable Constant LED Current

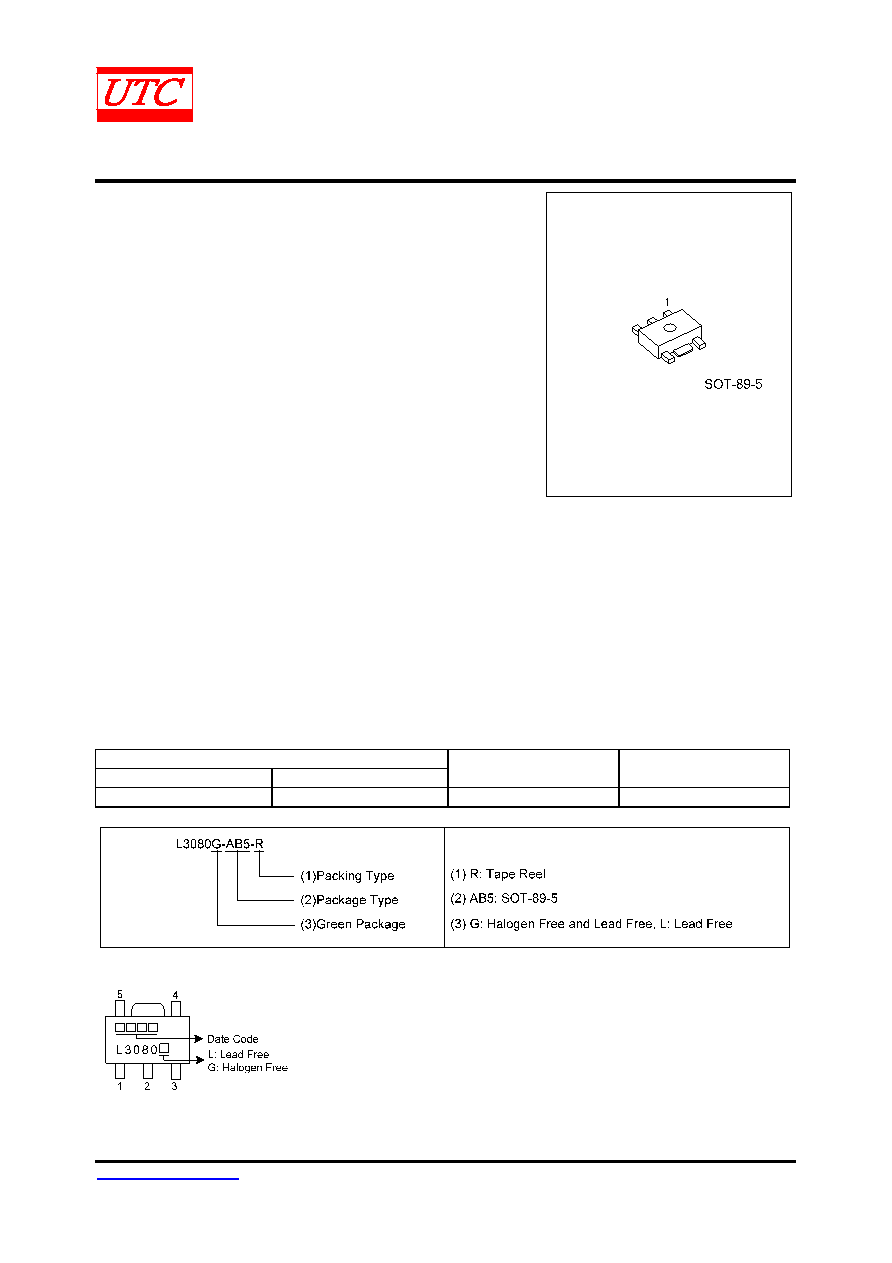

ORDERING INFORMATION

Ordering Number

Lead Free

Halogen Free

Package

Packing

L3080L-AB5-R

L3080G-AB5-R

SOT-89-5

Tape Reel

MARKING

www.unisonic.com.tw

1 of 4

Copyright © 2016 Unisonic Technologies Co., Ltd

QW-R125-043.a
