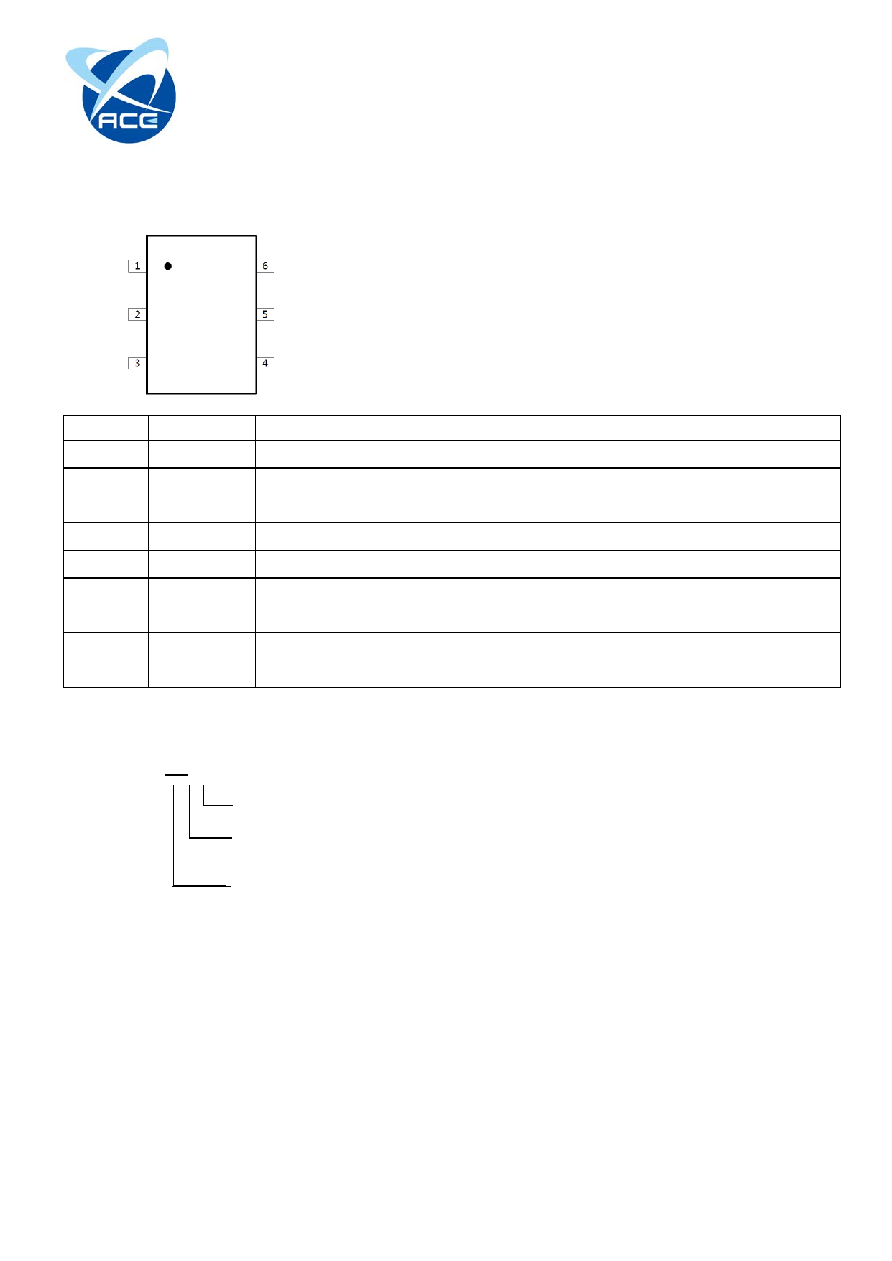

background image
ACE7213F
18V, 3A, High Efficiency Synchronous Step-Down Converter
VER 1.1
2
Packaging Type
SOT-563
Pin NO.
Description
Function
1
IN
Supply Voltage. Bypass with a 10μF ceramic capacitor to GND
2
SW
Inductor Connection. Connect an inductor Between SW and the regulator
output.
3
GND
Ground
4
BST
Bootstrap pin. Connect a 10nF capacitor from this pin to SW
5
EN
Enable pin for the IC. Drive this pin high to enable the part, low or floating to
disable.
6
FB
Feedback Input. Connect an external resistor divider from the output to FB and
GND to set VOUT
Ordering information
ACE7213F XX+ H
Pb - free
KG：SOT-563
Halogen - free
IN
SW
GND
FB
EN
BST
