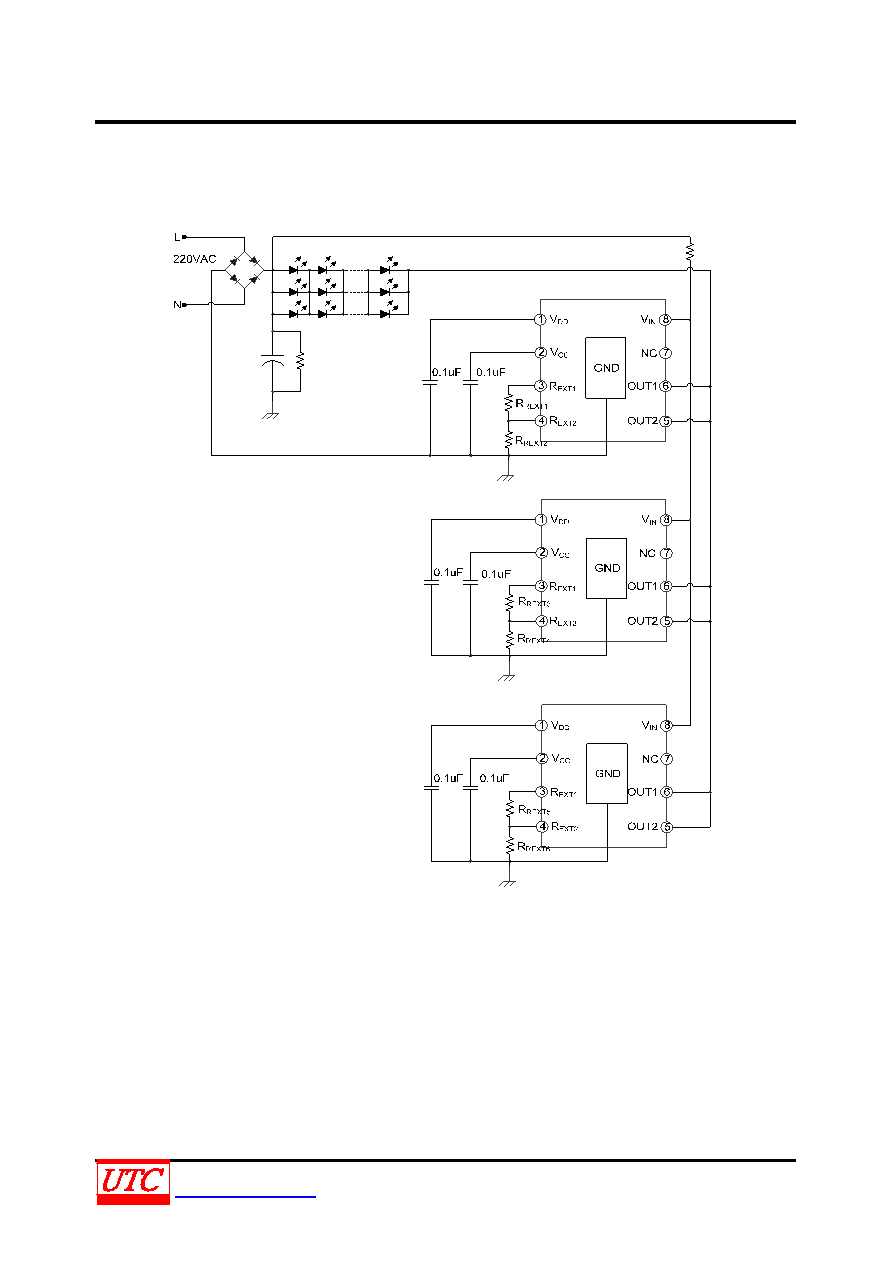

MULTIPLE IC PARALLEL SCHEMES
UL23EB
support multiple IC parallel schemes, If the output power is too large that the IC over temperature, Multiple
IC parallel schemes can be adopted.
Typical Applications：RREXT1=RREXT3=RREXT5=180Ω，RREXT2=RREXT4=RREXT6=20Ω, 0.3S < Switching Period < 3S；
Open the switch for the 1st time, IOUT=90mA；
Open the switch for the 2nd time, IOUT=45mA；
Open the switch for the 3rd time, IOUT=9mA；
The dimming ratio is 100%, 50%, 10%
When the switching period > 3S, System reset.
