VBO 25

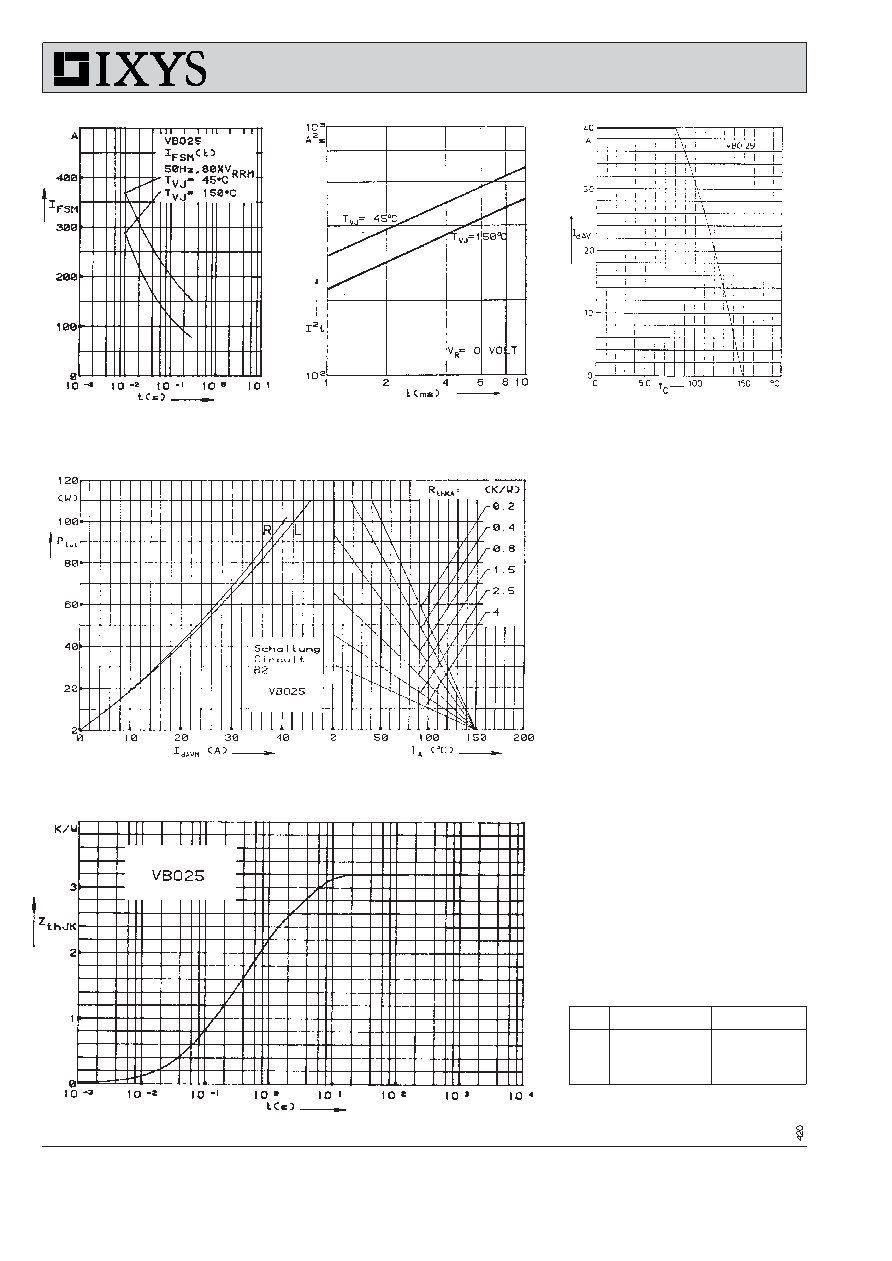

Fig. 1 Surge overload current per diode

I

Fig. 3 Max. forward current at case

temperature

per diode

Fig. 4 Power dissipation versus direct output current and ambient temperature

Fig. 5 Transient thermal impedance junction to heatsink per diode

Constants for Z

iR

t

1

0.775

0.0788

2

1.390

0.504

3

1.055

3.701
