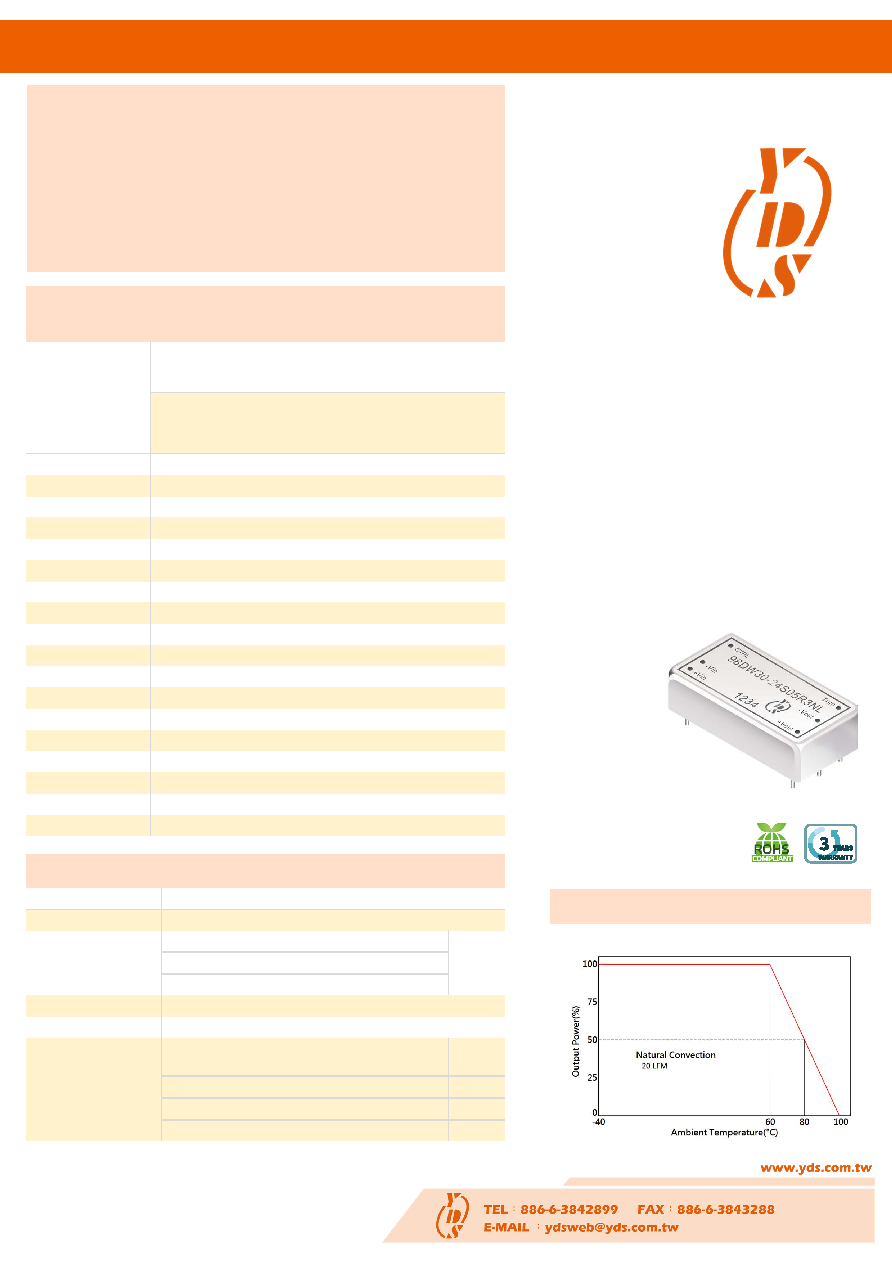

1 / 2 page  YUAN DEAN SCIENTIFIC CO.,LTD 98DW30-R3 SERIES Rev:1.0 2018/12/17 FEATURES： 4:1Wide Input Voltages Range High Efficiency up to 88% Regulated Output Types No minimum load required Operating Temperature:-40℃ TO +80℃ 3 Years Warranty Design refer to EN50155 DC-DC Converter 98DW30-R3 SERIES 30Watt 3KV Isolated 4：1 Input Voltage Range Single & Dual Output 2” x 1” Specifications typical at TA=25°C, nominal input voltage and rated output current unless otherwise specified Part Number I nput Voltage Range Nominal Input Voltage Output Voltage Range Output Current Efficiency Vdc No- Load (mA TYP) Full Load (mA TYP) Vdc mA %TYP 98DW30-24S03R3NL 9-36 6 1213 3.3 7500 85 98DW30-24S05R3NL 9-36 6 1453 5 6000 86 98DW30-24S12R3NL 9-36 6 1420 12 2500 88 98DW30-24S15R3NL 9-36 6 1420 15 2000 88 98DW30-48S03R3NL 18-75 5 607 3.3 7500 85 98DW30-48S05R3NL 18-75 5 726 5 6000 86 98DW30-48S12R3NL 18-75 5 710 12 2500 88 98DW30-48S15R3NL 18-75 5 710 15 2000 88 98DW30-110S03R3NL 40-160 4 268 3.3 7500 84 98DW30-110S05R3NL 40-160 4 321 5 6000 85 98DW30-110S12R3NL 40-160 4 313 12 2500 87 98DW30-110S15R3NL 40-160 4 313 15 2000 87 98DW30-24D12R3NL 9-36 6 1420 ±12 ±1250 88 98DW30-24D15R3NL 9-36 6 1437 ±15 ±1000 87 98DW30-48D12R3NL 18-75 5 710 ±12 ±1250 88 98DW30-48D15R3NL 18-75 5 718 ±15 ±1000 87 98DW30-110D12R3NL 40-160 4 313 ±12 ±1250 87 98DW20-110D15R3NL 40-160 4 321 ±15 ±1000 85 YUAN DEAN SCIENTIFIC Temperature Derating Graph Input Specifications Parameters Conditions Min Typ Max Units Voltage Types 4:1 Surge Voltage (1 sec. max.) 24V models 50 Vdc 48V models 100 110V models 170 Input Filter PI Type Reflected ripple current 30 mAp-p Remote ON/OFF (Refer to –Vin PIN) Positive Logic ON : Open 3 12 Vdc OFF: Short 0 1.2 Vdc Input current of Ctrl PIN 0.5 0.5 mA Remote off input current 3 mA |
