INMP510

RF-Hardened, Ultra-Low Noise Microphone with Bottom Port and Analog Output

GENERAL DESCRIPTION

omnidirectional MEMS microphone with high performance,

ultra-low noise, and low power. The INMP510 consists of a

MEMS microphone element, an impedance converter, and an

output amplifier. The INMP510 sensitivity specification makes

it an excellent choice for both near-field and far-field

applications. The INMP510 is pin compatible with the INMP504

microphone. The INMP510 has a very high signal-to-noise

ratio (SNR) and extended wideband frequency response,

resulting in natural sound with high intelligibility. Low current

consumption enables long battery life for portable

applications.

The INMP510 is available in a miniature 3.35 × 2.5 × 0.98 mm

surface-mount package. It is reflow solder compatible with no

sensitivity degradation.

*Protected by U.S. Patents 7,449,356; 7,825,484; 7,885,423; and 7,961,897.

Other patents are pending.

APPLICATIONS

•

Smartphones and Feature Phones

•

Tablet Computers

•

Teleconferencing Systems

•

Digital Still and Video Cameras

•

Bluetooth Headsets

•

Notebook PCs

•

Security and Surveillance

FEATURES

•

Tiny, 3.35 × 2.5 × 0.98 mm Surface-Mount Package

•

High SNR of 65 dBA

•

Acoustic Overload Point of 124 dB SPL

•

Extended Frequency Response from 60 Hz to 20 kHz

•

Omnidirectional Response

•

Sensitivity of −38 dBV

•

Sensitivity Tolerance of ±2 dB

•

Enhanced Radio Frequency (RF) Performance

•

Low Current Consumption of 180 µA

•

Single-Ended Analog Output

•

High PSR of −78 dBV

•

Compatible with Sn/Pb and Pb-Free Solder Processes

•

RoHS/WEEE Compliant

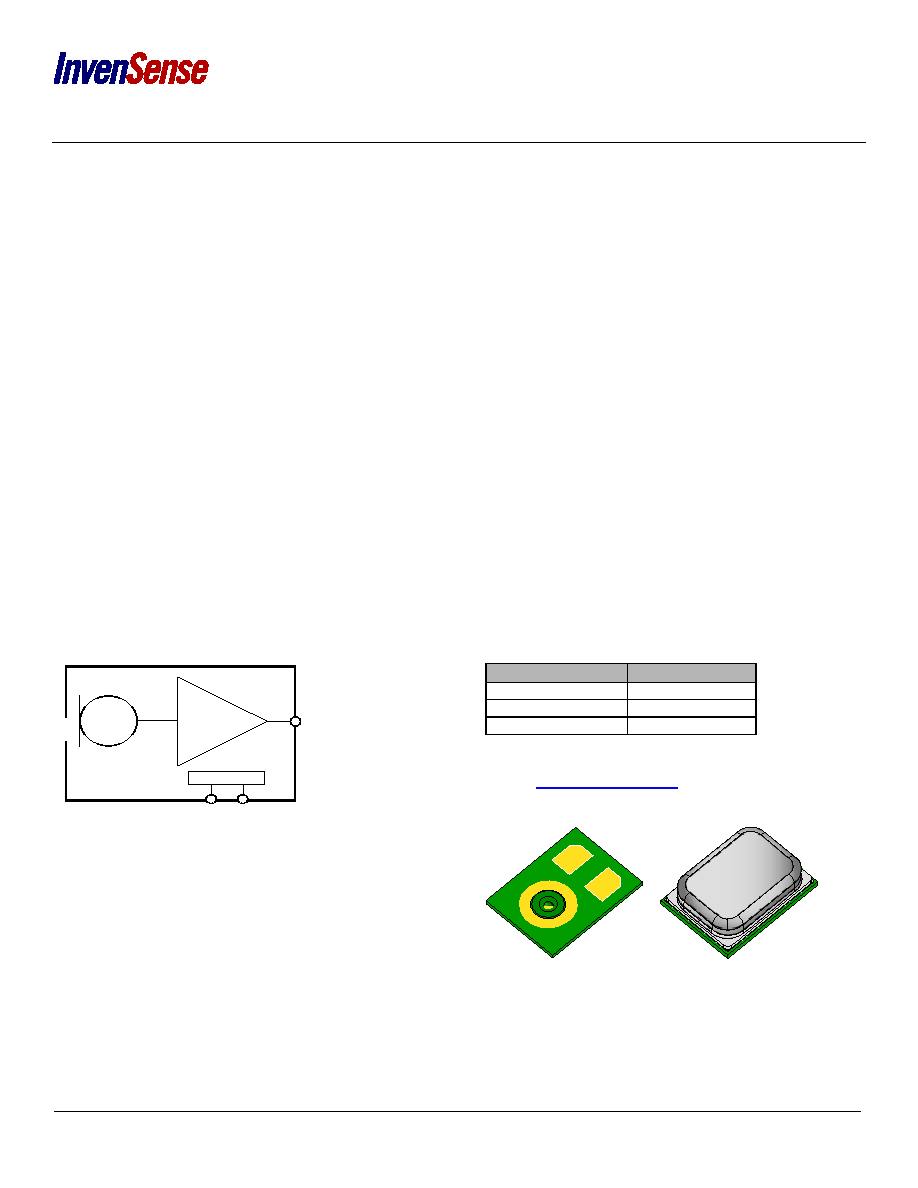

FUNCTIONAL BLOCK DIAGRAM

ORDERING INFORMATION

PART

TEMP RANGE

INMP510ACEZ-R0*

−40°C to +85°C

INMP510ACEZ-R7†

−40°C to +85°C

EV_INMP510-FX

—

* – 13” Tape and Reel

† – 7” Tape and reel is to be discontinued.

Contact sales@invensense.com for availability.

OUTPUT

AMPLIFIER

INMP504

POWER

VDD

GND

OUTPUT

InvenSense reserves the right to change the detail

specifications as may be required to permit

improvements in the design of its products.

InvenSense Inc.

1745 Technology Drive, San Jose, CA 95110 U.S.A

+1(408) 988–7339

www.invensense.com

Document Number: DS-INMP510-00

Revision: 1.0.

Rev Date: 02/06/2014
