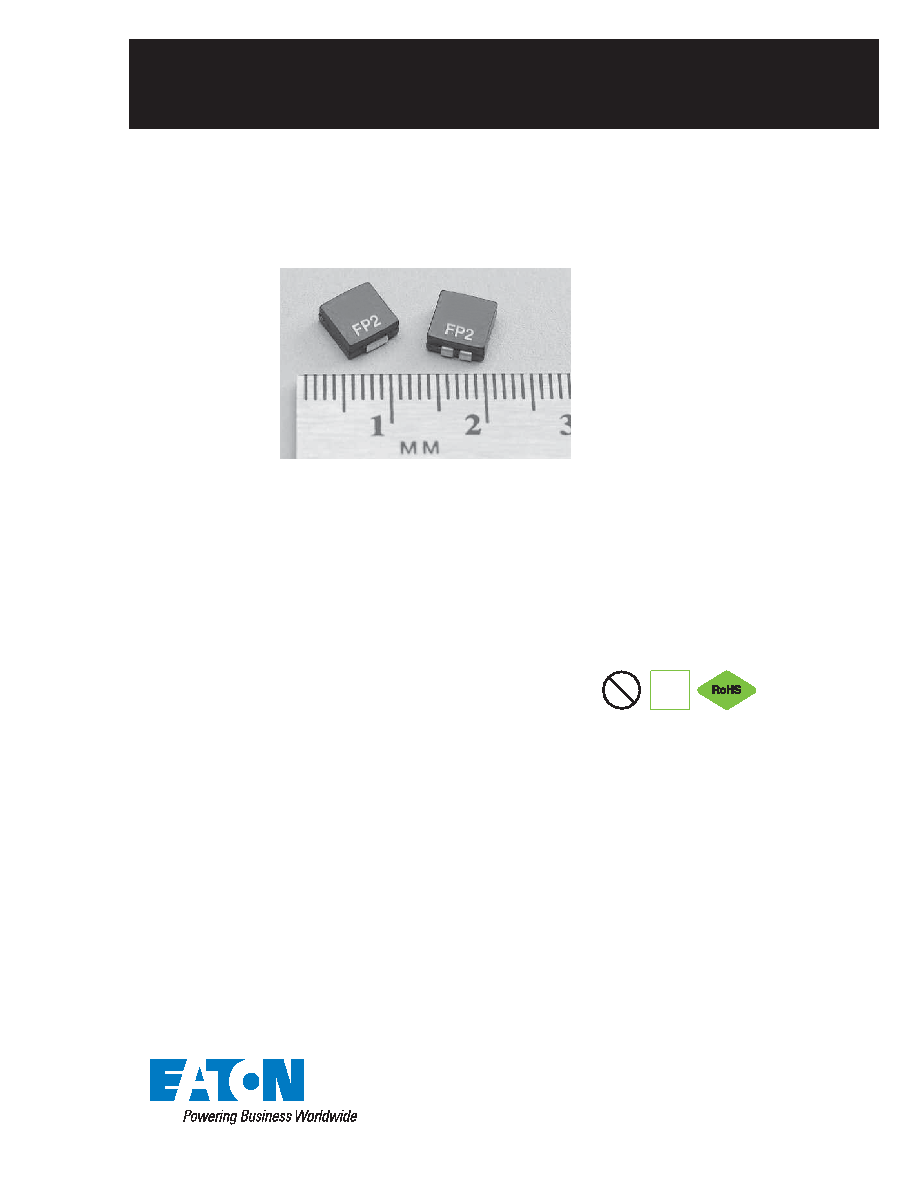

Technical Data 4110
Effective December 2015
Supersedes July 2014
Product description
•
High current carrying capacity
•
Dual conductors allow for low inductance
and high current or high inductance and
lower current
•
Inductance range from 0.047uH to 0.480uH
•
Current range 9.0 to 42 Amps
•
7.2 x 6.7mm footprint surface mount package
in a 3.0 or 5.0mm heights
•
Ferrite core material
•
Halogen free, lead free, RoHS compliant
Applications
•
Servers
•
Multi-phase and Vcore regulators
•
Voltage Regulator Modules (VRMs)
•
Server and desktop
•
Central processing unit (CPU)
•
Graphics processing unit (GPU)
•
Application specific integrated circuit (ASIC)
•
High power density
•
Notebook regulators
•
Battery power systems
•
Graphics cards
Environmental data
•
Storage temperature range (component):
-40°C to +125°C
•
Operating temperature range: -40°C to +125°C
(Ambient plus self temperature rise)
•
Solder reflow temperature: J-STD-020D
compliant
FP2
Low profile, high current power inductors
Pb
HALOGEN
HF
FREE
