FP0906R1-R22-R Datasheet(PDF) 3 Page - Eaton All Rights Reserved. |
|
|
|||||||||||||||||||||||||||||
FP0906R1-R22-R Datasheet(HTML) 3 Page - Eaton All Rights Reserved. |
|
|

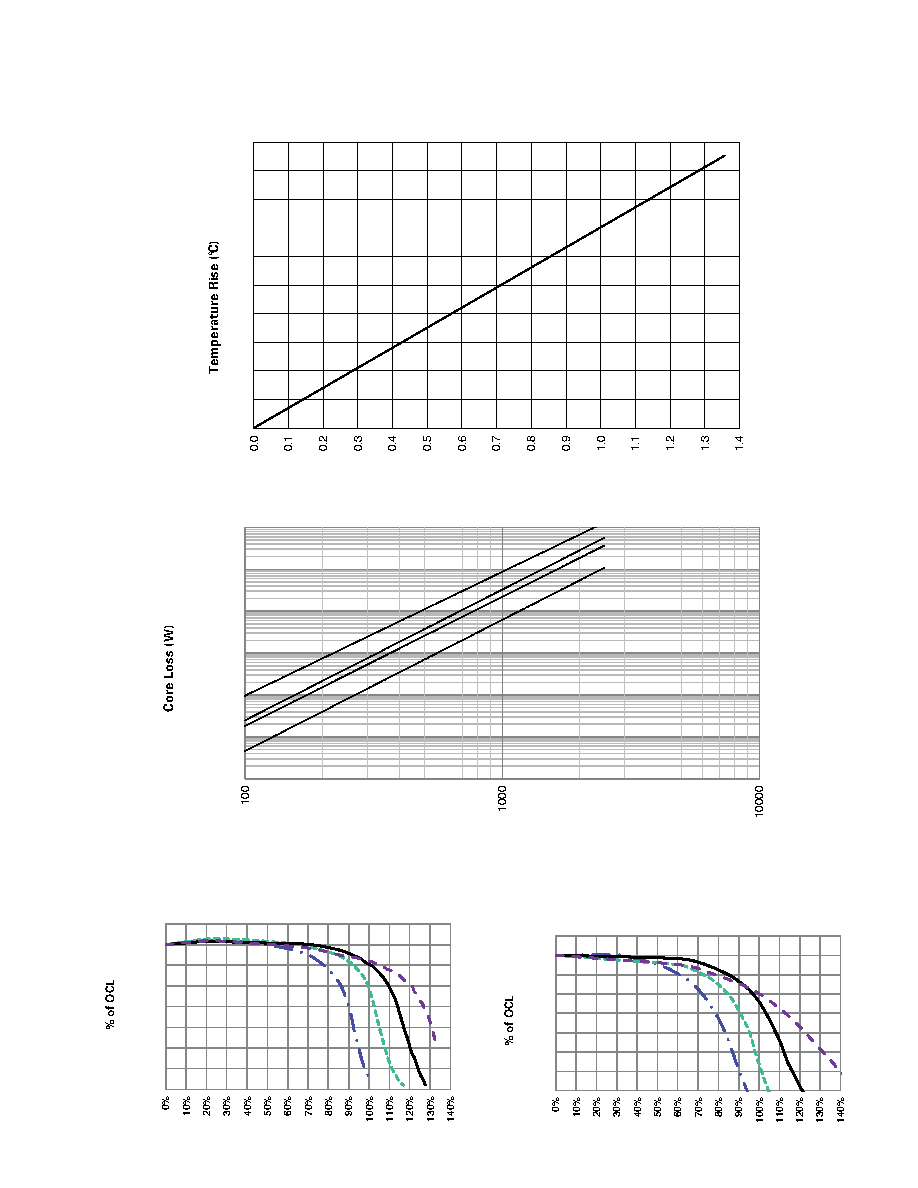

3 / 4 page  3 Technical Data 4407 Effective June 2015 FP0906 High frequency, high current power inductors www.eaton.com/elx 0 5 10 15 20 25 30 35 40 45 50 Total Loss (W) Temperature rise vs. total loss Core loss vs Bp-p 0.00001 0.0001 0.001 0.01 0.1 1 10 Bp-p (Gauss) 1.0MHz 500kHz 300kHz 100kHz 30% 40% 50% 60% 70% 80% 90% 100% 110% % of Isat1 % of OCL vs. % of Isat1 +125C +85C +25C -40C 30% 40% 50% 60% 70% 80% 90% 100% 110% % of Isat1 % of OCL vs. % of I sat1 +125C +85C +25C -40C FP0906R1-R22 to R30 FP0906R1-R10 to R18 Inductance characteristics |
|
|
