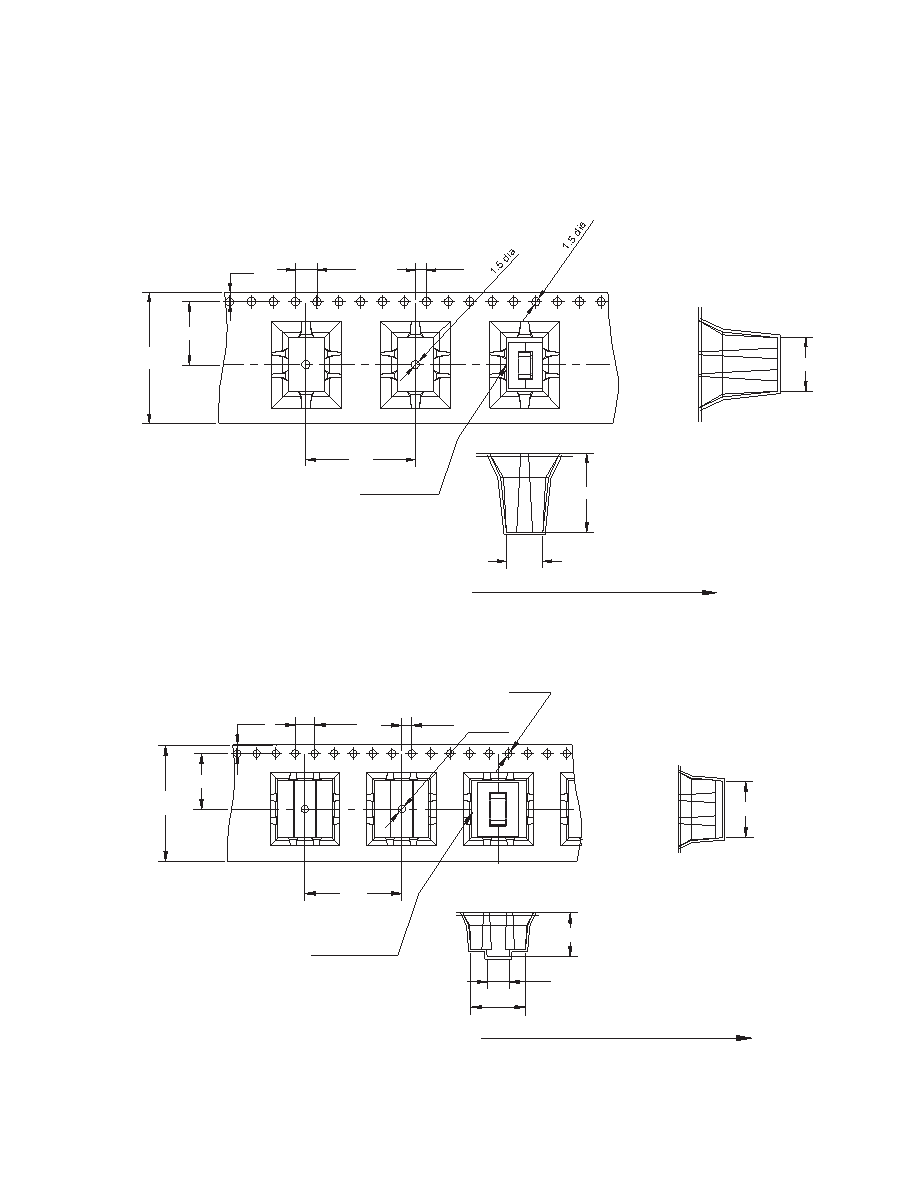

Packaging information (mm)

(Drawing not to scale)

(Supplied in tape and reel packaging, 300 parts per 13” diameter reel

1.75

4.02.0

11.5

24.0

±0.3

20.0

9.5

7.6

10.9

Part marking

User Direction of feed

1.75

4.02.0

11.5

20.0

1.5 dia

1.5 dia

24.0

±0.3

10.7

10.2

2.5

6.4

Part marking

User Direction of feed

FP1110V1

FP1110V2
