MPI2520R0-2R2-R Datasheet(PDF) 4 Page - Eaton All Rights Reserved.

Part # MPI2520R0-2R2-R
Description  High Current, Low Profile, Miniature Power Inductors
PDF  7 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Manufacturer  EATON [Eaton All Rights Reserved.]
Direct Link  https://www.eaton.com
Logo EATON - Eaton All Rights Reserved.

MPI2520R0-2R2-R Datasheet(HTML) 4 Page - Eaton All Rights Reserved.

  MPI2520R0-2R2-R Datasheet HTML 1Page - Eaton All Rights Reserved. MPI2520R0-2R2-R Datasheet HTML 2Page - Eaton All Rights Reserved. MPI2520R0-2R2-R Datasheet HTML 3Page - Eaton All Rights Reserved. MPI2520R0-2R2-R Datasheet HTML 4Page - Eaton All Rights Reserved. MPI2520R0-2R2-R Datasheet HTML 5Page - Eaton All Rights Reserved. MPI2520R0-2R2-R Datasheet HTML 6Page - Eaton All Rights Reserved. MPI2520R0-2R2-R Datasheet HTML 7Page - Eaton All Rights Reserved.
Zoom Inzoom in Zoom Outzoom out
 4 / 7 page
background image
www.eaton.com/elx
4
TechnicalData10199
EffectiveJanuary2014
MPI2520HighCurrent,LowProfile
MiniaturePowerInductors

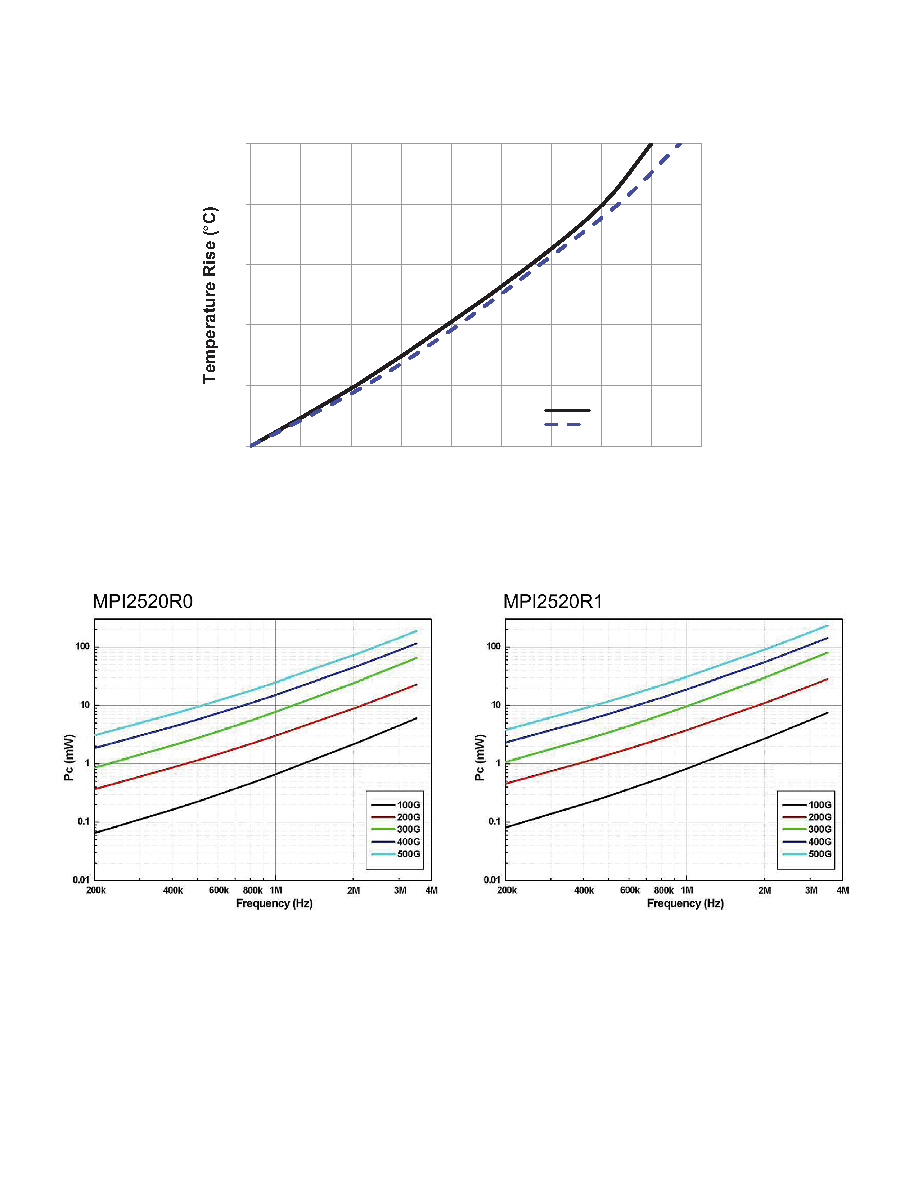

Temperature rise vs. total loss
Core loss
0
10
20
30
40
50
00.1
0.20.3
0.40.5
0.60.7
0.80.9
Total Loss (W)
MPI2520R0
MPI2520R1
Discontinued,
Effective
September
15,
2016
or until
inventory
is depleted.
Recommended
replacement
MPI25-V2
