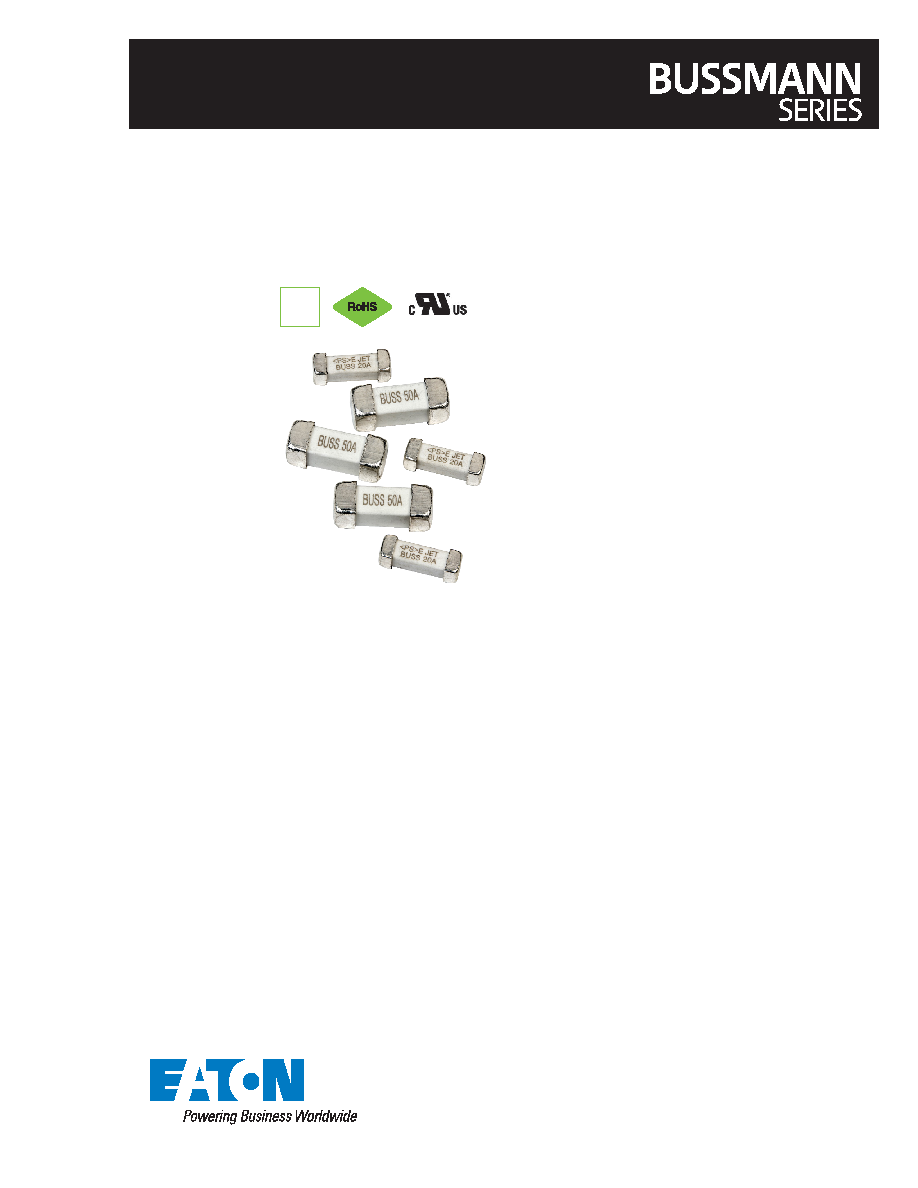

background image
Technical Data 10572
Effective June 2017
Supersedes February 2017
Product description
•
Fast-acting high current fuse
•
Compact design utilizes less board space
•
20 A to 50 A current ratings
•
Ceramic tube, silver plated brass end
cap construction
•
Halogen free and RoHS compliant
Applications
Primary and secondary circuit protection:
•
Server and desktop power supplies
•
Gaming console systems
•
Voltage Regulator Module (VRM)
•
Storage system power
•
Base station power supplies
•
Basic power supplies
•
LED and general lighting
•
Test equipment
Agency information
•
cURus Recognition file number: E19180,
Guide JDYX2/JDYX8
•
PSE: JET 7042-31007-1002 (20 A to 30 A)
Ordering
•
Use ordering number (see page 7 for details)
Packaging suffixes
•
-TR (20 A to 30 A: 1500 parts per 13” diameter
reel, tape width 24 mm)
(40 A to 50 A: 1000 parts per 13” diameter
reel, tape width 24 mm)
1025HC
Fast-acting, high current, surface mount ceramic tube fuses
HALOGEN
HF
FREE
