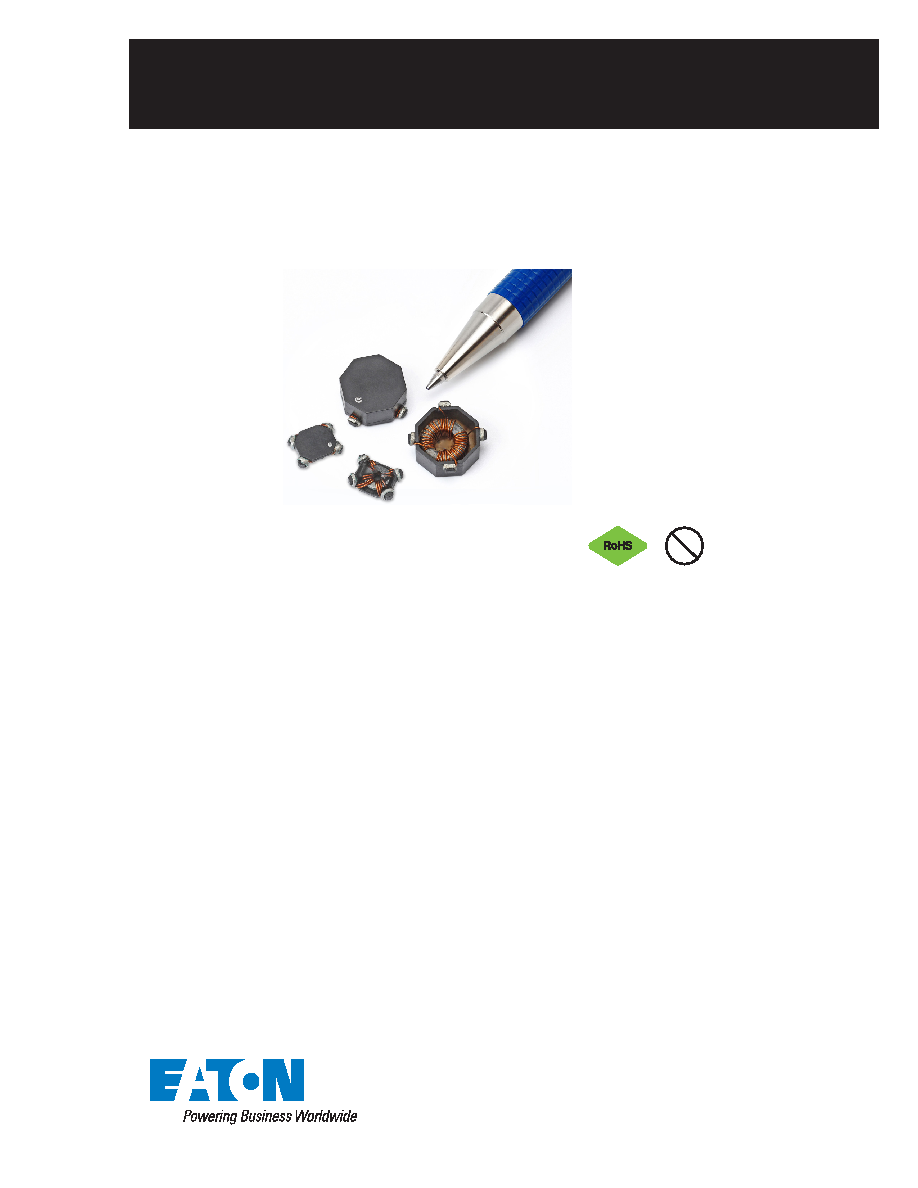

1 / 6 page  Technical Data 4313 Effective October 2015 Supersedes March 2007 Product description • Three sizes of surface mount torroidal common- mode inductors that provide 300Vdc isolation • Inductance range from 5.5uH to 1600uH • Current range up to 7.0 Amps • Noise attenuation up to 44 dB • Frequency range up to 100 MHz • Meets UL94V-0 flammability standard • Ferrite core material Applications • EMI filters • DC-DC brick power supplies • Discrete output supplies • Discrete and point-of-use power supplies (PUPS) Environmental data • Storage temperature range: -40°C to +160°C • Operating ambient temperature range: -40°C to +160°C (range is application specific) • Solder reflow temperature: J-STD-020D compliant CMS Common mode inductors, surface mount Pb |
