2SA1037/AK-R Datasheet(PDF) 1 Page - Guangdong Kexin Industrial Co.,Ltd |
|
|
|||||||||||||||||||||||||||||
2SA1037/AK-R Datasheet(HTML) 1 Page - Guangdong Kexin Industrial Co.,Ltd |
|
|

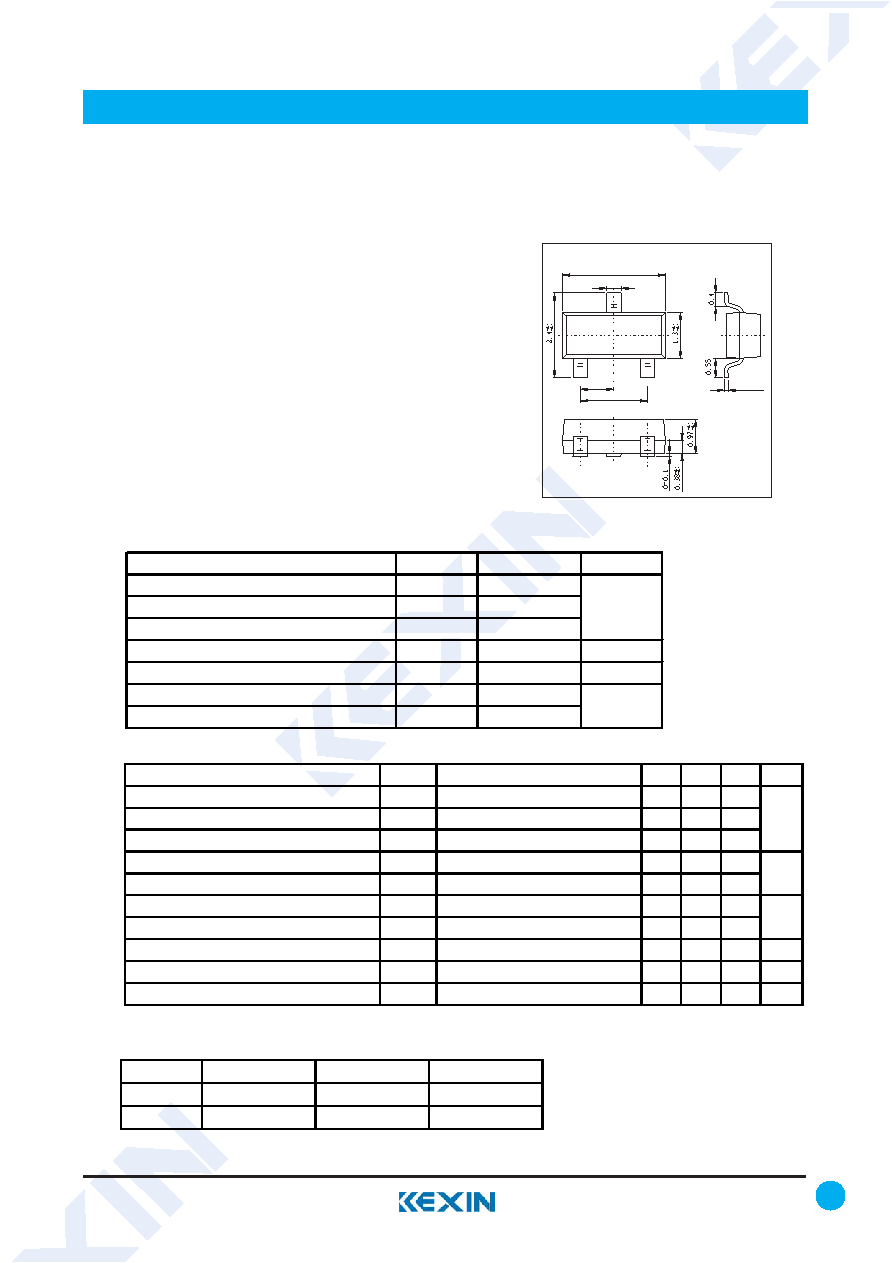

1 / 2 page  SMD Type www.kexin.com.cn 1 Transistors ■ Features ● Collector Current Capability IC=150mA ● Collector Emitter Voltage VCEO=-50V ● Complments the 2SC2412 ■ Absolute Maximum Ratings Ta = 25℃ Parameter Symbol Rating Unit Collector - Base Voltage VCBO -60 Collector - Emitter Voltage VCEO -50 Emitter - Base Voltage VEBO -6 Collector Current - Continuous IC 150 mA Collector Power Dissipation PC 200 mW Junction Temperature TJ 150 Storage Temperature range Tstg -55 to 150 V ℃ ■ Electrical Characteristics Ta = 25℃ ■ Classification of hfe Parameter Symbol Test Conditions Min Typ Max Unit Collector- base breakdown voltage VCBO Ic= -50 μA， IE=0 -60 Collector- emitter breakdown voltage VCEO Ic= -1 mA， IB=0 -50 Emitter - base breakdown voltage VEBO IE= -50μA， IC=0 -6 Collector-base cut-off current ICBO VCB= -60 V , IE=0 -0.1 Emitter cut-off current IEBO VEB= -6V , IC=0 -0.1 Collector-emitter saturation voltage VCE(sat) IC=-50 mA, IB=-5mA -0.5 Base-emitter saturation voltage VBE(sat) IC=-50 mA, IB=-5mA -1.2 DC current gain hFE VCE= -6V, IC= -1mA 120 560 Collector output capacitance Cob VCB= -12V, IE= 0,f=1MHz 4 5 pF Transition frequency fT VCE= -12V, IC= -2mA,f=30MHz 140 MHz V uA V PNP Transistors 2SA1037 (2SA1037AK) Type 2SA1037/AK-Q 2SA1037/AK-R 2SA1037/AK-S Range 120-270 180-390 270-560 Marking FQ FR FS 0.4 +0.1 -0.1 2.9 +0.1 -0.1 0.95 +0.1 -0.1 1.9 +0.1 -0.1 1.Base 2.Emitter 3.collector 1 2 3 Unit: mm SOT-23 0.1 +0.05 -0.01 |
