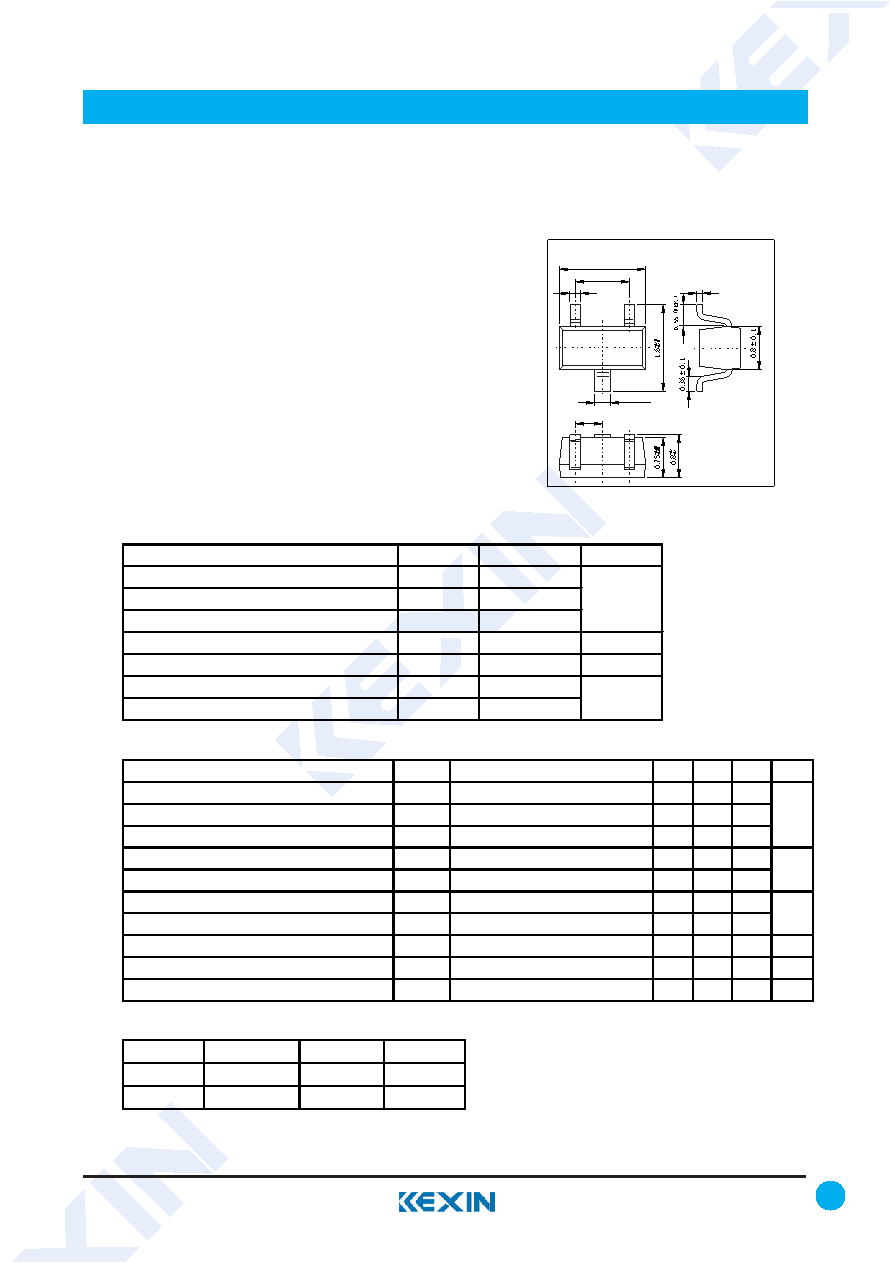

1 / 2 page  SMD Type www.kexin.com.cn 1 Transistors PNP Transistors 2SA1774 ■ Features ● Reduces Board Space ● High hFE ● Low VCE(sat) 1. Base 2. Emitter 3. Collecter ■ Absolute Maximum Ratings Ta = 25℃ Parameter Symbol Rating Unit Collector - Base Voltage VCBO -60 Collector - Emitter Voltage VCEO -50 Emitter - Base Voltage VEBO -6 Collector Current - Continuous IC -150 mA Collector Power Dissipation PC 150 mW Junction Temperature TJ 150 Storage Temperature range Tstg -55 to 150 V ℃ ■ Electrical Characteristics Ta = 25℃ Parameter Symbol Test Conditions Min Typ Max Unit Collector- base breakdown voltage VCBO Ic= -50 μA， IE=0 -60 Collector- emitter breakdown voltage VCEO Ic= -1 mA， IB=0 -50 Emitter - base breakdown voltage VEBO IE= -50μA， IC=0 -6 Collector-base cut-off current ICBO VCB= -60 V , IE=0 -100 Emitter cut-off current IEBO VEB= -6V , IC=0 -100 Collector-emitter saturation voltage (Note.1) VCE(sat) IC=-50 mA, IB=-5mA -0.5 Base - emitter saturation voltage (Note.1) VBE(sat) IC=-50 mA, IB=-5mA -1.2 DC current gain hFE VCE= -6V, IC= -1mA 120 560 Collector output capacitance Cob VCB= -12V, IE= 0mA,f=1MHz 3.5 5 pF Transition frequency fT VCE= -12V, IC= -2mA,f=30MHz 140 MHz V V nA ■ Classification of hfe Type 2SA1774-Q 2SA1774-R 2SA1774-S Range 120-270 180-390 270-560 Marking FQ FR FS SOT-523 m m : t i n U 0.2 +0.05 -0.05 1.0 +0.1 -0.1 1.6 +0.1 -0.1 0.3±0.05 0.5 +0.1 -0.1 0.15±0.05 1 2 3 |
