Part #	MDH-21-R

Description	6.3 mm x 32 mm Ferrule and axial lead, high breaking capacity, high I2t ceramic tube fuses

PDF	4 Pages

Scroll/Zoom	100%

Manufacturer	EATON [Eaton All Rights Reserved.]

Direct Link	https://www.eaton.com

Logo

2 / 4 page

Technical Data

10530

Effective April 2016

MDH-R

6.3 mm x 32 mm Ferrule and axial lead, high breaking

capacity, high I2t ceramic tube fuses

www.eaton.com/elx

Electrical characteristics

1.0I

min

hour

2.0I

max

minute

21A

Product specifications

Part number1

Ferrule

Axial lead

Current

rating (A )

Voltage

rating

AC)

Voltage

rating

DC)

Interrupting rating at

rated AC voltage (50

Hz)

AC)

Interrupting rating at

rated DC voltage

DC)

Typical D C

cold

resistance

(Ω)

Typical

pre-arcing1

I2t (A2s)

MDH- 21-R

MDH-V- 21-R

600

150

200

0.0024

5100

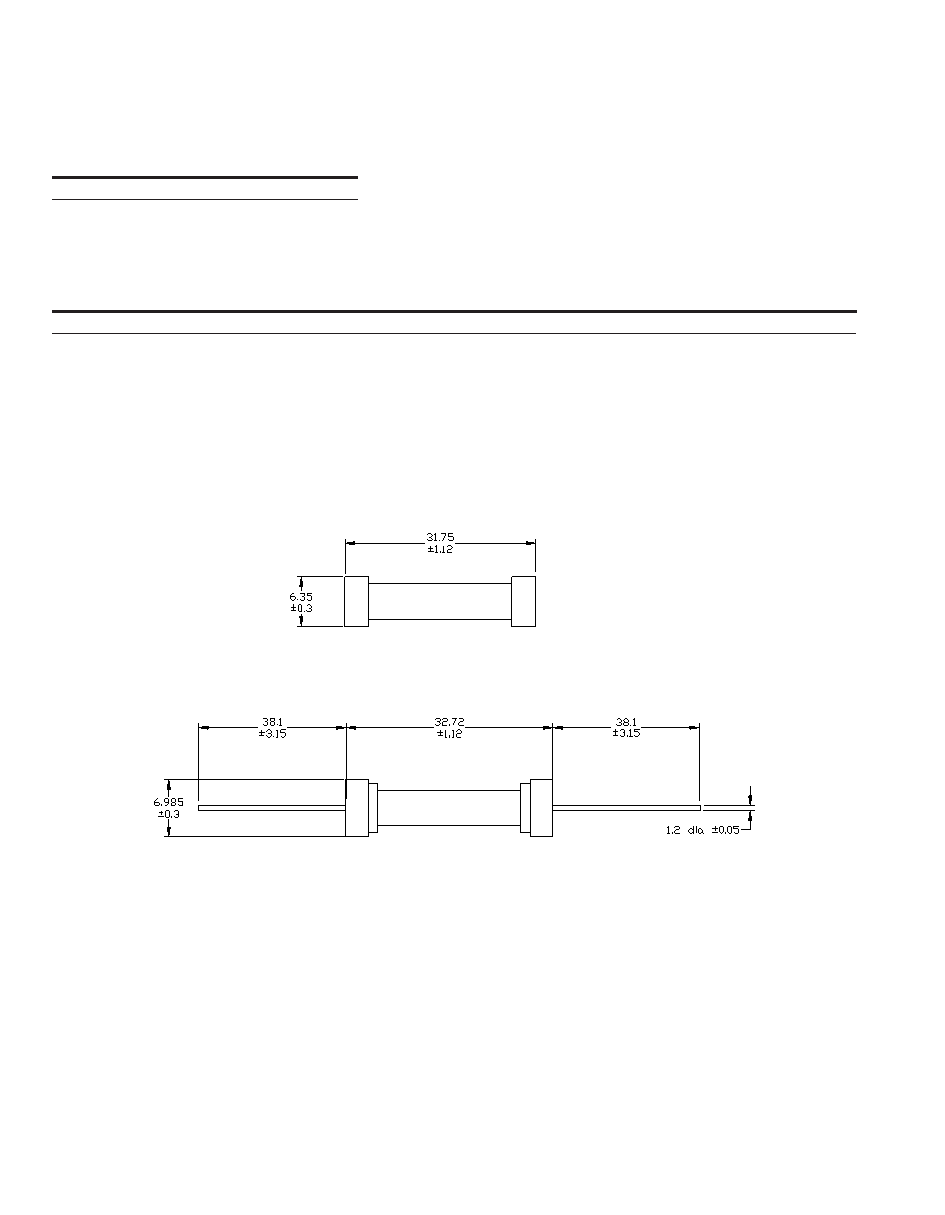

Dimensions–mm

Drawing not to scale

1. Typical I2t value measured at 10 times of rated current under DC.

2. Part Number Definition: MDH-x-xx-R

x = Use “V” code for axial lead, leave blank for ferrule

xx= Ampere rating

-R suffix = RoHS compliant
