2 / 3 page

Technical Data 4406

Effective June 2017

S505H

5 mm x 20 mm 400 Vdc/500-600 Vac time-delay fuses

www.eaton.com/electronics

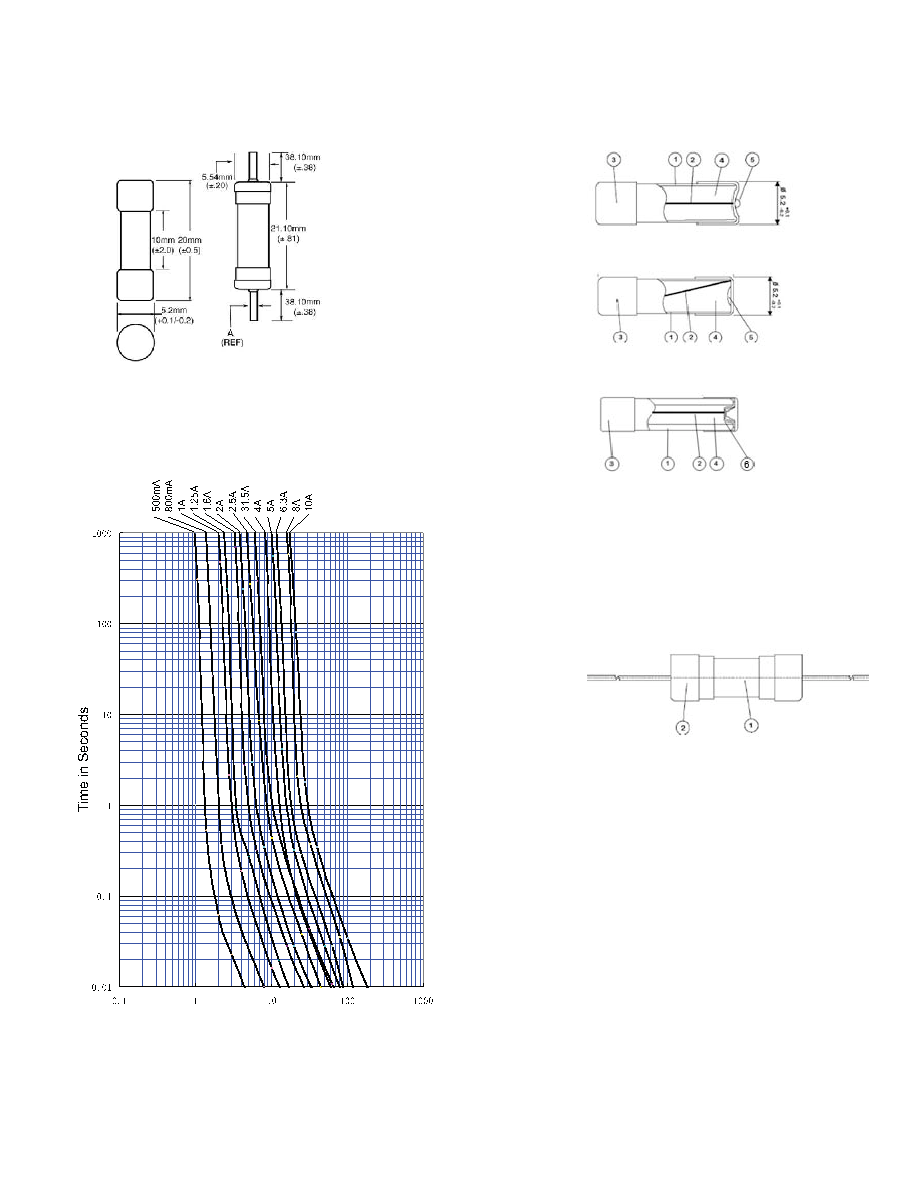

Dimensions - mm

500-800mA

2 Amps & Above

1. Ceramic Tube

2. Wire Fuse Element

3. Plated Fuse Cap

4. Filler

5. Solder

6. Eyelet

Construction

Axial Leaded Versions

1. S505H-XXX-R

2. Axial Leaded Cap

Time-Current Curves

Current in Amps

1-1.6 Amps

A (ref): 0.65 mm (0.5 A - 6.3 A), 0.80 mm (8 A-10 A)
