ADMV4420
Data Sheet
Rev. A | Page 10 of 61
TYPICAL PERFORMANCE CHARACTERISTICS
A 0 dBm external reference at 50 MHz is used with VVPOS1_VCO = VVPOS2_PLL = VVPOS3_CP = VVPOS4_IF = 5 V, RF input power = −40 dBm, and
the PLL loop filter bandwidth = 60 kHz with 45° of phase margin, unless otherwise noted.
IF = 900 MHz, LOW-SIDE INJECTION LO PERFORMANCE
RF minimum and maximum frequencies are limited by the LO frequency = 16.75 GHz to 21.15 GHz.
50
45
40
35
30
25
20
15
10
RF FREQUENCY (GHz)
+85°C
+25°C
–40°C

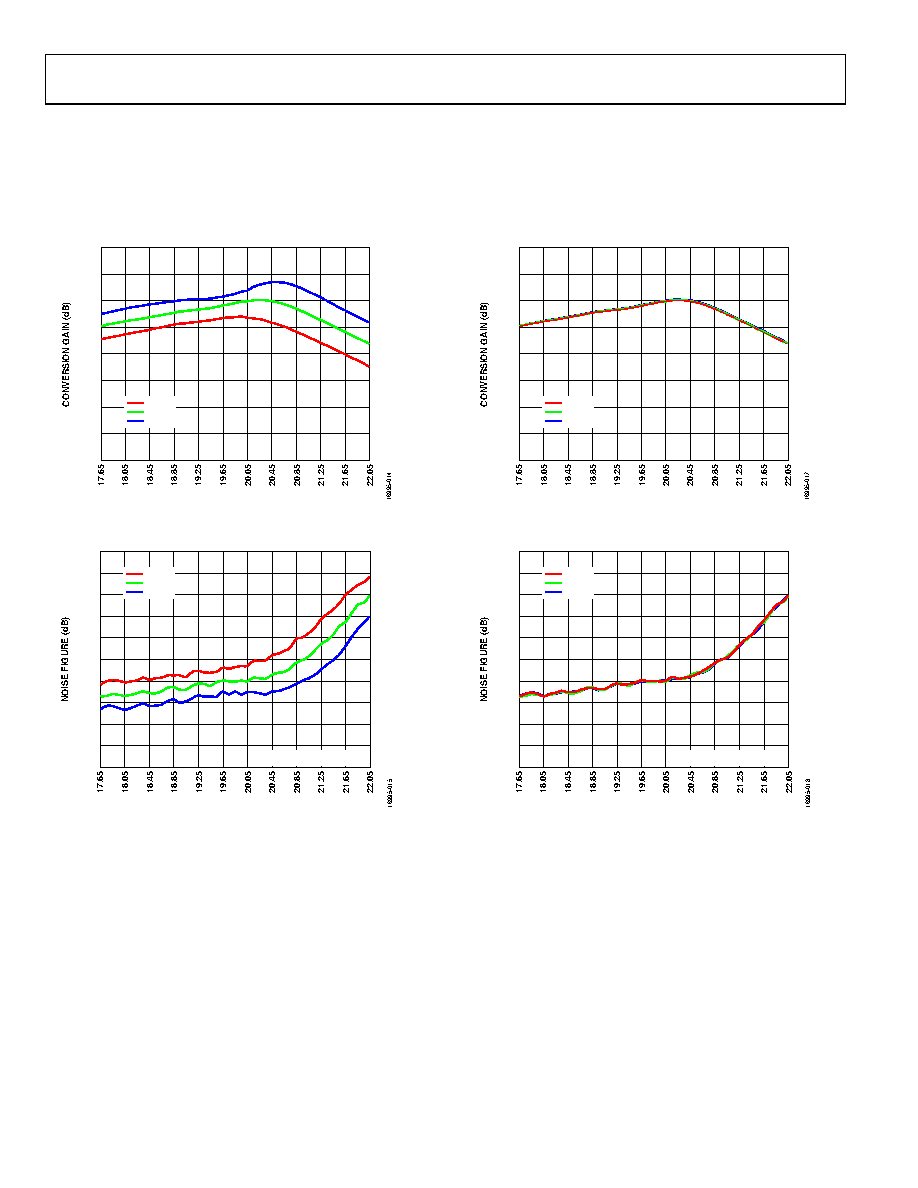

Figure 16. Conversion Gain vs. RF Frequency at Various Temperatures
20
18
16
14
12
10
8
4
0
6
2
RF FREQUENCY (GHz)
+85°C
+25°C
–40°C
NO FILTERING APPLIED
Figure 17. Noise Figure vs. RF Frequency at Various Temperatures
50
45
40
35
30
25
20
15
10
RF FREQUENCY (GHz)
5.25V
5.00V
4.75V
Figure 18. Conversion Gain vs. RF Frequency at Various Supply Voltages,
TA = 25°C
20
18
16
14
12
10
8
4
0
6
2
RF FREQUENCY (GHz)
5.25V
5.00V
4.75V
NO FILTERING APPLIED
Figure 19. Noise Figure vs. RF Frequency at Various Supply Voltages,
TA = 25°C
