TECHNICAL DATA SHEET
产品数据表
TE-R8-3 XXXX
<FOR COB MODULE>
4 / 12
PREPARED BY：Lisa.y
TE-R8
SERIES
A/3
Revision issued in 2014.

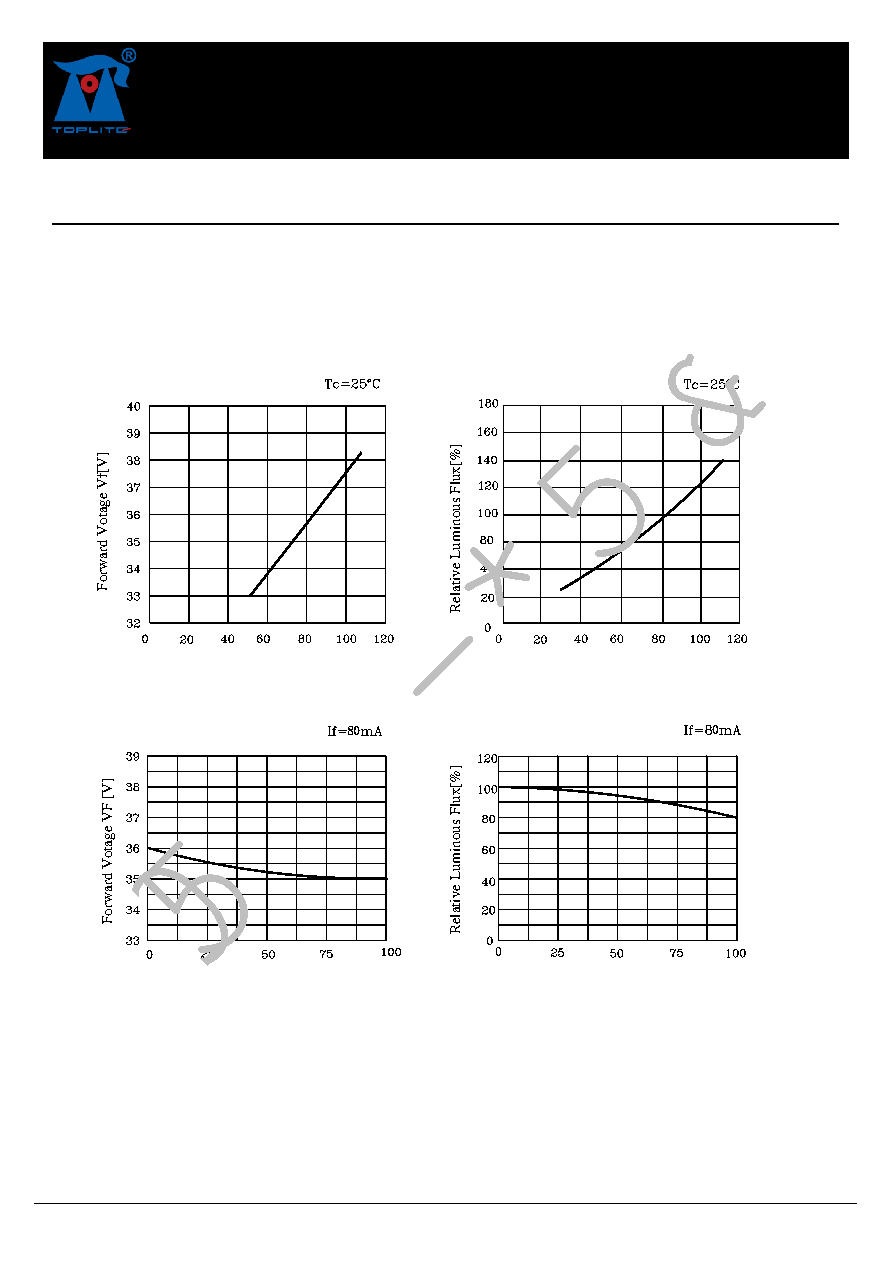

4-3. CHARACTERISTICS DIAGRAM (TYP.)
光电曲线特征图
Case Temperature Vs. Forward Votage
Case Temperature Tc[°C]
Case Temperature Tc[°C]
Case Temperature Vs. Relative Luminous Flux
Forward Current IF[mA]
Forward Votage Vs. Forward Current
Forward Current IF [mA]
Forward Current Vs.Relative Luminous Flux
