ASX02108-R Datasheet(PDF) 1 Page - PUI audio inc. |
|
|
|||||||||||||||||||||||||||||
ASX02108-R Datasheet(HTML) 1 Page - PUI audio inc. |
|
|

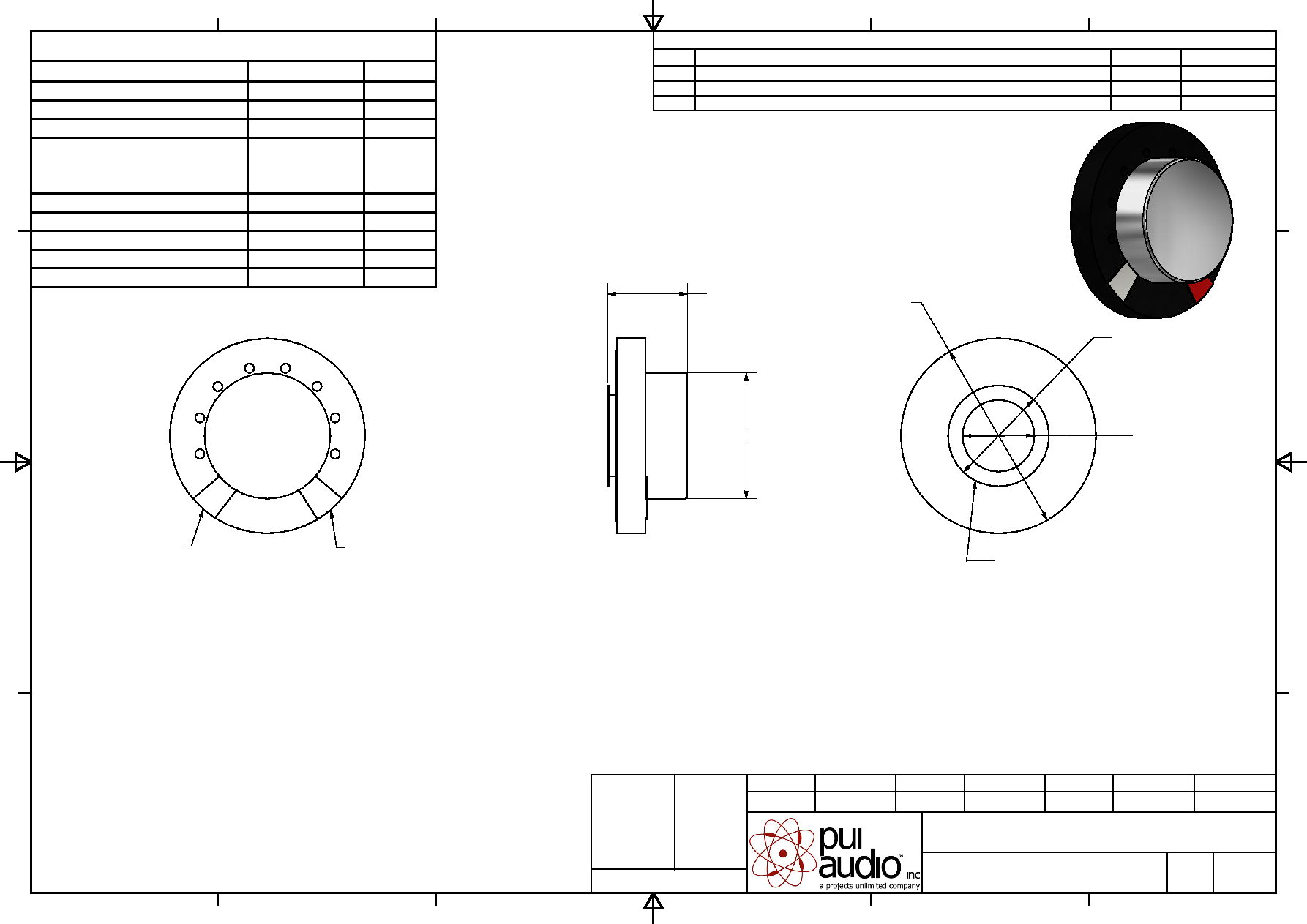

1 / 1 page  Exciter ASX02108-R M.V. M.V. B.R. 5/18/2016 - Designed by Checked by Approved by Drawn Date 1 / 1 Edition Sheet Date 5/18/2016 Date 5/18/2016 Date 5/18/2016 UNLESS OTHERWISE SPECIFIED: DIMENSIONS ARE IN MILLIMETERS, TOLERANCES ARE 0.5 AND ANGLES ARE 3 . ASX02108-R.idw A3 SIZE REVISION HISTORY LTR DESCRIPTION DATE APPROVED - RELEASED FROM ENGINEERING 5/18/16 A REVISED AVERAGE SPL 6/24/16 B.R. B ADDED NOTE 4 6/27/16 B.R. SPECIFICATIONS PARAMETERS VALUES UNITS RATED INPUT POWER 0.25 W MAX INPUT POWER 0.5 W IMPEDANCE 8 15% OHM AVG. SPL 1W/0.1M ON 4MM THICK PLA PANEL (AT 0.5, 1.0, 2.0, 5.0 kHz) 71 dBA RESONANT FREQUENCY 640 20% Hz FREQUENCY RANGE Fo~ 10,500 Hz MAGNET MATERIAL NdFeB - OPERATING TEMPERATURE -20~ +60 C WEIGHT 4.5 grams THIS DOCUMENT CONTAINS DATA PROPRIETARY TO PROJECTS UNLIMITED, INC. ANY USE OR REPRODUCTION, IN ANY FORM, WITHOUT PRIOR WRITTEN PERMISSION OF PROJECTS UNLIMITED, INC. IS PROHIBITED. 2003, Projects Unlimited Inc. NOTES: 1. ALL DIMENSIONS ARE IN MILLIMETERS. 2. SPECIFICATIONS SUBJECT TO CHANGE OR WITHDRAWL WITHOUT NOTICE. 3. THIS PART IS RoHS 2011/65/EU COMPLIANT. 4. FOR APPLICATIONS THAT ARE TO BE SUBJECTED TO EXTERNAL FORCE, SHOCK, OR VIBRATION, PUI AUDIO RECOMMENDS SOLID MECHANICAL REINFORCEMENT TO ENSURE RIGID COUPLING BEYOND THAT PROVIDED BY THE 3M VHB F-9473PC DOUBLE-SIDED TAPE. 20.9 0.3 13.5 10.8 7.7 MOUNTING RING 3M VHB DOUBLE-SIDED TAPE 8.5 0.5 SOLDER PAD (+) SOLDER PAD (-) |
