SWC18FC-R27MA datasheet(1/2 Pages) TAI-TECH

Part #	SWC18FC-R27MA

Description	Winding Type Chip Inductor

PDF	2 Pages

Scroll/Zoom	100%

Manufacturer	TAI-TECH [TAI-TECH Advanced Electronics Co., Ltd.]

Direct Link	https://www.tai-tech.com.tw/en/

Logo

1 / 2 page

TAI-TECH

www.tai-tech.com.tw

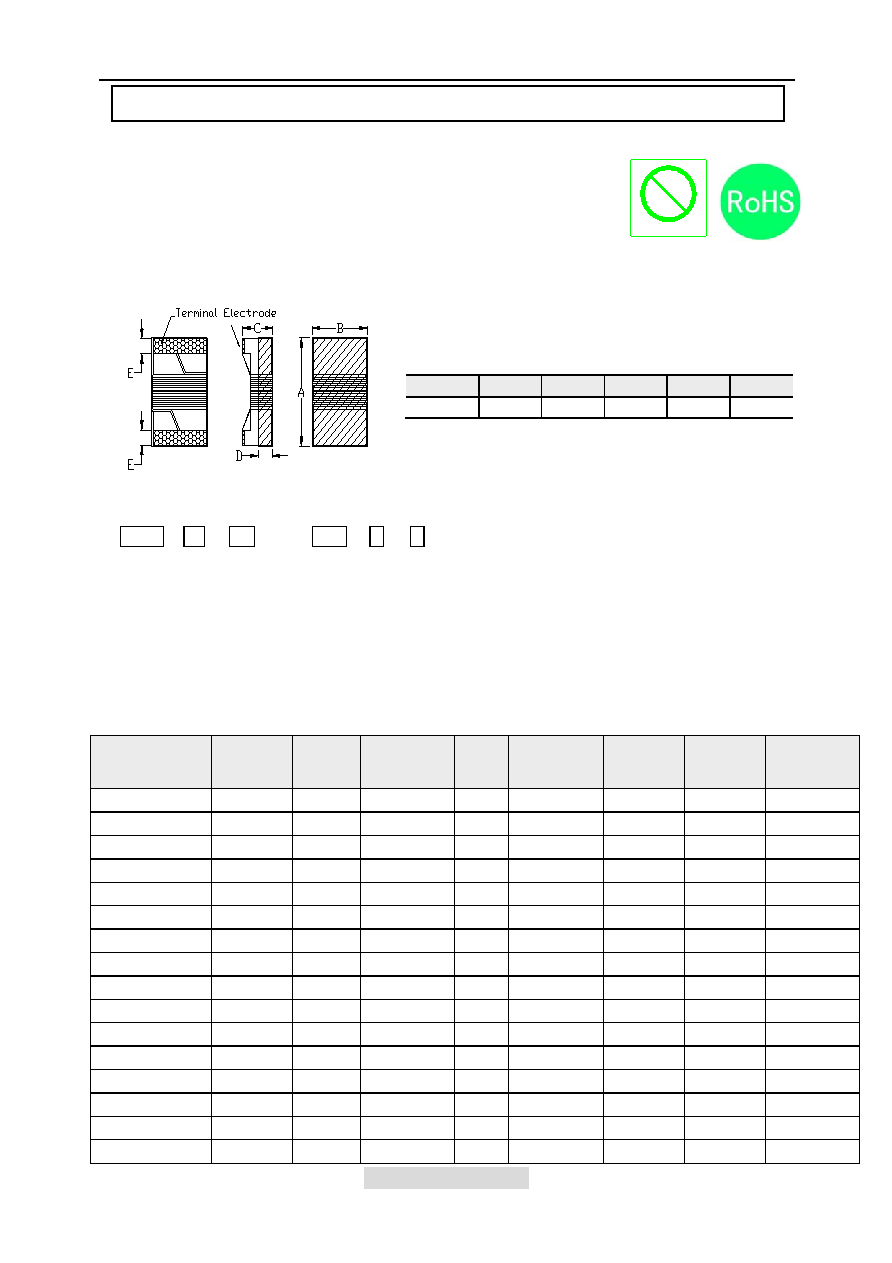

1. Features

2. Dimensions

3. Part Numbering

4. Specification

1. Ferrite core wire wound construction.

2. High Reliability due to wire wound type construction.

3. Small footprint as well as low profile.

4. Application for DC power line.

5. 100% Lead(Pb) & Halogen-Free and RoHS compliant.

6. Operating temperature -40~+125℃ (Including self - temperature rise)

SWC

18

FC

-

47N

K

A

B

C

D

E

F

A: Series

B: Dimension

L x W

C: Lead free type

D: Inductance

47N=0.047 uH

E: Inductance Tolerance

K=±10%; M=±20%

F: Control S/N

Size

A

B

C

D

E

SWC18FC

1.80 max.

1.20 max.

0.38 ref.

0.35±0.1

Unit:mm

Winding Type Chip Inductor

SWC18FC-SERIES

TAI-TECH

Part Number

Inductance

(uH)

Tolerance

Test Frequency

(Hz)

Q

min.

Test Frequency

(MHz)

SRF

(MHz) min.

DCR

(Ω) max.

Rated Current

(mA) max.

SWC18FC-47N□A

0.047

K,M

0.5V/7.96M

10

7.96

1500

0.075

1400

SWC18FC-R10□A

0.10

K,M

0.5V/7.96M

10

7.96

1150

0.13

1400

SWC18FC-R12□A

0.12

K,M

0.5V/7.96M

10

7.96

1100

0.15

1400

SWC18FC-R15□A

0.15

K,M

0.5V/7.96M

10

7.96

1050

0.15

1300

SWC18FC-R18□A

0.18

K,M

0.5V/7.96M

10

7.96

950

0.15

1300

SWC18FC-R22□A

0.22

K,M

0.5V/7.96M

10

7.96

800

0.15

950

SWC18FC-R24□A

0.24

K,M

0.5V/7.96M

10

7.96

800

0.31

620

SWC18FC-R27□A

0.27

K,M

0.5V/7.96M

10

7.96

775

0.20

710

SWC18FC-R33□A

0.33

K,M

0.5V/7.96M

10

7.96

725

0.35

620

SWC18FC-R39□A

0.39

K,M

0.5V/7.96M

10

7.96

620

0.39

600

SWC18FC-R47□A

0.47

K,M

0.5V/7.96M

10

7.96

540

0.43

570

SWC18FC-R56□A

0.56

K,M

0.5V/7.96M

10

7.96

525

0.47

550

SWC18FC-R68□A

0.68

K,M

0.5V/7.96M

10

7.96

460

0.52

470

SWC18FC-R82□A

0.82

K,M

0.5V/7.96M

10

7.96

410

0.69

400

SWC18FC-1R0□A

1.0

K,M

0.5V/7.96M

10

7.96

190

0.81

400

SWC18FC-1R2□A

1.2

K,M

0.5V/7.96M

10

7.96

160

0.87

370

Halogen-free

Halogen
