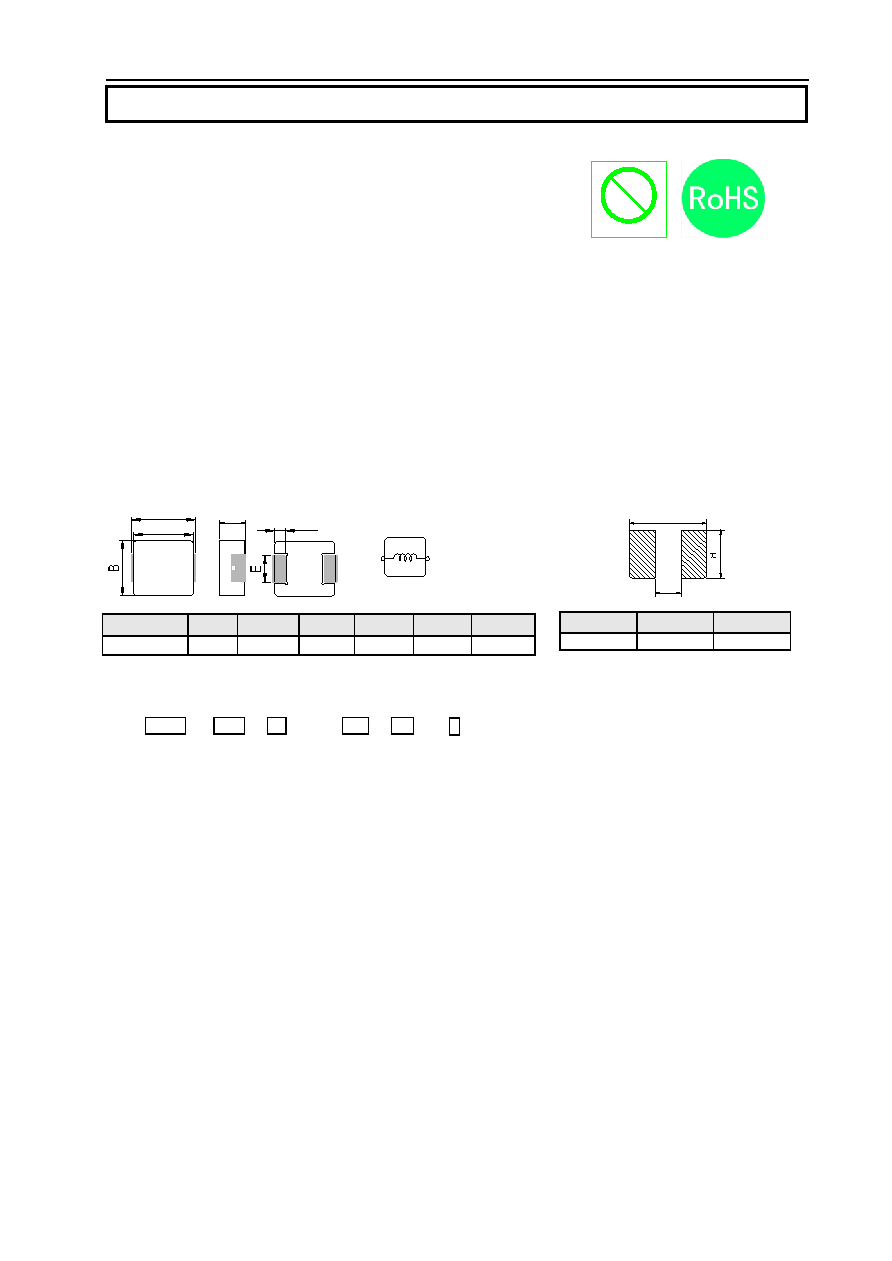

TAI-TECH

1. Features

2. Applications

3. Dimensions

A

C

D

R22

1901H

A'

4. Part Numbering

SMD Power Inductor

TMHC0803SP-SERIES(N)-D

1. Shielded construction.

2. Capable of corresponding high frequency .

3. Low loss realized with low DCR.

4. High performance (Isat) realized by metal dust core.

5. Ultra low buzz noise, due to composite construction.

6. 100% Lead(Pb)-Free and RoHS compliant.

7. Operating temperature -40~+125℃(Including self - temperature rise)

1. DC/DC converters in distributed power systems.

2. DC/DC converter for Field Programmable Gate Array(FPGA).

3. Battery powered devices.

4. Thin type on-board power supply module for exchanger.

5. VRM for server.

6. High current, low profile POL converters.

7. PDA/notebook/desktop/server and battery powered devices.

TMHC

0803

SP

-

R22

MN

-

D

A

B

C

D

E

F

A: Series

B: Dimension

BxC

C: Type

Standard.

D: Inductance

R22=0.22uH.

E: Inductance Tolerance

M=±20%

F: Code

Marking: Black.R22 and 1901H (19:YY, 01:WW, follow production date, H:P/N).

Recommend PC Board Pattern

L

G

L(mm)

G(mm)

H(mm)

9.5

4.0

5.5

Note: 1. The above PCB layout reference only.

2. Recommend solder paste thickness at

0.15mm and above.

Series

A

’

B

C

D

E

TMHC0803

8.8±0.4

7.9±0.2

8.2±0.3

2.8±0.2

1.4±0.3

5.0±0.3

Unit:mm

Halogen-free

Halogen
