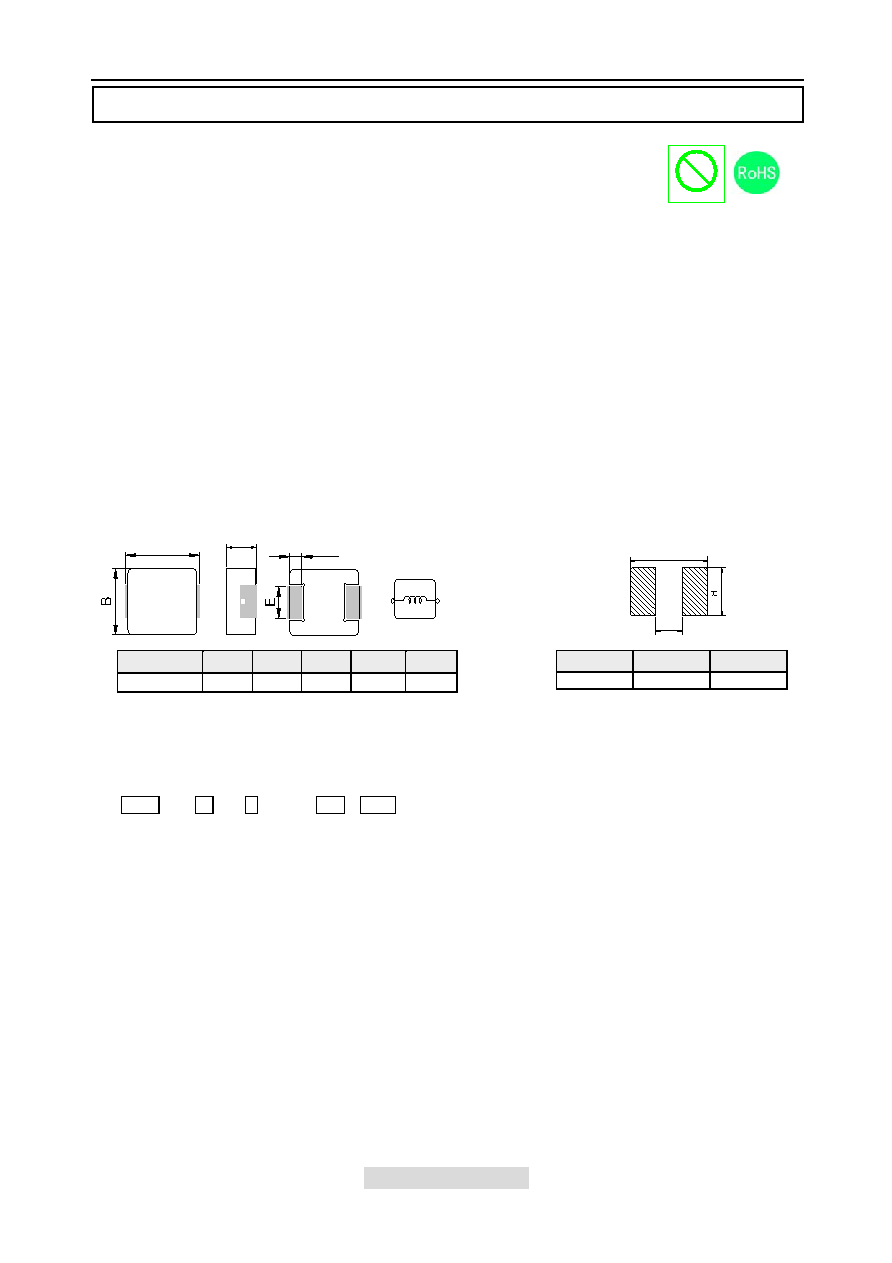

1. Features

2. Applications

3. Dimensions

A

C

D

1R0

1901

4. Part Numbering

SMD Power Inductor

VMPI73A-Series

Halogen-free

Halogen

1. Shielded construction.

2. Capable of corresponding high frequency

3. Low loss realized with low DCR.

4. High performance (Isat) realized by metal dust core.

5. Ultra low buzz noise, due to composite construction.

6. 100% Lead(Pb)-Free and RoHS compliant.

7. Operating temperature: -40~+125℃(Including self-temperature rise)

1. DC/DC converters in distributed power systems.

2. DC/DC converter for Field Programmable Gate Array(FPGA).

3. Battery powered devices.

4. Thin type on-board power supply module for exchanger.

5. VRM for server.

6. High current, low profile POL converters.

7. PDA/notebook/desktop/server and battery powered devices.

Recommend PC Board Pattern

L

G

L(mm)

G(mm)

H(mm)

8.0

3.7

3.4

Note: 1. The above PCB layout reference only.

2. Recommend solder paste thickness at

0.15mm and above.

Series

A

B

C

D

E

VMPI73A

7.1±0.3

6.6±0.2

2.8±0.2

1.6±0.3

3.0±0.2

Unit:mm

VMPI

73

A

-

1R0 MDA

A

B

C

D

E

A: Series

B: Dimension

BxC

C: Type

Standard.

D: Inductance

1R0=1.0uH

E: Inductance Tolerance

K=±10%，L=±15%，M=±20%，N=±25%，Y=±30%

Marking: Black.1R0 and 1901(19 YY, 01 WW,follow production date).

Similar Part No. - VMPI73A-R22MDA
