1 / 3 page

TAI-TECH

www.tai-tech.com.tw

P1

1. Features

2. Applications

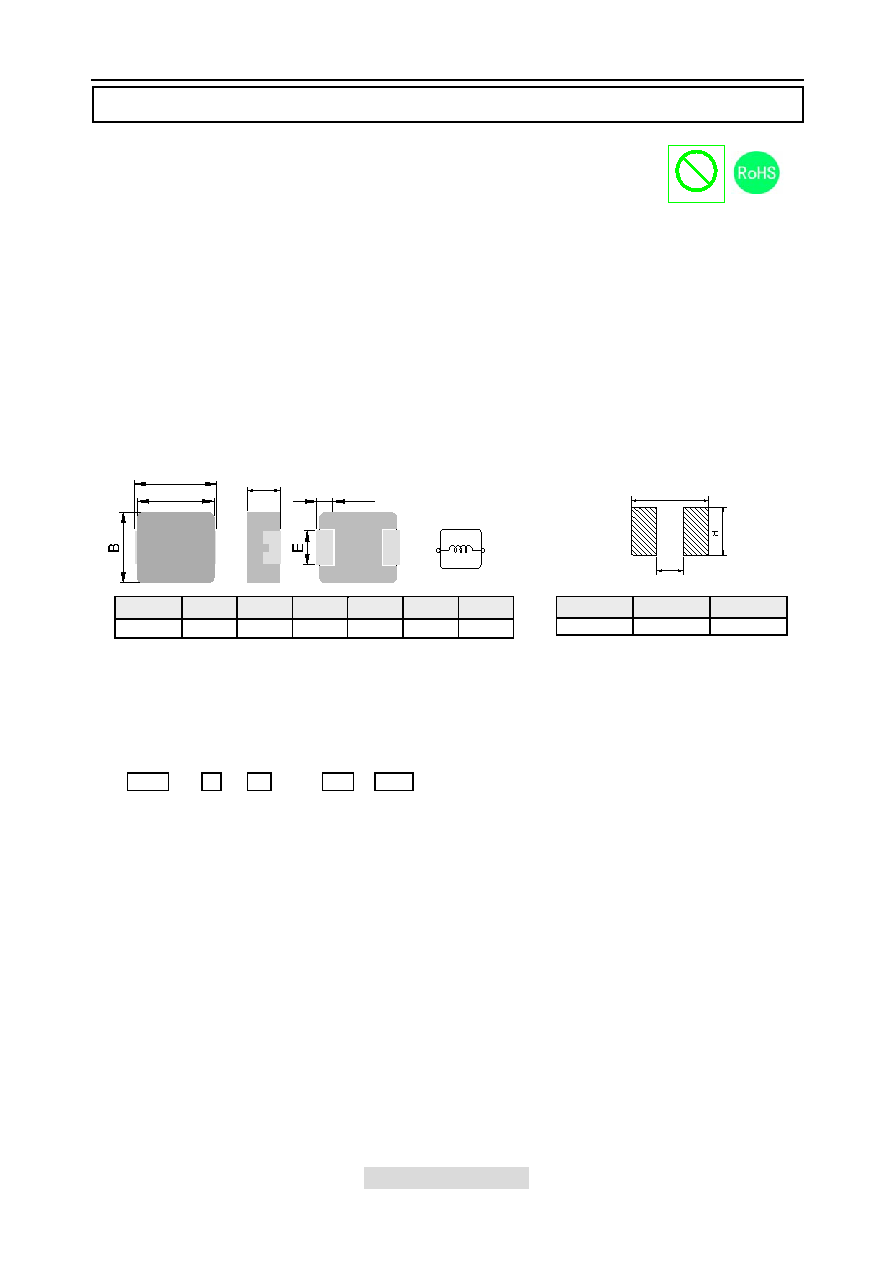

3. Dimensions

C

1R0

D

A

A`

4. Part Numbering

SMD Power Inductor

VMPI42CP-Series

Halogen-free

Halogen

Recommend PC Board Pattern

L(mm)

G(mm)

H(mm)

5.2

2.2

2.4

Note: 1. The above PCB layout reference only.

2. Recommend solder paste thickness at

0.12mm and above.

Series

A

A’

B

C

D

E

VMPI42CP

4.45±0.25 3.95±0.20 4.06±0.25

1.8±0.2

0.76±0.30

2.0±0.20

Unit:mm

Note PC power system，incl. IMVP-6

DC/DC converter .

1. Magnetic metal powder inductor.

2. Compact design.

3. High current，low DCR，high efficiency.

4. Very low acoustic noise and very low leakage flux noise.

5. High reliability.

6. 100% Lead(Pb)-Free and RoHS compliant.

7. Operating temperature: -40~+125℃(Including self-temperature rise)

L

G

VMPI

42

CP

-

1R0

MDA

A

B

C

D

E

A: Series

B: Dimension

BxC

C: Type

H: Magnetic metal powder, P:PAD broaden.

D: Inductance

1R0=1.00uH

E: Inductance Tolerance

M=±20%

One-way marking
