DSC2311KL2-R0040

Ordering Information

Ordering Part Number

Industrial Temperature Range

Shipping

Package

DSC2311KL2-R0040

-40°C to +105°C

Tube

6-pin 2.5mm x 2.0mm TDFN

DSC2311KL2-R0040T

-40°C to +105°C

Tape and Reel

6-pin 2.5mm x 2.0mm TDFN

Devices are Green and RoHS compliant. Sample material may have only a partial top mark.

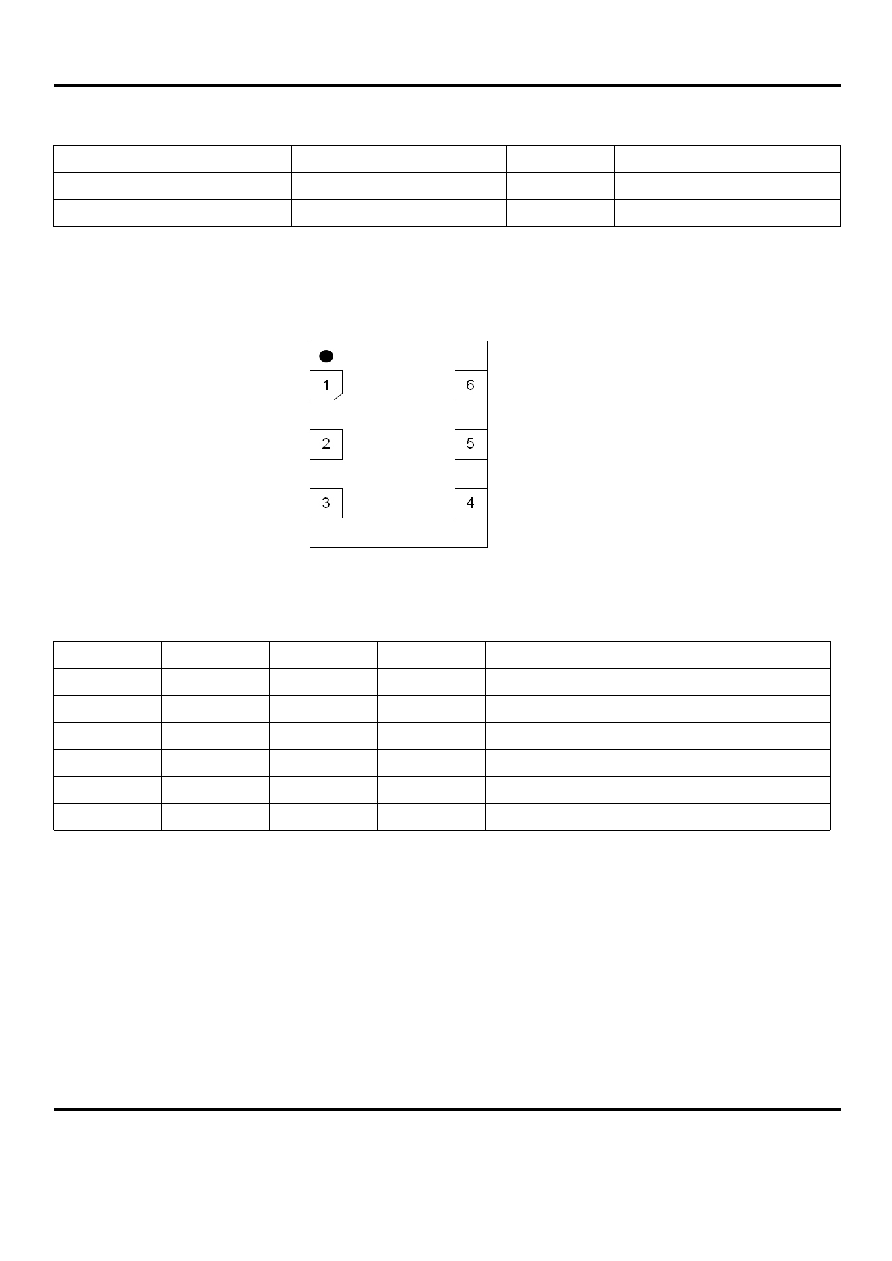

Pin Configuration

6-pin 2.5mm x 2.0mm TDFN

OE

DNC

GND

VDD

CLK1

CLK0

Pin Description

Pin Number

Pin Name

Pin Type

Pin Level

Pin Function

1

OE

I

Active high output enable for CLK0 and CLK1

2

DNC

Leave unconnected or connect to the ground

3

GND

PWR

Power supply ground

4

CLK0

O

LVCMOS

CLK0 output frequency = 40MHz

5

CLK1

O

LVCMOS

CLK1 output frequency = 20MHz

6

VDD

PWR

Power supply
