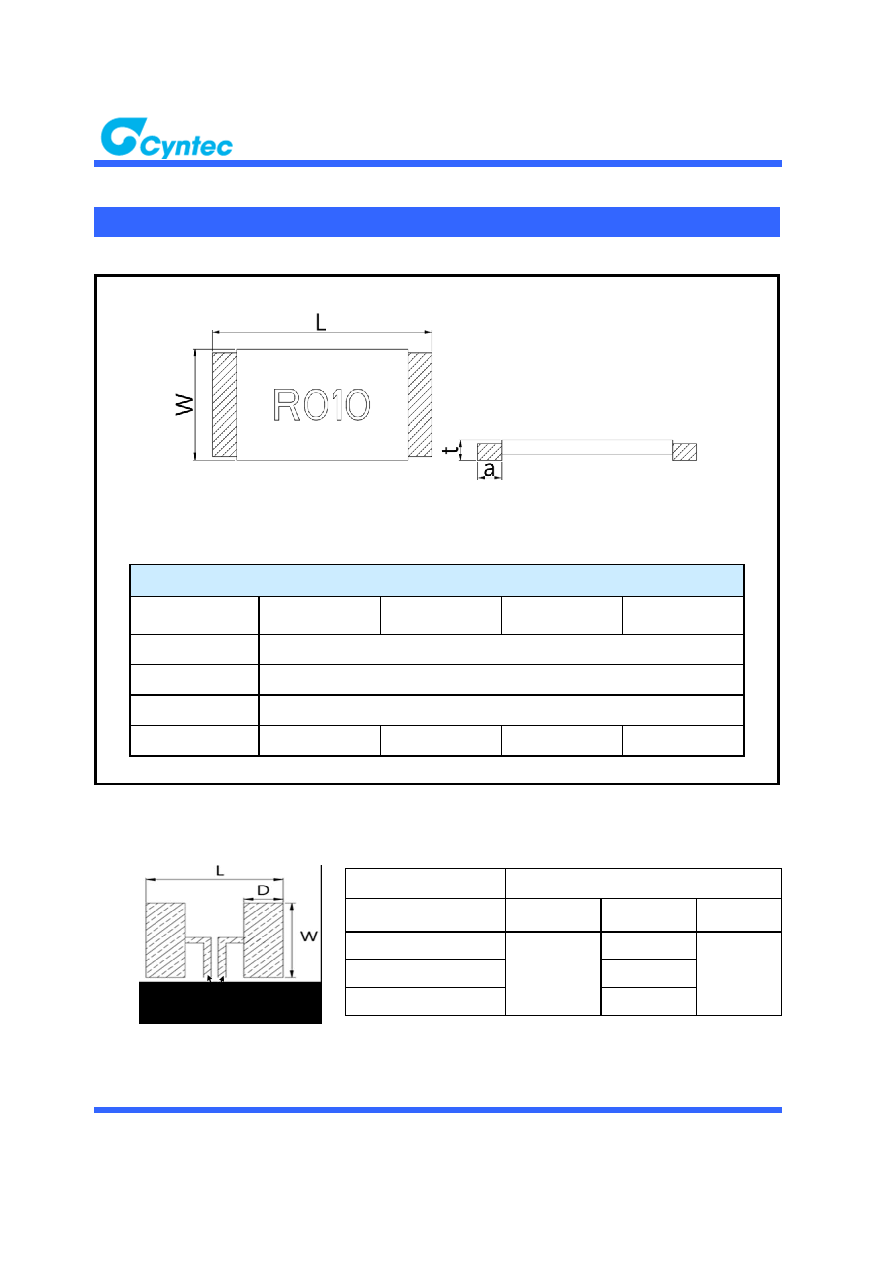

2 / 9 page  DOCUMENT : CYNP-199-032 Page : 2 REVISION : A1 Current Sensor Resistor Recommended PCB Pin Hole Dimensions Outline Drawing : Construction and Dimension Note 1 : 0.3, 0.5, 0.75, 0.8mΩ without marking Dimensions (mm) Resistance Range (mΩ) 0.3, 0.5, 0.75, 0.8 1, 2, 3, 4 5, 6 7, 8, 9, 10,15,20 L 6.35 ± 0.25 W 3.20 ± 0.25 t 0.60 ± 0.25 a 2.55 ± 0.25 2.05 ± 0.25 1.15 ± 0.25 0.70 ± 0.25 Resistance Range Dimensions mΩ W (mm) D (mm) L (mm) 0.3 to 4 3.7 3.2 7.35 5 to 6 2.1 7 to 10 1.65 |
|
|
