Current Sensor Resistor

SCMM2512S2 Series, Current Sensor Resistor (Lead / Halogen Free)

Features / Applications :



High power rating is up to 2W



Welding construction; excellent long-term stability



Industrial applications & Current Sensor Resistor



Ideal for all types of current sensing, voltage division and pulse applications



RoHS compliant

Electrical Specifications :

Feature

2 W

Resistance Value

0.3 to 20 mΩ

Temperature Coefficient of Resistance (25/125℃)

From 50 ppm/℃

Operation Temperature Range

-65℃~ +170℃

Resistance Tolerance

 1%

Maximum Working Voltage (V)

1. For detail information refer to the table on page 3 P/N list

2. For resistors are operated at ambient temperature in excess of 70℃, the maximum load shall be

derated in accordance with the following curve.

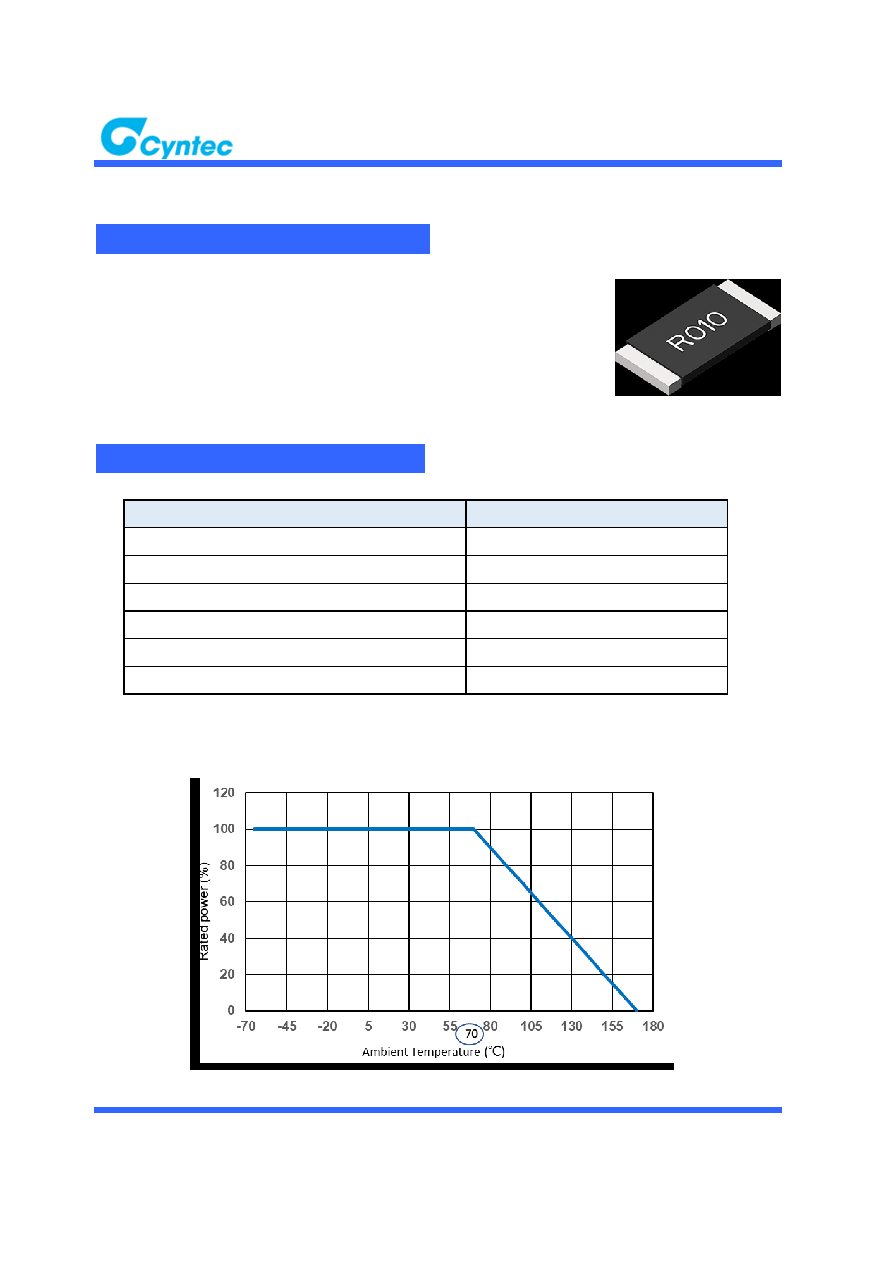

Figure 1.：Power derating curve at ambient temperature
