HMLQ20161T-R24MDR Datasheet(PDF) 3 Page - Cyntec Co., Ltd.

Part # HMLQ20161T-R24MDR
Description  Power Choke Coil HMLQ20161T MDR type
PDF  3 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Manufacturer  CYNTEC [Cyntec Co., Ltd.]
Direct Link  http://www.cyntec.com/
Logo CYNTEC - Cyntec Co., Ltd.

HMLQ20161T-R24MDR Datasheet(HTML) 3 Page - Cyntec Co., Ltd.

  HMLQ20161T-R24MDR Datasheet HTML 1Page - Cyntec Co., Ltd. HMLQ20161T-R24MDR Datasheet HTML 2Page - Cyntec Co., Ltd. HMLQ20161T-R24MDR Datasheet HTML 3Page - Cyntec Co., Ltd.
Zoom Inzoom in Zoom Outzoom out
 3 / 3 page
background image
CYNTEC CO., LTD.
乾坤科技股份有限公司
Oct., 2019
DOCUMENT
: HMLQ20161T-000
REVISION
: A3
PAGE
: 3 OF 3

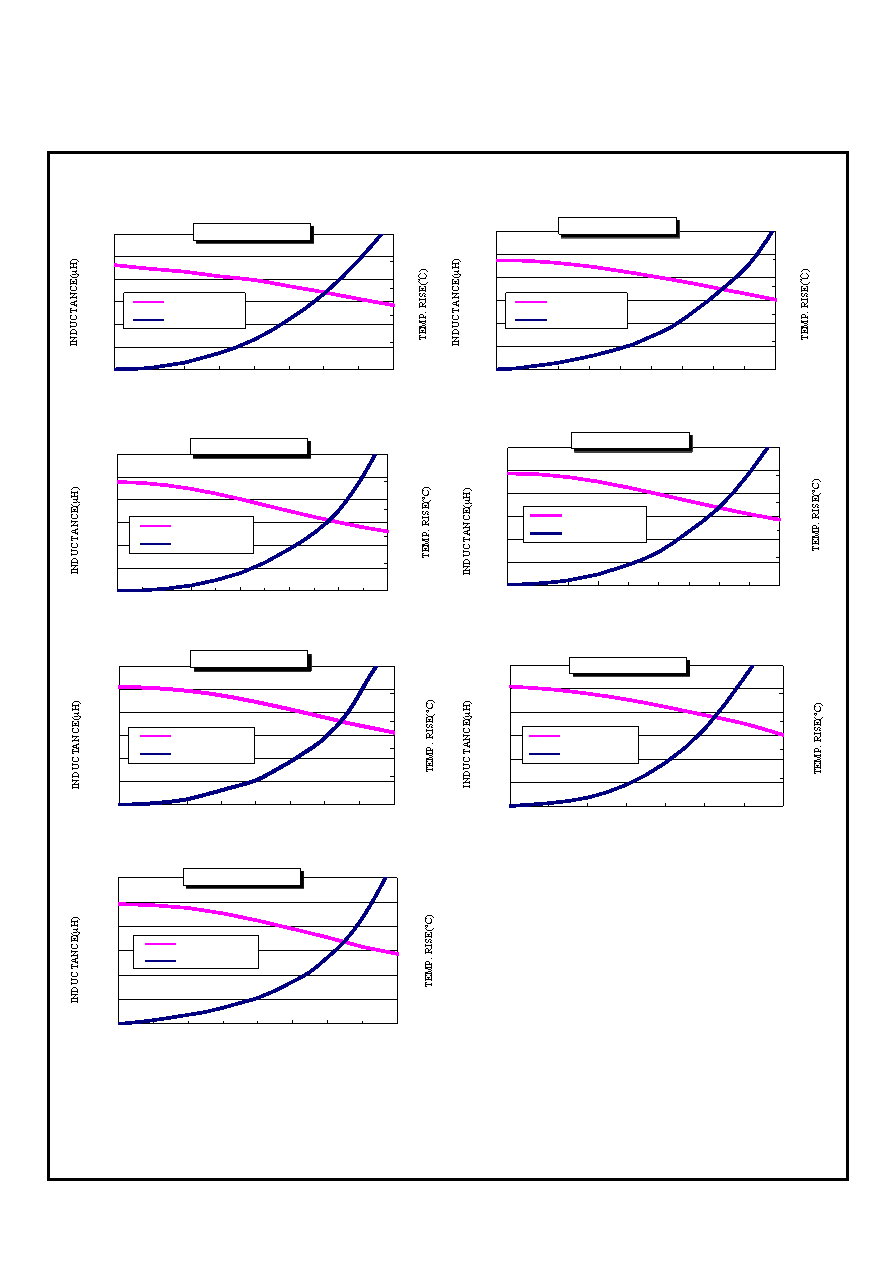

Current Characteristic
0
20
40
60
80
100
0.00
0.05
0.10
0.15
0.20
0.25
0.30
01234
5678
DC BIAS(Amps)
HMLQ20161T-R24MDR
INDUCTANCE(μH)
TEMP. RISE(℃)
0
20
40
60
80
100
0.00
0.07
0.14
0.21
0.28
0.35
0.42
0.0
0.8
1.6
2.4
3.2
4.0
4.8
5.6
6.4
7.2
DC BIAS(Amps)
HMLQ20161T-R33MDR
INDUCTANCE(μH)
TEMP. RISE(℃)
0
20
40
60
80
100
0.00
0.10
0.20
0.30
0.40
0.50
0.60
0.0 0.6 1.2 1.8 2.4 3.0 3.6 4.2 4.8 5.4 6.0 6.6
DC BIAS(Amps)
HMLQ20161T-R47MDR
INDUCTNACE(μH)
TEMP. RISE(℃)
0
20
40
60
80
100
0.00
0.14
0.28
0.42
0.56
0.70
0.84
0.0
0.6
1.2
1.8
2.4
3.0
3.6
4.2
4.8
5.4
DC BIAS(Amps)
HMLQ20161T-R68MDR
INDUCTANCE(μH)
TEMP. RISE(℃)
0
20
40
60
80
100
0.00
0.20
0.40
0.60
0.80
1.00
1.20
0.0
0.6
1.2
1.8
2.4
3.0
3.6
4.2
4.8
DC BIAS(Amps)
HMLQ20161T-1R0MDR
INDUCTNACE(μH)
TEMP. RISE(℃)
0
20
40
60
80
100
0.00
0.30
0.60
0.90
1.20
1.50
1.80
0.0
0.5
1.0
1.5
2.0
2.5
3.0
3.5
DC BIAS(Amps)
HMLQ20161T-1R5MDR
INDUCTANCE(μH)
TEMP. RISE(℃)
0
15
30
45
60
75
90
0.00
0.45
0.90
1.35
1.80
2.25
2.70
0.0
0.4
0.8
1.2
1.6
2.0
2.4
2.8
3.2
DC BIAS(Amps)
HMLQ20161T-2R2MDR
INDUCTNACE(μH)
TEMP. RISE(℃)
