PAC1934 Evaluation Board (ADM00805) User’s Guide
DS50002673A-page 26
 2017 Microchip Technology Inc.
3.6.2
Multiple Plots option
For Multiple Plots option, the same results register from all four channels are always
plotted together in each of the four windows. The drop-down menu is used to select
which results are plotted in each window, as shown in Figure 3-13. An example of mul-
tiple plots is displayed in Figure 3-14.

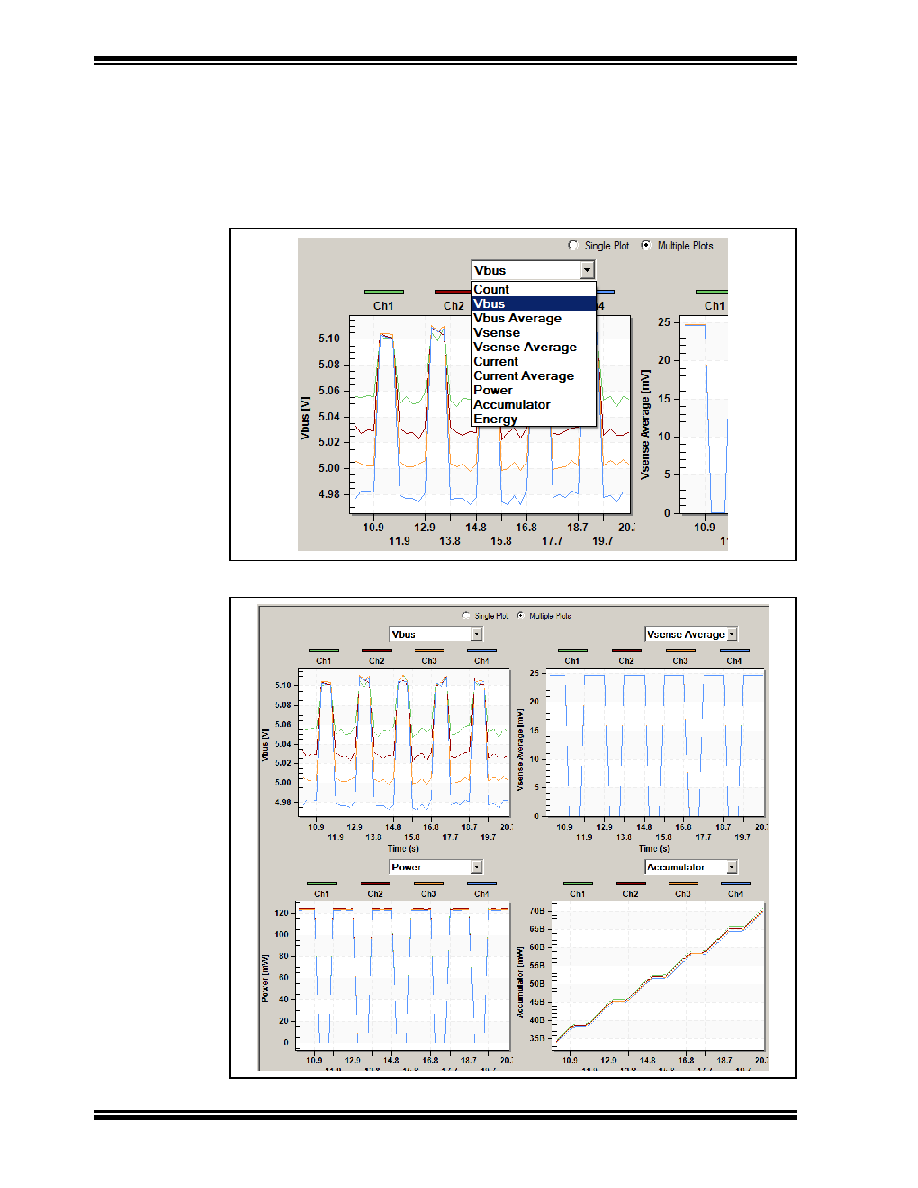

FIGURE 3-13:
MULTIPLE PLOTS WINDOW - DROP-DOWN MENU
FIGURE 3-14:
MULTIPLE PLOTS WINDOW
