IS25LP016D-RMLA3 Datasheet(PDF) 82 Page - Integrated Silicon Solution, Inc |
|
|
|||||||||||||||||||||||||||||
IS25LP016D-RMLA3 Datasheet(HTML) 82 Page - Integrated Silicon Solution, Inc |
|
|

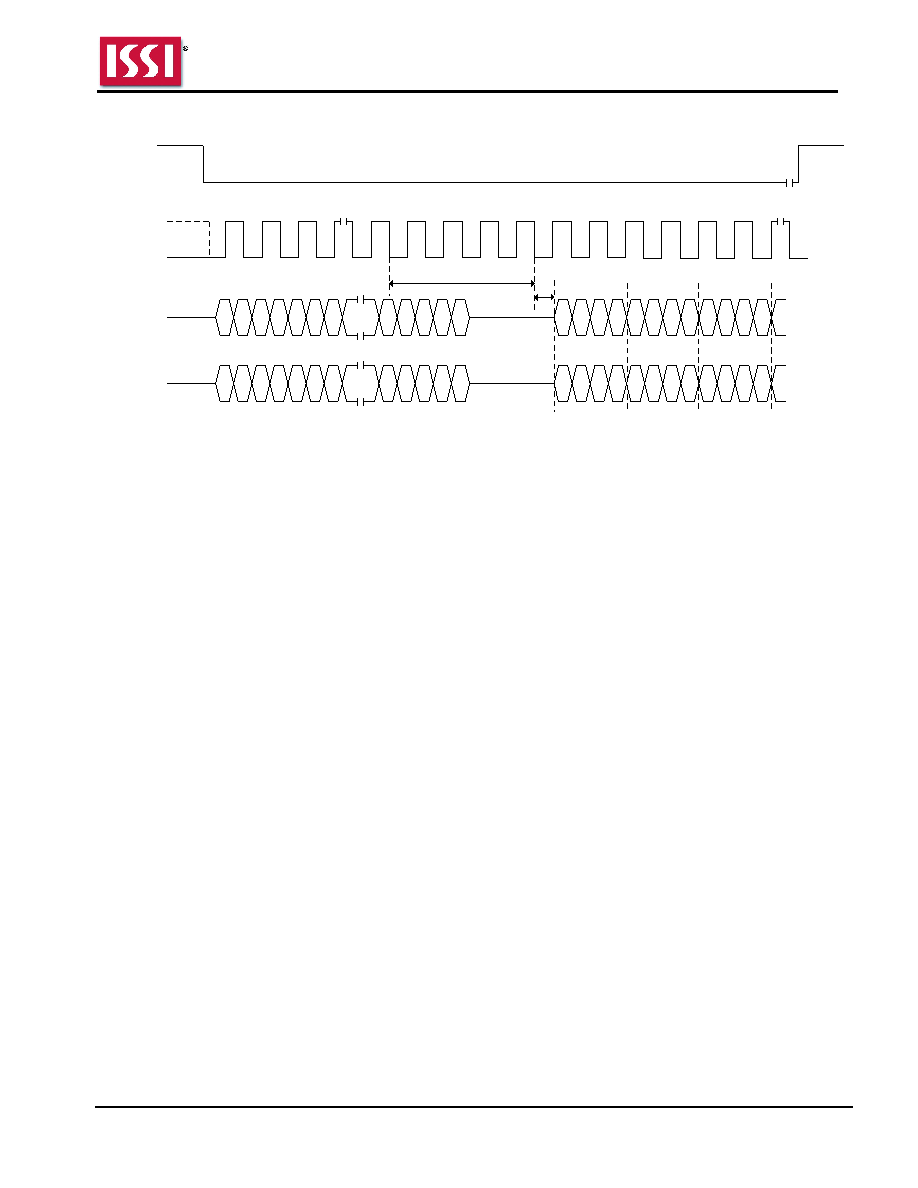

82 / 114 page  IS25LP016D IS25WP016D Integrated Silicon Solution, Inc.- www.issi.com 82 Rev. B10 03/09/2020 Figure 8.66 FRDDTR AX Read Sequence (without command decode cycles) IO0 IO1 3-byte Address ... ... tV 22 20 18 7 5 3 1 7 5 3 1 7 5 3 1 4 Dummy Cycles 23 21 19 ... 6 4 2 0 6 4 2 0 6 4 2 0 Data Out Data Out Data Out 16 14 12 17 15 13 10 11 SCK 0 1 2 ... 6 7 8 9 10 11 12 13 14 15 16 Mode 3 Mode 0 CE # 7 5 3 1 6 4 2 0 0 1 Mode Bits ... ... Notes: 1. If the mode bits=AXh ( where X is don’t care), it will keep executing the AX read mode (without command). When the mode bits are different from AXh, the device exits the AX read operation. 2. Number of dummy cycles depends on clock speed. Detailed information in Table 6.11 Read Dummy Cycles. 3. Sufficient dummy cycles are required to avoid I/O contention. If the number of dummy cycles and AX bit cycles are same, then X should be Hi-Z. |
|
