Part #	WM831-112B-R

Description	MINIATURE HIGH POWER LATCHING RELAY

PDF	3 Pages

Scroll/Zoom	100%

Manufacturer	EVER-WAY [EVER-WAY INDUSTRY COMPANY LIMITED]

Direct Link	http://www.ever-way.biz/

Logo

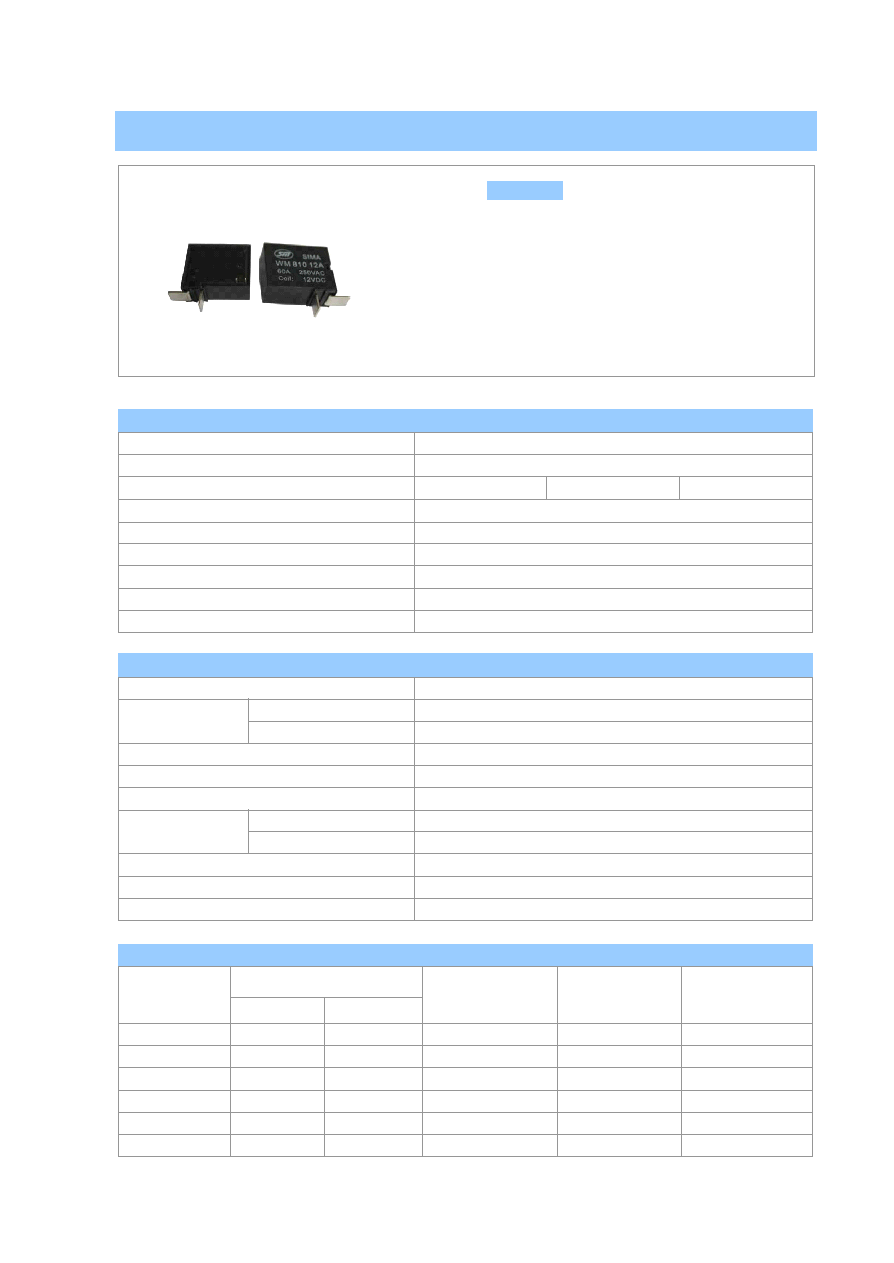

1 / 3 page

1

● 60A switching capability

● Latching relay

● Heavy load up to 15000VA

● 4kV dielectric strength

(between coil and contacts)

● Outline Dimensions: (38.0 x 30.0 x 16.0) mm

Features

WM

WM 810

810

MINIATURE HIGH POWER LATCHING RELAY

■ CONTACT DATA

Contact Form

1A 1B

Contact Material

Silver Alloy

Contact Ratings

60A 250VAC

50A 250VAC

40A 250VAC

Max Switching Voltage

250VAC

Max Switching Current

60A

Max Switching Power

15000VA

Contact Resistance

30MΩ(at 1A 24VDC)

Electrical Life

1X105Ops(30Ops/min)

Mechanical Life

1X106Ops(300Ops/min)

■ GENERAL DATA

Insulation Resistance

1000MΩ 500VDC

Dielectric Strength

Between coil & contacts

4000VAC 1min

Between open contacts

1500VAC 1min

Operate Time

Max. 20ms

Release Time

Max. 20ms

Temperature Range

- 40℃ to +70℃

Shock Resistance

Functional

98m/s2 (10g)

Destructive

980m/s2 (100g)

Vibration Resistance

10 to 55Hz 1.5mm

Humidity

98% RH

Weight

Approx. 33g

■ COIL DATA

Nominal Voltage

(VDC)

Coil Resistance at 20℃ ± 10%(Ω)

Max Operate Voltage

(VDC)

Min Release Voltage

(VDC)

Max Applicate Voltage

(VDC)

1W

(1 coil latching)

2W

(2 coil latching)

5

24

12+12

3.5

0.50

7.0

6

35

17.5+17.5

4.2

0.60

8.4

9

80

40+40

6.3

0.90

12.6

12

145

72+72

8.4

1.20

16.8

24

575

285+285

16.8

2.40

33.8

48

2270

1135+1135

33.6

4.80

67.6
