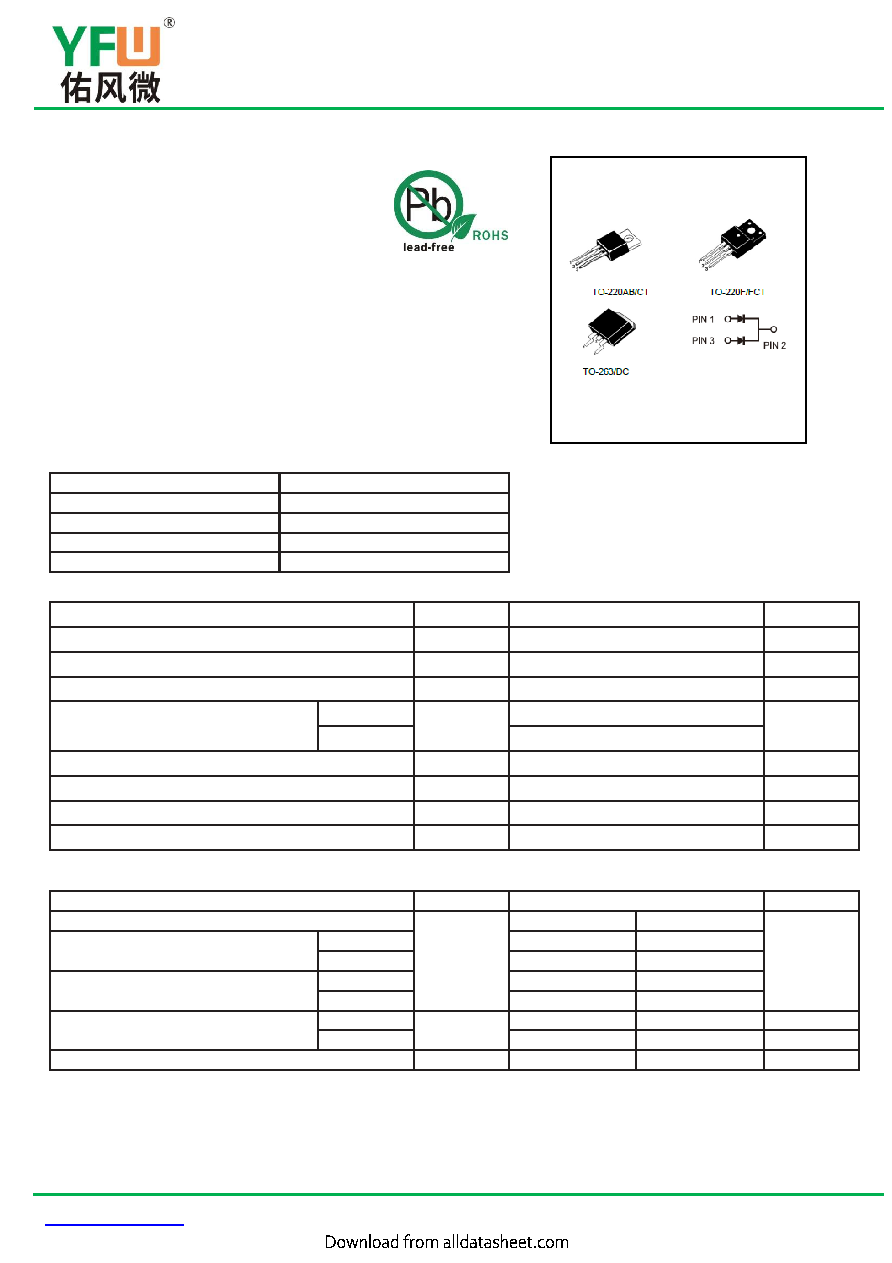

1 / 3 page  MUR1060CT-FCT-DC 1 / 3 www.yfwdiode.com Dongguan YFW Electronics Co, Ltd. ULTRAFST RECOVERY RECTIFIERS Reverse Voltage - 600 V Forward Current - 10 A FEATURES High speed switching capability High current capability High forward surge capability Low power losses，High efficiency For use in low voltage, high frequency inverters Lead free in comply with EU RoHS 2011/65/EU directives MECHANICAL DATA Case: TO-220AB/CT TO-220F/FCT TO-263/DC Solder bath temperature275℃maximum,10s per JESD22-106 Primary Characteristic Io 2*5A VRRM 600V IFSM 90A VF 1.1V TJ Max 150°C Maximum Ratings (Per Leg) at Ta=25°C unless otherwise specified Parameter Symbols Value Units Maximum Repetitive Peak Reverse Voltage VRRM 600 V Maximum RMS voltage VRMS 600 V Maximum DC Blocking Voltage VDC 600 V Maximum Average Forward Rectified Current Per Leg Io 5 A Total 10 Peak Forward Surge Current, 8.3ms Single Half Sine-wave IFSM 90 A Operating Temperature Range TJ 150 °C Storage Temperature Range TSTG -40 ~ +150 °C Typical Thermal Resistance (Note1) TO-220AB/CT TO-220F/FCT TO-263/DC RθJA/ RθJC 2/4 °C/W Note1: Thermal resistance from Junction to case per leg mounted on heatsink. Electrical Characteristics (Per Leg) unless otherwise specified Characteristics Symbols Value Units Forward Voltage Drop(Note2) VF Typ Max V at IF=3A TA=25°C 1.10 - TA=125°C 0.91 - at IF=5A TA=25°C 1.28 - TA=125°C 1.10 - Maximum Reverse Current at VR=600V TA=25°C IR 0.50 1 uA TA=25°C 15 - uA Maximum Reverse Recovery Time at IF=0.5A, IR=1A, IRR=0.25A TRR - 35 nS Note2:Pulse test: 300 μs pulse width, 1 % duty cycle |
