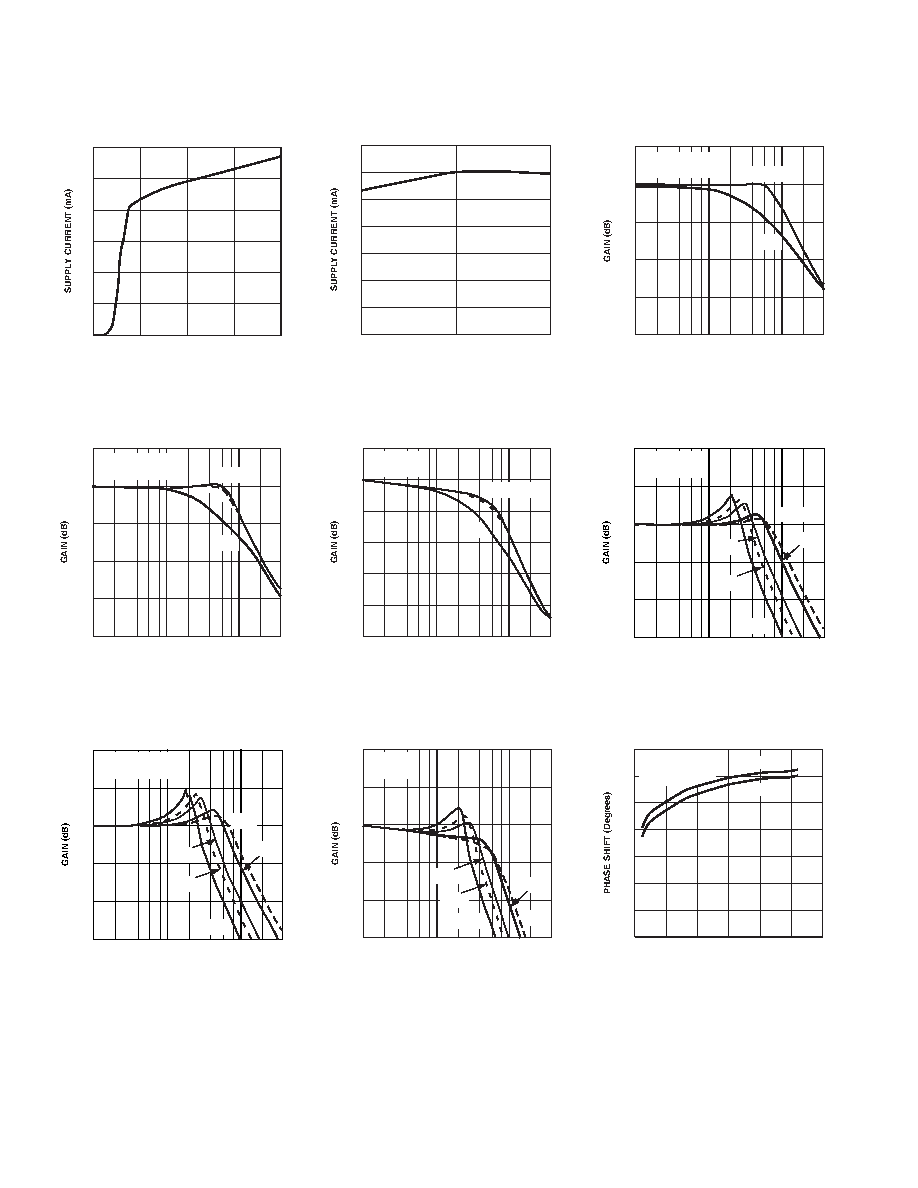

ADD8702–Typical Performance Characteristics
SUPPLY VOLTAGE (V)
12
10
0
04
16
812
8
6
4
2
TA = 25 C
TPC 1. Supply Current vs.
Supply Voltage
FREQUENCY (Hz)
30M
100k
1M
10M
10
0
–20
–30
–40
–10
VDD = 16V
GAMMA 10 TO 12
2k , 10k
150
TPC 4. Frequency Response
vs. Resistive Loading
FREQUENCY (Hz)
30M
100k
1M
10M
20
0
–10
–30
10
VDD = 16V
GAMMA 10 TO 12
50pF
–20
100pF
340pF
540pF
1040pF
TPC 7. Frequency Response
vs. Capacitive Loading
TEMPERATURE ( C)
12
11
5
–40
85
25
8
6
7
10
9
VDD = 16V
TPC 2. Supply Current vs.
Temperature
FREQUENCY (Hz)
30M
100k
1M
10M
10
0
–20
–30
–50
–10
VDD = 16V
VCOM
2k , 10k
150
–40
TPC 5. Frequency Response
vs. Resistive Loading
FREQUENCY (Hz)
30M
100k
1M
10M
20
0
–10
–30
10
VDD = 16V
VCOM
50pF
–20
100pF
340pF
540pF
1040pF
TPC 8. Frequency Response
vs. Capacitive Loading
FREQUENCY (Hz)
100k
30M
1M
10M
10
0
–20
–30
–40
–10
2k , 10k
150
VDD = 16V
GAMMA 1 TO 9
TPC 3. Frequency Response
vs. Resistive Loading
FREQUENCY (Hz)
30M
100k
1M
10M
20
0
–10
–30
10
VDD = 16V
GAMMA 1 TO 9
50pF
–20
100pF
340pF
540pF
1040pF
TPC 6. Frequency Response
vs. Capacitive Loading
CAPACITIVE LOAD (pF)
180
40
0
200
1,200
400
600
800
1,000
160
140
120
80
60
100
VDD = 16V
GAMMA 1 TO 12
RL = 2k
GAMMA 12
GAMMA 1
TPC 9. Input and Output Phase
Shift vs. Capacitive Load
